LED Lighting Assembly And Method Of Lighting For A Merchandise Display
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 22, 2011
app pub date -
Jun 16, 2011
filing date -
Jun 17, 2010
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

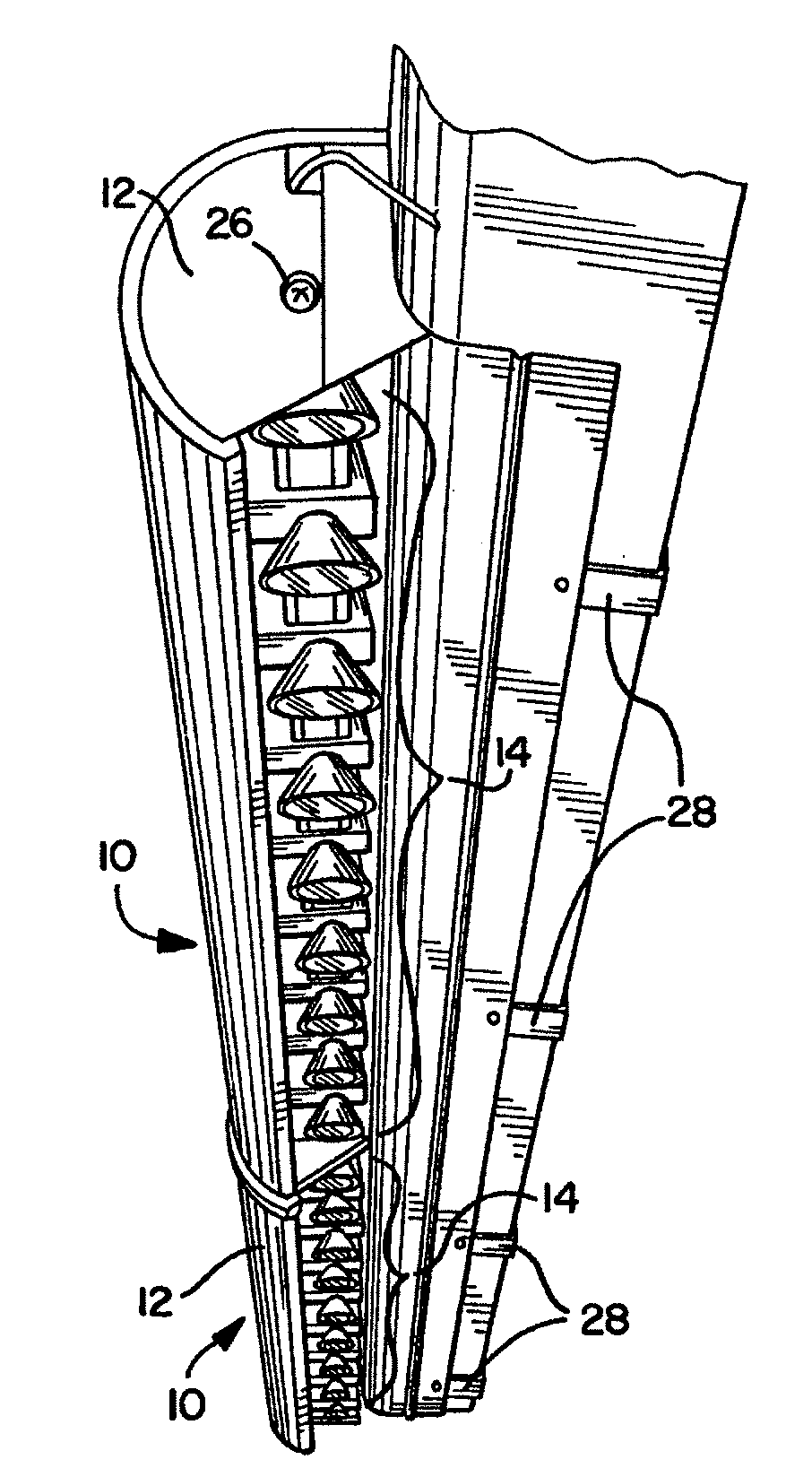

Aspects of the disclosure relate to a lighting assembly and method for illuminating a vertical planar area, such as a merchandise display. The lighting assembly can comprise two opposing support arms and a lighting bar extending between the two opposing support arms, a circuit board having a plurality of LEDs mounted to the inside of the lighting bar; and a plurality of lenses placed over a corresponding one of the plurality of LEDs. The lens may be positioned around every other LED on the lighting bar to capture light from a respective LED, modify the beam pattern, and re-project the light such that the light emitted from the lighting assembly is distributed substantially evenly in a vertical plane or direction.
