Damper Element for Springs and Vehicle Pedal Assembly Incorporating the Same

Number of patents in Portfolio can not be more than 2000

United States of America Patent

APP PUB NO 20110303046A1
SERIAL NO

13154979

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

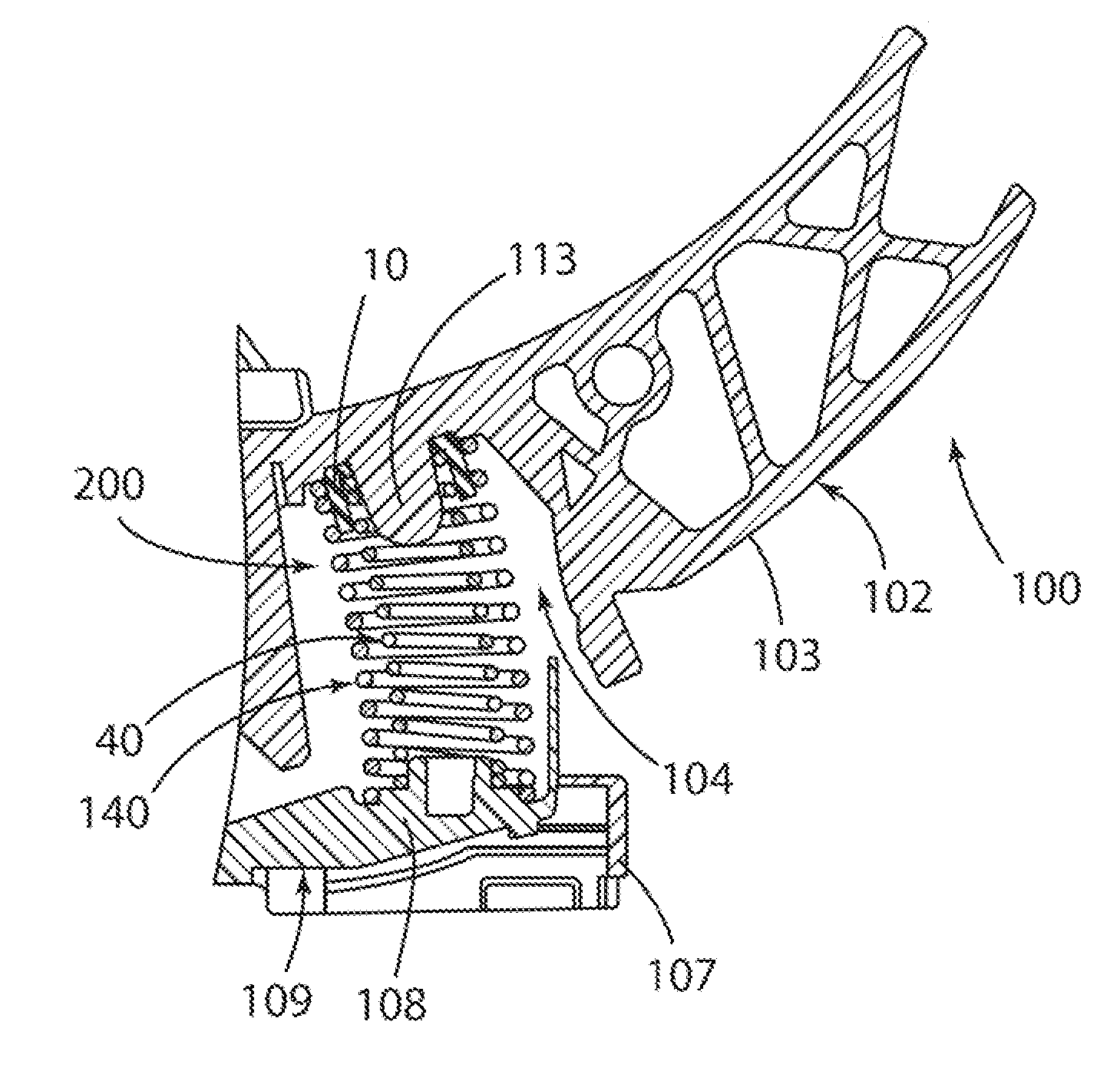

A spring damper element in the form of a cap made of an elastomeric material and adapted to be mounted over the end of a coil spring. In one embodiment, the cap includes a top circumferential wall defining a central opening and a circumferential side wall depending outwardly from a peripheral circumferential edge of the top wall. In one embodiment, the cap is used in a vehicle pedal assembly to eliminate contact and noise between the inner and outer coil springs of a double coil spring assembly extending between the base and the pedal arm. In this embodiment, the top wall of the cap is seated against the top of the end of the inner coil spring and the side wall extends and is wedged between the inner and outer coil springs.
