INTEGRATED CIRCUIT PACKAGING SYSTEM WITH POSTS AND METHOD OF MANUFACTURE THEREOF
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 1, 2011
app pub date -
Jun 1, 2010
filing date -
Jun 1, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Loading Importance Indicators...

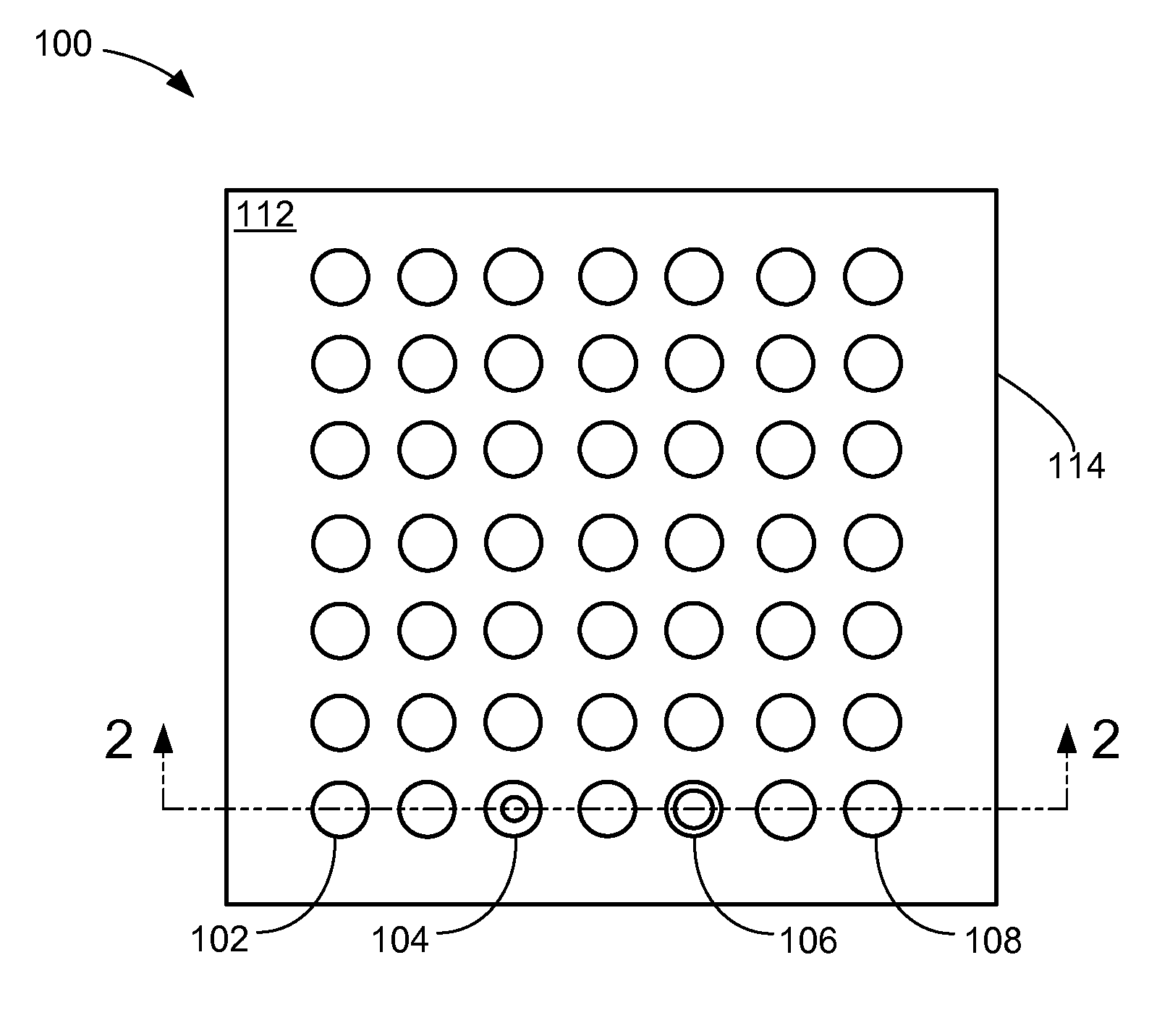

Abstract
A method of manufacture of an integrated circuit packaging system includes: providing a semiconductor wafer having a chip pad; attaching a wafer frame to the semiconductor wafer, the wafer frame having a horizontal cover integral to a protruding connector with the protruding connector on the chip pad; forming an underfill around the protruding connector and between the horizontal cover and the semiconductor wafer; removing the horizontal cover exposing the underfill and the protruding connector; and singulating an integrated circuit package from the semiconductor wafer.
First Claim
Other Claims data not available
