Impedance matched transmission circuit with analog-to-digital converter
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 18, 2012
Issued Date -
N/A
app pub date -
May 24, 2010
filing date -
May 24, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

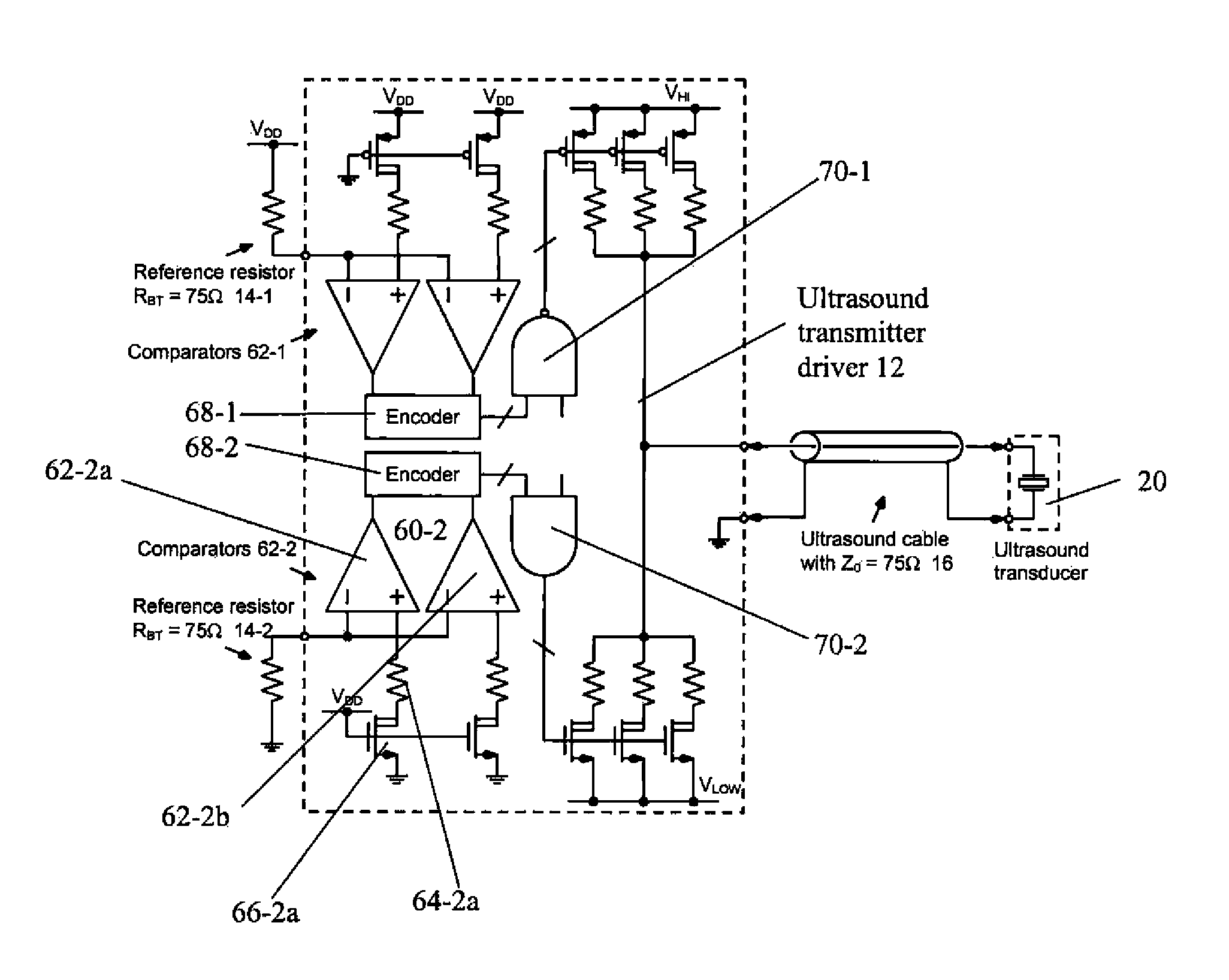

An impedance matching transmission circuit for a transducer has a transmission medium connected to the transducer. A transmitting circuit is connected to the transmission medium with the transmitting circuit terminating in a reference circuit element. The transmitting circuit comprises an analog to digital converter having an analog input connected to the reference circuit element, and having a digital output. A digital to analog converter receives the digital output and generates an analog output signal in response thereto. A driver circuit is connected to the transmission medium and receives the analog output signal and supplies a driver signal to the transmission medium.
