BINDING BACK AND A METHOD FOR PROTECTING THE BINDING EDGE OF A SHEET BLOCK, AS WELL AS A BINDING FORMED FROM THE SHEET BLOCK AND THE BINDING BACK
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 17, 2011
app pub date -
Jan 27, 2010
filing date -
Jan 28, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

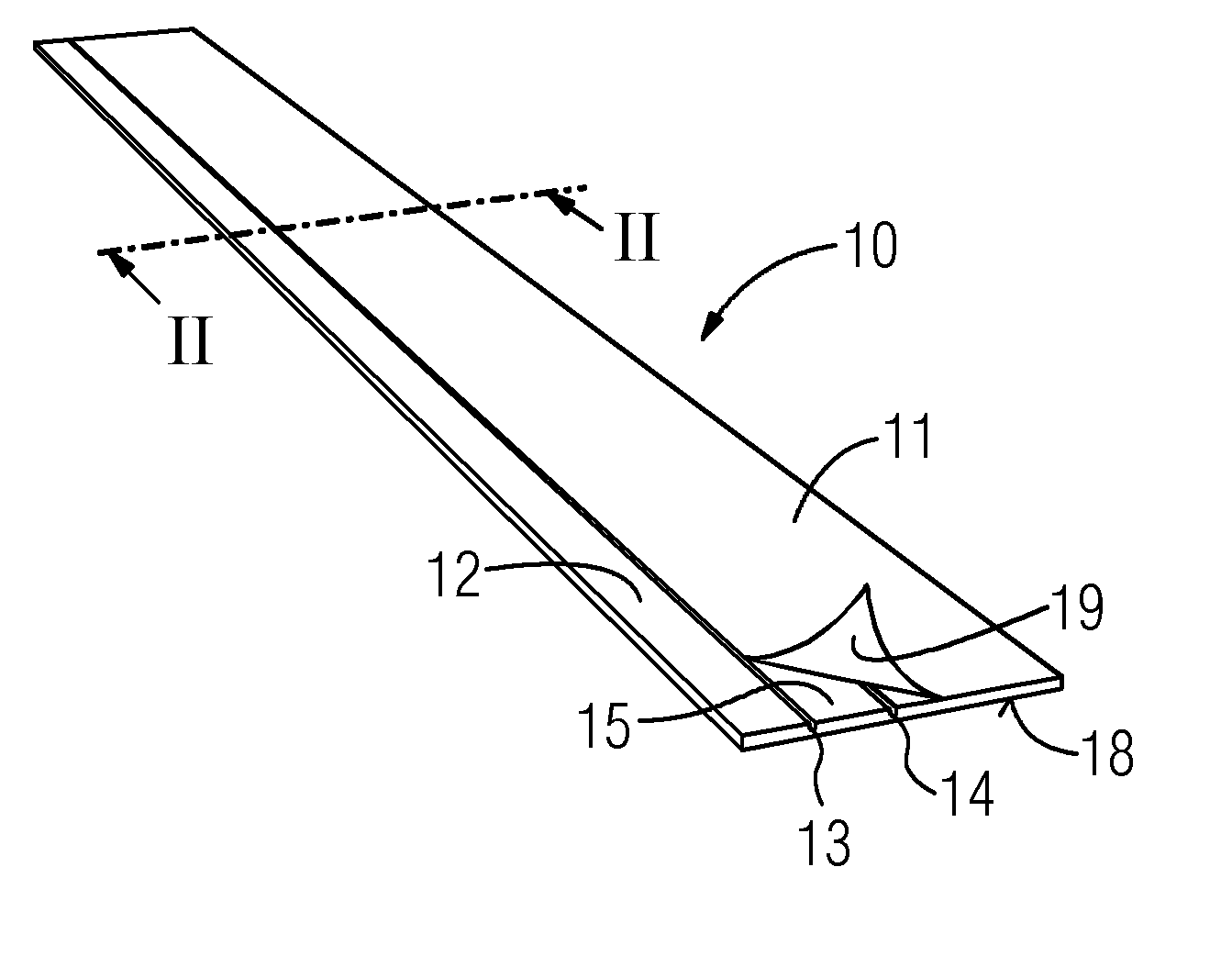

The binding edge (61) of a sheet block (31) is protected by a binding back (10) which is fastened to the binding edge (61) of the sheet block (31) in the area and along the length of a non-adhesive strip (12) in the binding back (10) by using fastening devices (33) such as staples, for example, penetrating through the binding back (10) and the sheet block (31). After this, the free end part (21) of the binding back (10) is folded over the non-adhesive strip (12), in which case the remaining edge (23) of the end part (21) extends to the opposite side of the sheet block (31) over the binding edge (61). After this, the adhesive surface (15) is glued to the side of the sheet block (31) that is opposite the non-adhesive strip (12), in which case the backing piece (18) protects the binding edge (61) of the sheet block (31). An independent claim also for a binding back (10) and a binding.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| EP | B1 | EP2213471 | Jan 28, 2009 |
| WO | A2 | WO2010086752 | Jan 27, 2010 |
International Classification(s)
- 2010 Application Filing Year
- B42D Class
- 166 Applications Filed
- 110 Patents Issued To-Date
- 66.27 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B42D Class
- 4.63 % this patent is cited more than
- 14 Age
