METHOD AND APPARATUS FOR FABRICATION OF STRUCTURES USED IN CONSTRUCTION OF TOWER BASE SUPPORTS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 17, 2011
app pub date -
Jul 22, 2011
filing date -
Jun 13, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

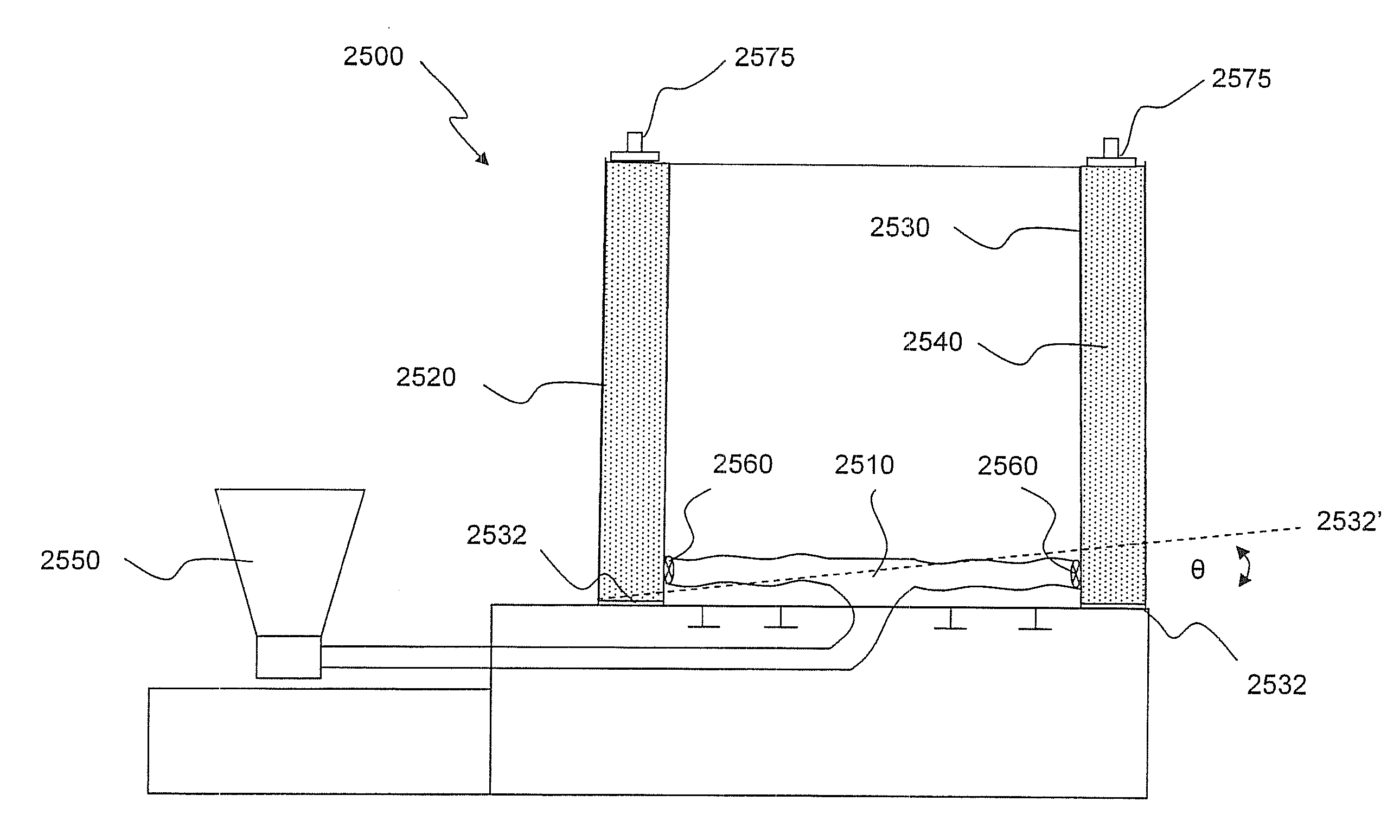

Disclosed are apparatus and corresponding methodologies for providing a base support, such as including concrete, and used such as for a wind-driven generator. Precast concrete cylinders are stacked in place upon a platform that may be partially precast and partially cast in place during assembly and supported, in certain embodiments, by plural concrete legs, the other ends of which are supported on a unitary or subdivided concrete foundation. In other embodiments, the platform may be supported by ribbed concrete panels. The concrete cylinders are glued together using an epoxy and then secured by an internal vertical post tension system extending from the platform to the upper most cylinder. Methodologies and apparatus for fabrication of concrete structure used in constructing the base support are also disclosed, with a focus on staves and various ring piece constructions.
First Claim
Other Claims data not available
