Floatable dry docks
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 1, 2015
Grant Date -
Nov 17, 2011
app pub date -
Nov 17, 2009
filing date -
Nov 18, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

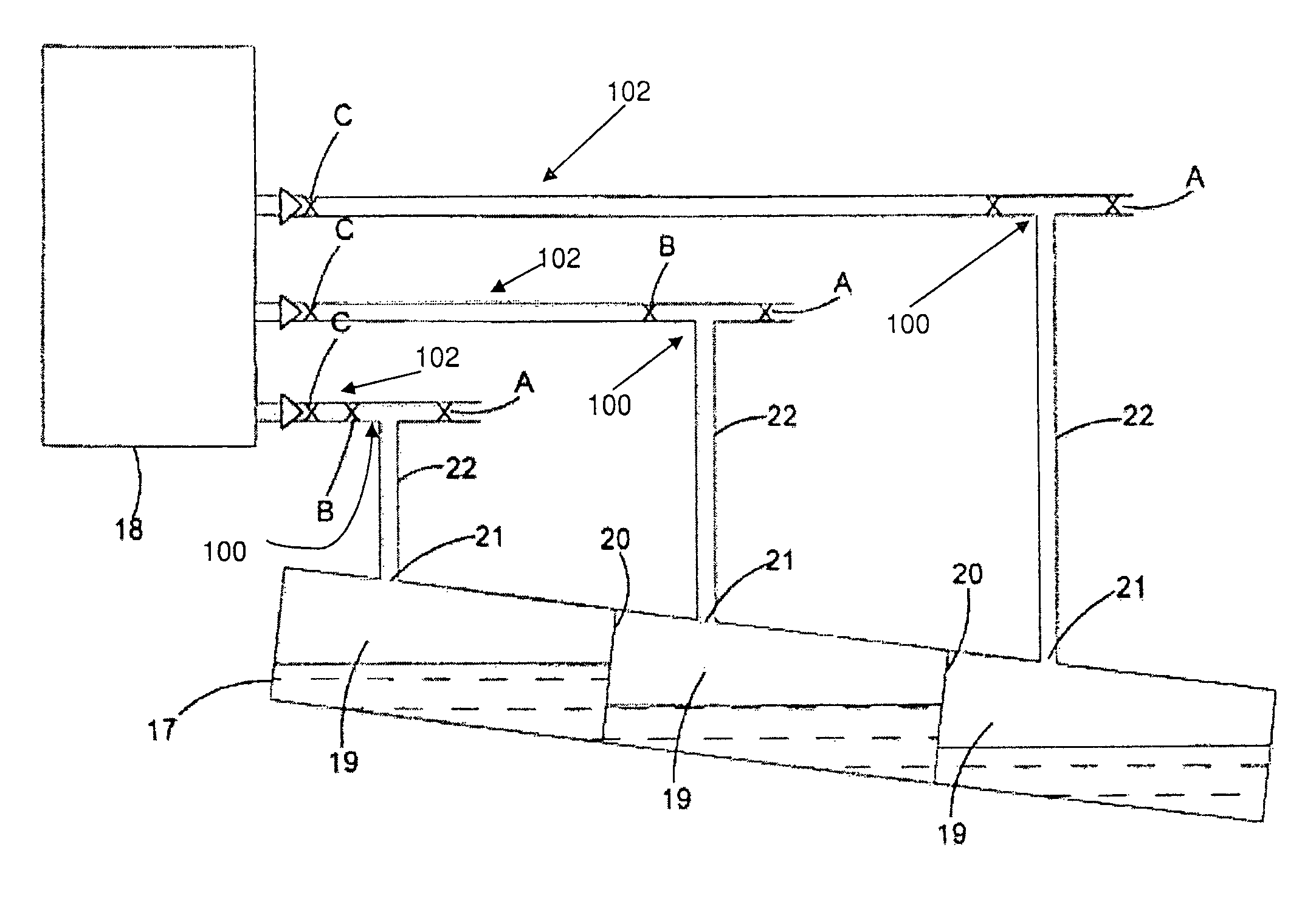

A floating dock including a submersible platform including at least one buoyancy tank wherein the buoyancy tank has a plurality of compartments each of which has a permanently open vent through which water is freely flowable into and out of the compartment and an inlet which enables air to be expelled from the compartment into the atmosphere or enables compressed air to be supplied to the compartment via a non return valve which causes water within the tank to be forced out via the vent, thereby increasing the buoyancy of the tank. The vent does not have any valves associated with it and is permanently open to the sea. As a result the floating dry dock of the present invention may be lowered and raised faster than conventional dry docks which rely on valved vents to control entry and exit of water into and out of their buoyancy tanks.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| GB | D0 | GB0821086 | Nov 18, 2008 |
| EP | B1 | EP2349829 | Nov 17, 2009 |
| MY | A | MY166578 | Nov 17, 2009 |
| WO | A2 | WO2010058156 | Nov 17, 2009 |
International Classification(s)
- 2009 Application Filing Year
- B63C Class
- 69 Applications Filed
- 42 Patents Issued To-Date
- 60.87 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B63C Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 1, 2027 |
