ELECTROSTATIC DISCHARGE CHAIR WITH A GROUNDING DISC
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 3, 2011
app pub date -
Dec 31, 2008
filing date -
Dec 31, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

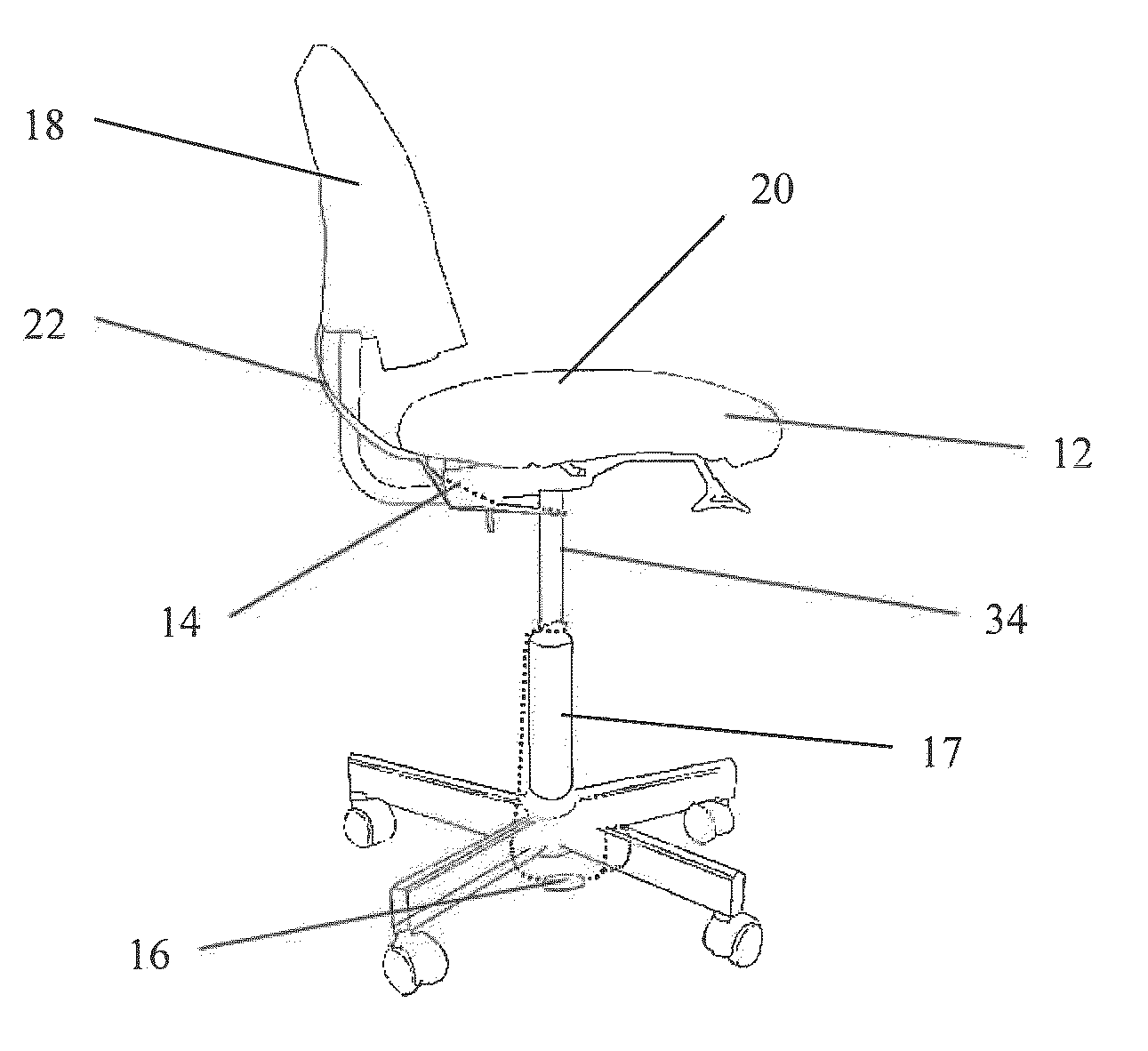

Electrostatic discharge chair with a grounding disc suitable to be used on a swivel chair are described. The accessories comprise a static dissipative chair cover (12), flexible conductive ground loop (14) and grounding means (16). The flexible conductive ground loop (14) have an attaching means (24) attached with two flexible coiled springs, the first spring having an open end (26a) and the second spring having an open tapered (26b) end. The flexible conductive ground loop (14) is attached to chair cover (12) and wrapped around swivel post (34) by screwing one end of the spring into the other to provide a ground path from chair cover to swivel post. The grounding means (16) is attached to swivel post and in contact with ground to provide a ground path from swivel post to ground.
First Claim
Other Claims data not available
