DEVICE AND METHOD FOR CLOSING AT LEAST ONE THIN-WALLED TRANSPORTING CONTAINER WHICH HAS AT LEAST ONE OPENING AND IS INTENDED FOR ITEMS OF VALUE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 27, 2011
app pub date -
Dec 8, 2009
filing date -
Dec 10, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

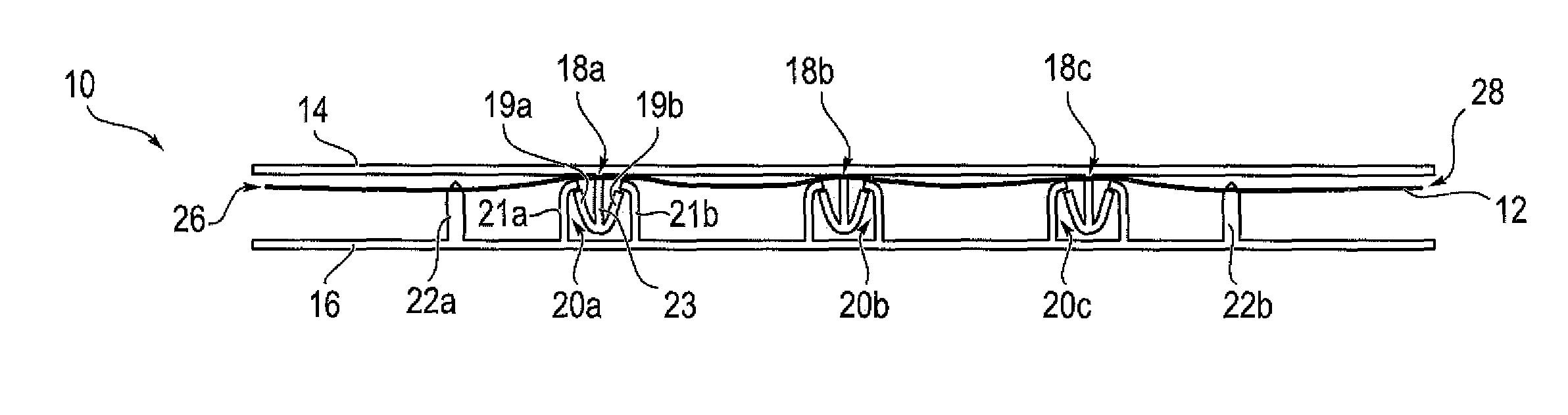

The invention relates to a device (10, 30, 40, 50, 60) for closing at least one thin-walled transport container (12) for articles of value, said transport container having at least one opening. The device (10, 30, 40, 50) has at least one first closing element (14) and a second closing element (16) arranged at a distance to the first closing element (14). The first closing element (14) comprises at least one first snap-in element (18a to 18c) and the second closing element (16) comprises at least one second snap-in element (20a to 20c) that is complementary to the first snap-in element (18a to 18c). The first closing element (14) and the second closing element (16) are arranged such that at least a part of the opening of the transport container (12) opened for feeding the articles of value can be arranged between the first closing element (14) and the second closing element (16) and that by a movement of at least one closing element (14, 16) with a part of the transport container (12) arranged between the closing elements (14, 16) a snap-in connection between the first snap-in element (18a to 18c) and the second snap-in element (20a to 20c) can be formed. Further, the invention relates to a method for closing at least one thin-walled transport container (12).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B65D Class
- 0 % this patent is cited more than
- 14 Age
