RING GENERATOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Sep 29, 2009
filing date -
Oct 8, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

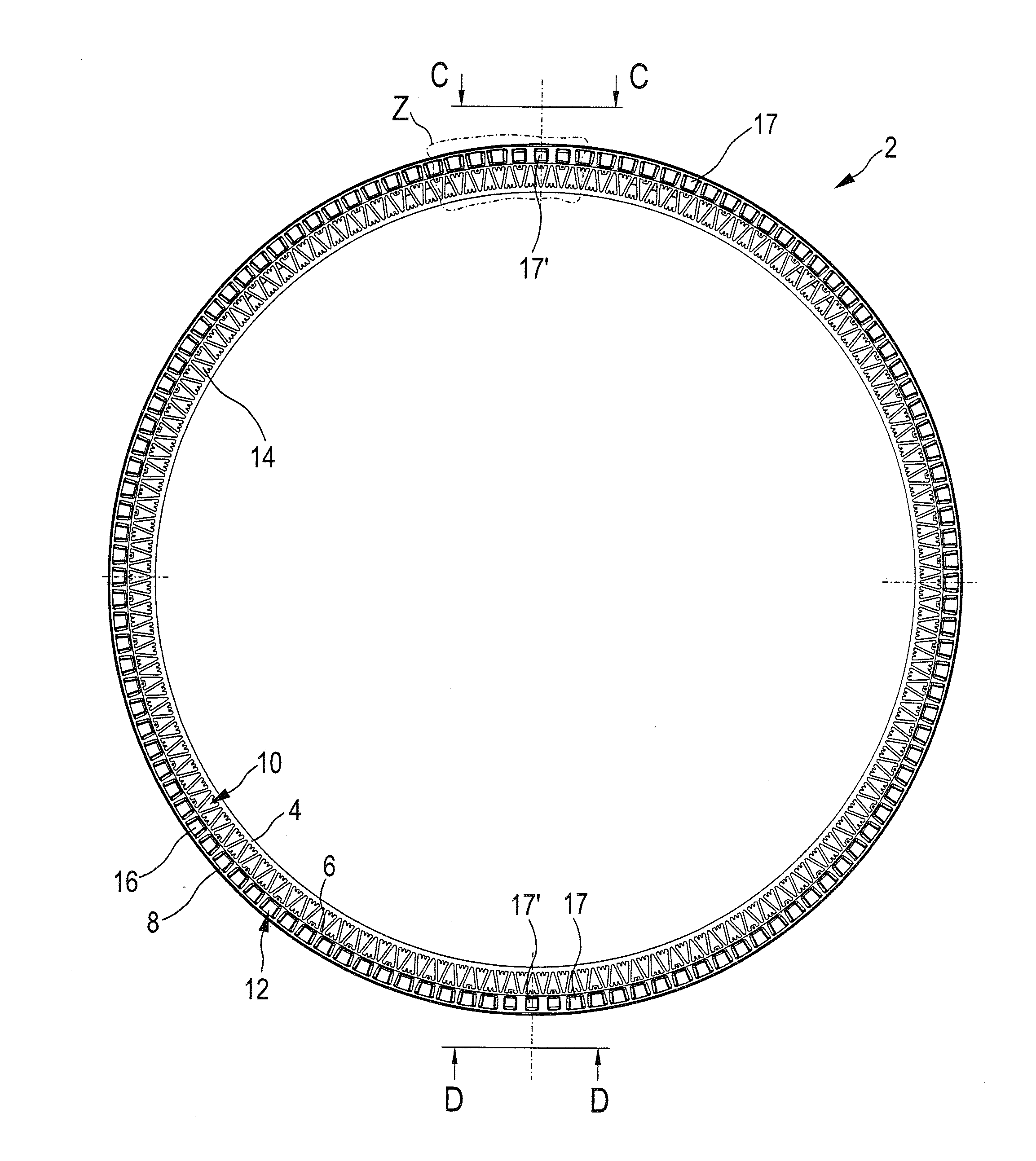

A ring generator of a wind power installation is provided comprising a stator having a peripherally extending stator ring for receiving stator windings and a rotor mounted rotatably about an axis of rotation relative to the stator, wherein the stator ring has cooling passages for cooling the stator by an air flow. A ring generator of a wind power installation is also provided having a stator, a peripherally extending stator ring for receiving stator windings, a rotor mounted rotatably relative to the stator and a stator bell connected to the stator ring for providing a pressure chamber with an increased or reduced pressure for providing an air flow through and/or along the stator and/or rotor for cooling the ring generator, wherein the stator bell has at least one fan opening provided with a fan.
First Claim
Other Claims data not available
