PORTABLE SAW TABLE ASSEMBLY
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Apr 19, 2011
filing date -
May 30, 2002
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

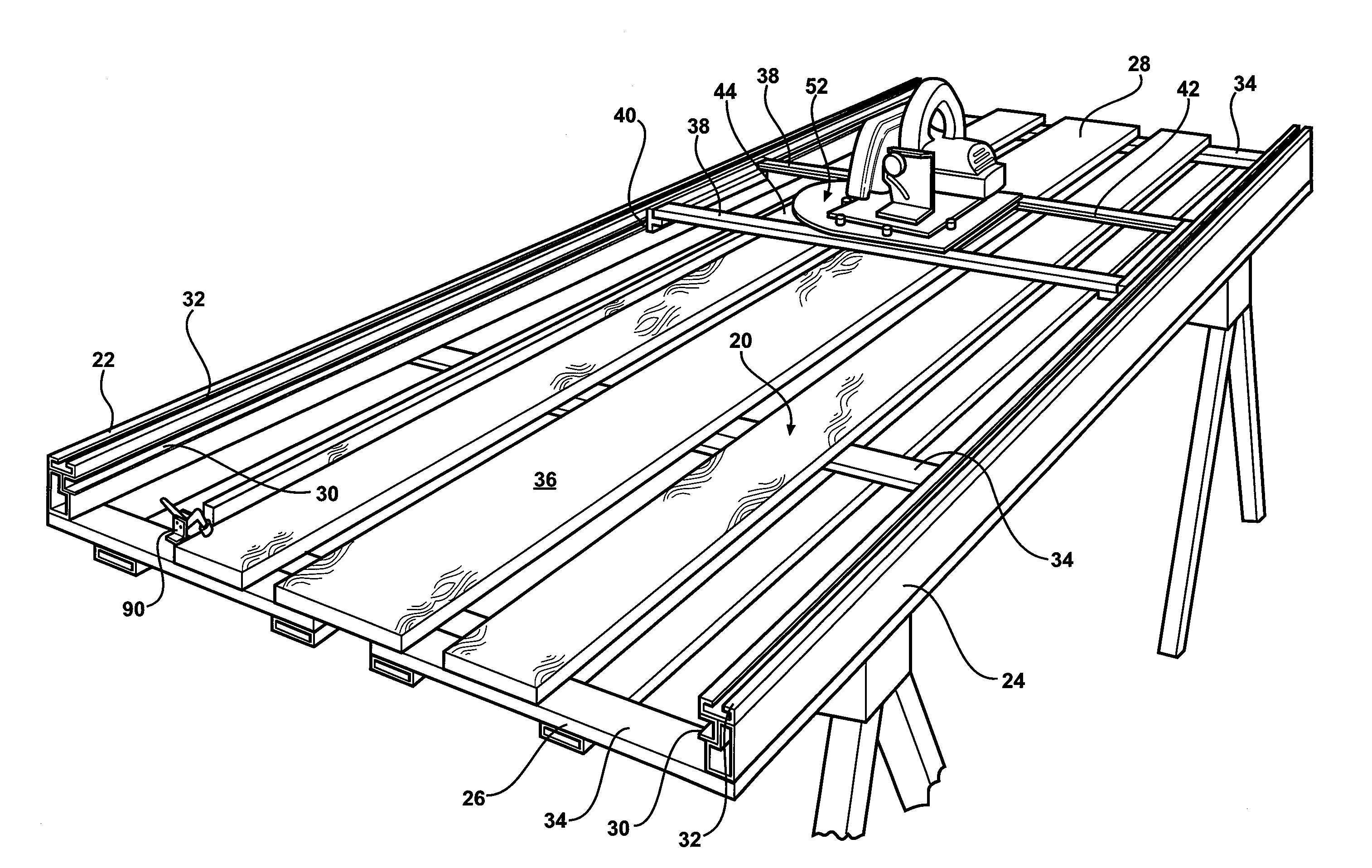

The subject invention provides a portable saw table assembly for cutting a material longitudinally, laterally, and at various angles thereto. The assembly includes a first and a second table rail being parallel and spaced from each other and each extending between a proximal end and a distal end. A saw rail is moveably supported by the first and the second table rails for moving longitudinally along the table rails between the proximal and the distal ends and a mounting plate is moveably supported by the saw rails to allow movement of the mounting plate laterally along the saw rail between the first table rail and the second table rail. A saw plate is rotatably supported by the mounting plate for carrying a saw to cut the material. A guide bar is disposed diagonally relative to the first and the second table rails and engages the saw plate to guide the saw plate diagonally in response to simultaneous movement of the saw rail longitudinally and the mounting plate laterally.
First Claim
Other Claims data not available
