Electromagnetic fuel injector for gaseous fuels with anti-wear stop device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 16, 2012
Grant Date -
Oct 20, 2011
app pub date -
Apr 19, 2011
filing date -
Apr 23, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

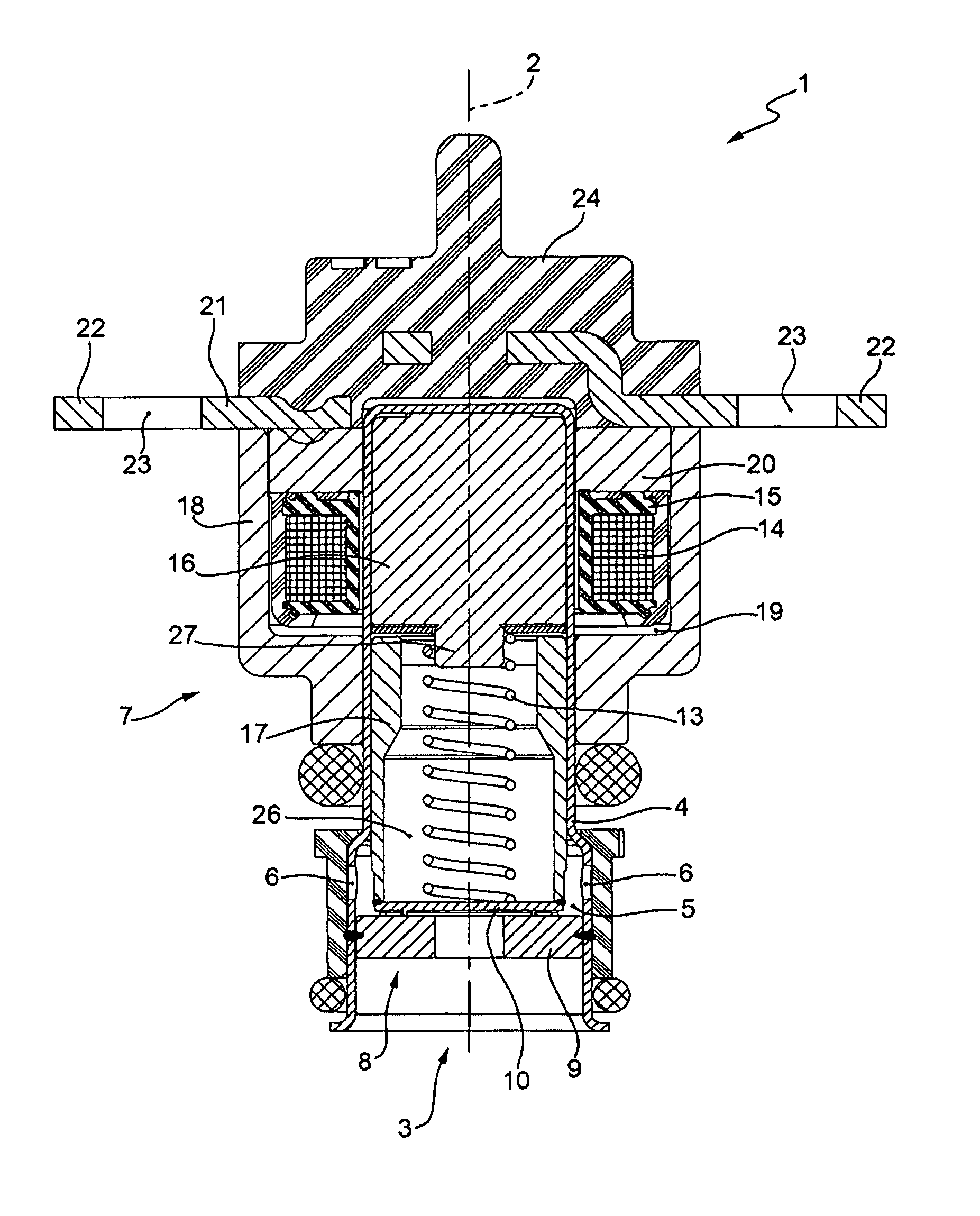

Electromagnetic fuel injector for gaseous fuels comprising: an injection nozzle controlled by an injection valve; a movable shutter to regulate the flow of fuel through the injection valve; an electromagnetic actuator, which is suitable to move the shutter between a closed position and an open position of the injection valve and comprises a fixed magnetic pole, a coil suitable to induce a magnetic flux in the magnetic pole, and a movable anchor suitable to be magnetically attracted by the magnetic pole; an absorption element, which is made of an amagnetic elastic material and is arranged between the magnetic pole and the anchor; and a protective element, which is made of a magnetic metal material having high surface hardness and is interposed between the absorption element and the anchor.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F02M Class
- 4.45 % this patent is cited more than
- 13 Age
