Air jet sieve device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 25, 2014
Grant Date -
Oct 20, 2011
app pub date -
Apr 15, 2011
filing date -
Apr 17, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

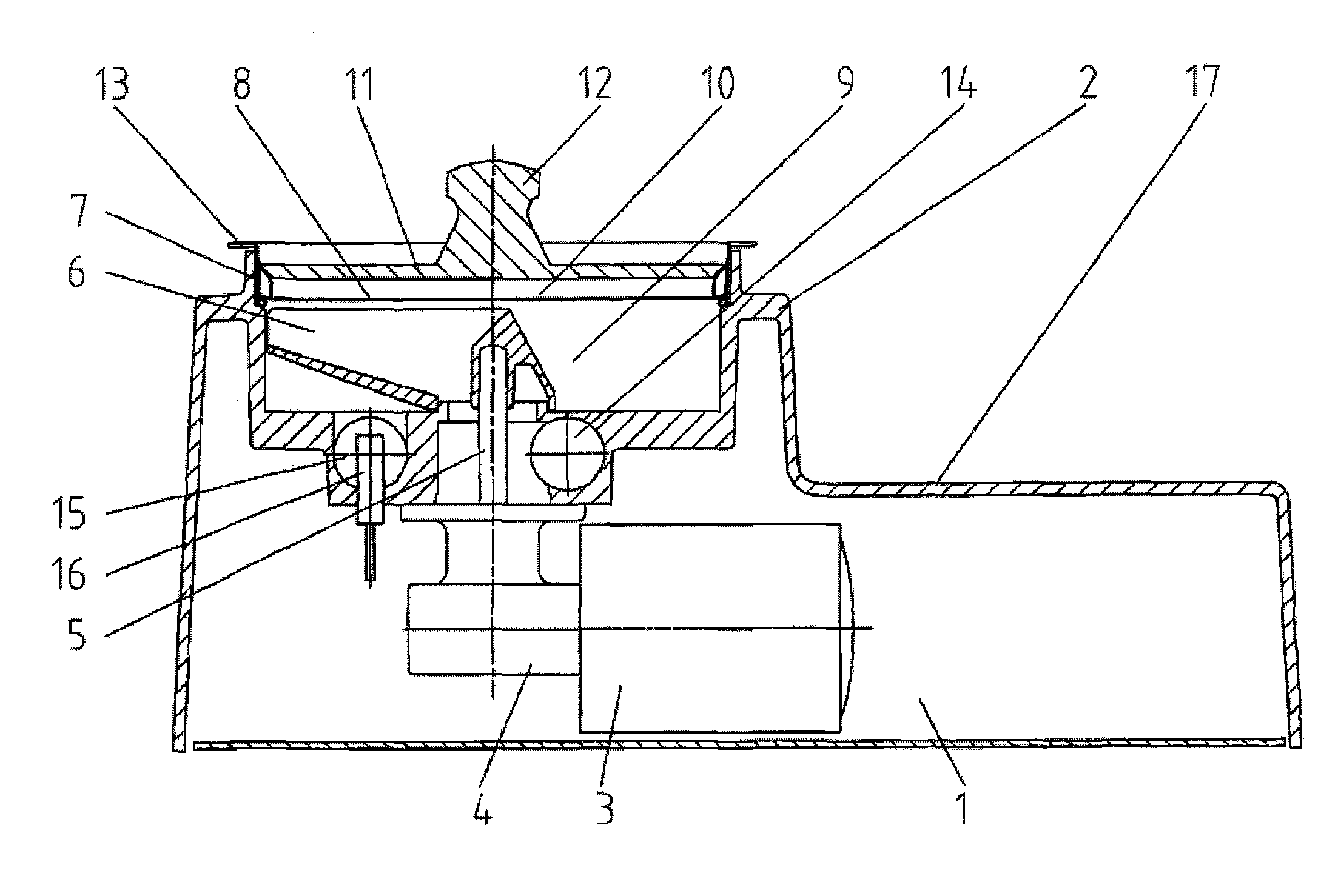

The invention relates to an air jet sieve device having a housing, at least one sieve for insertion in the housing, a sieve deck and chamber located below the sieve, a slotted nozzle beneath the sieve deck, a drive for the slotted nozzle, an air inlet to the slotted nozzle, an air outlet through the housing and out of the chamber located beneath the sieve deck, and a control unit to control operation of the device. The invention also relates to a method that permits not only detection of the sieving progress during a sieving process but also provides a criterion to permit establishing the sieving time. This is achieved by equipping the sieving machine with a measuring sensor through which the particles in the air outlet flow are detected triboelectrically and which are correlated with the sieving progress to permit establishing the sieving time.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- B07B Class
- 113 Applications Filed
- 81 Patents Issued To-Date
- 71.69 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- B07B Class
- 15.53 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 25, 2025 |
