IMAGING APPARATUS FOR FULLY AUTOMATIC SCREEN PRINTER
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jun 7, 2011
filing date -
Nov 30, 2006
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

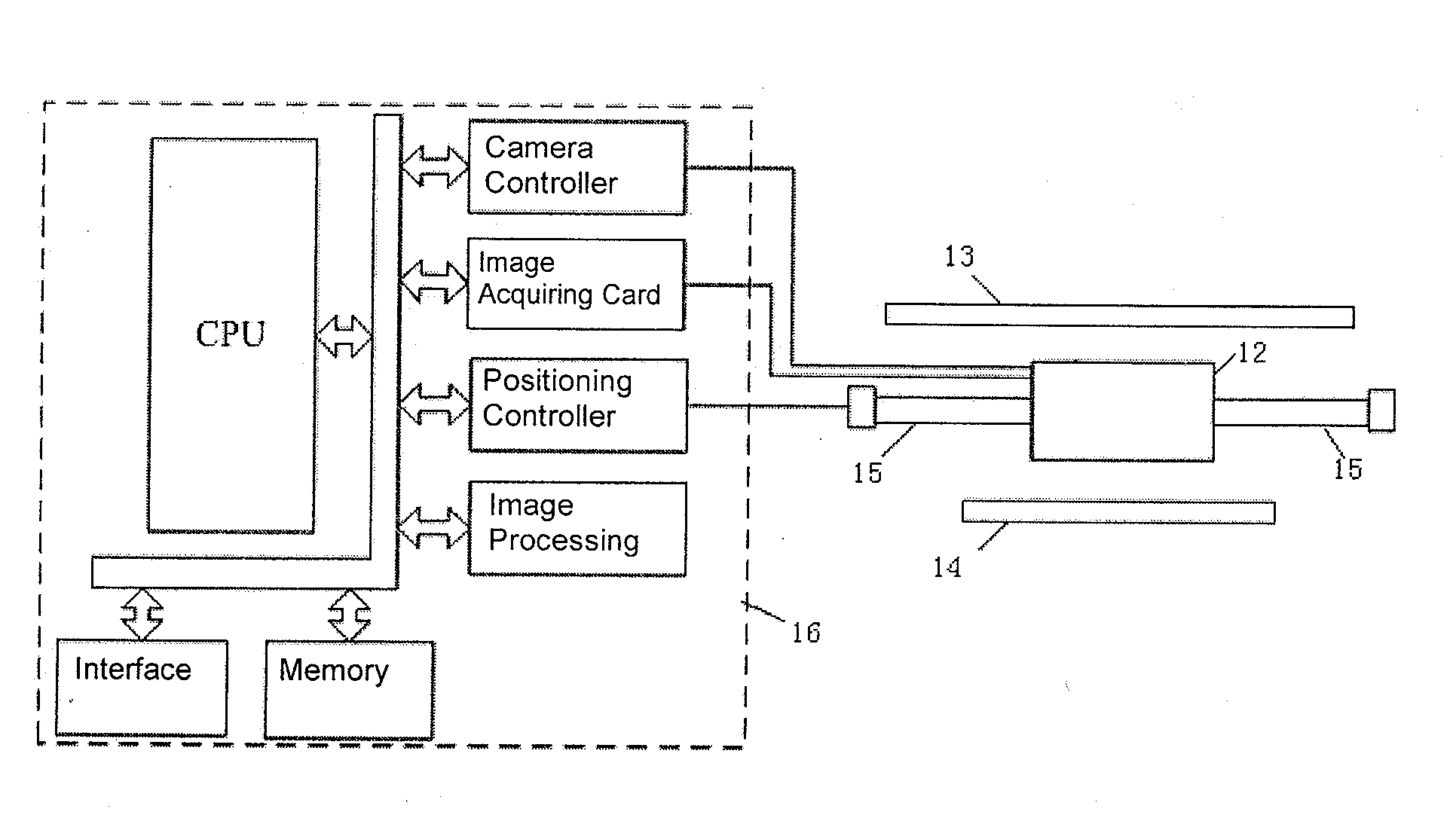

An imaging apparatus for fully automatic screen printer including two stacked light sources, two stacked beamsplitters, two stacked optical reflectors, two stacked imaging lens and two stacked image sensors, wherein the two stacked optical reflectors and the two stacked light sources are correspondingly disposed on two different sides of the two beamsplitters, the two stacked imaging lens are disposed on another side of the beamsplitters different from that of the optical reflectors and the light sources, the two stacked image sensors are disposed behind the imaging lens; the optical reflectors are provided with an upward reflection plane and a downward reflection plane, the optical axes of the imaging lenses are orthogonal to that of the light sources. The imaging apparatus is of two independent optical paths which capture the image of the printed circuit board and that of the screen respectively. Furthermore, the imaging apparatus is of compact structure, high acquiring speed and optical paths easy to be adjusted.
First Claim
Other Claims data not available
