INTEGRAL, FRAME-MOUNTED LASER AIMING DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 29, 2011
app pub date -
Mar 29, 2011
filing date -
Mar 29, 2010
priority date (Note) -
Abandoned
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

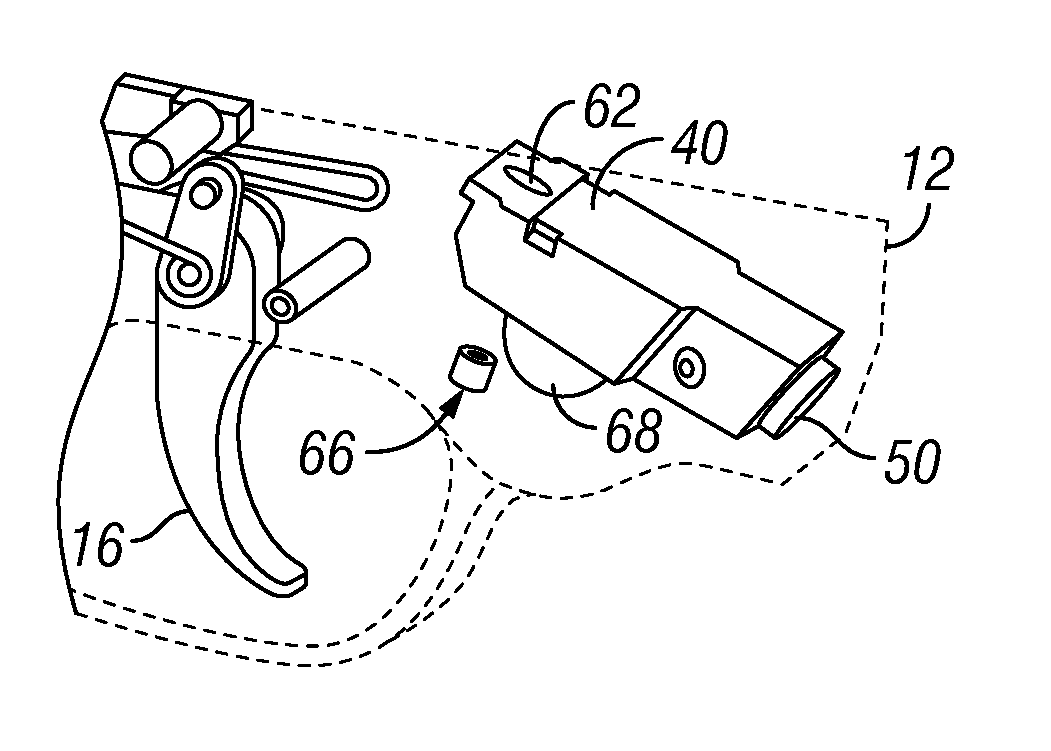

A light emitting apparatus that is installed in an inner recess defined by a lower muzzle portion of a frame of a firearm. The light emitting apparatus is accessible through pass-through holes or openings formed in the lower muzzle portion of the frame. For instance, the light emitting apparatus includes a laser aiming device that emits light through a first opening defined below a barrel of the firearm; activation switches accessible through second openings defined in each side of the frame. The laser aiming device is retained in the inner recess by a hold down screw inserted through a bore therein and into a threaded insert disposed in the bottom surface of the inner recess.
