PLASMA LAMP WITH CONDUCTIVE MATERIAL POSITIONED RELATIVE TO RF FEED
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Feb 14, 2011
filing date -
Oct 27, 2005
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

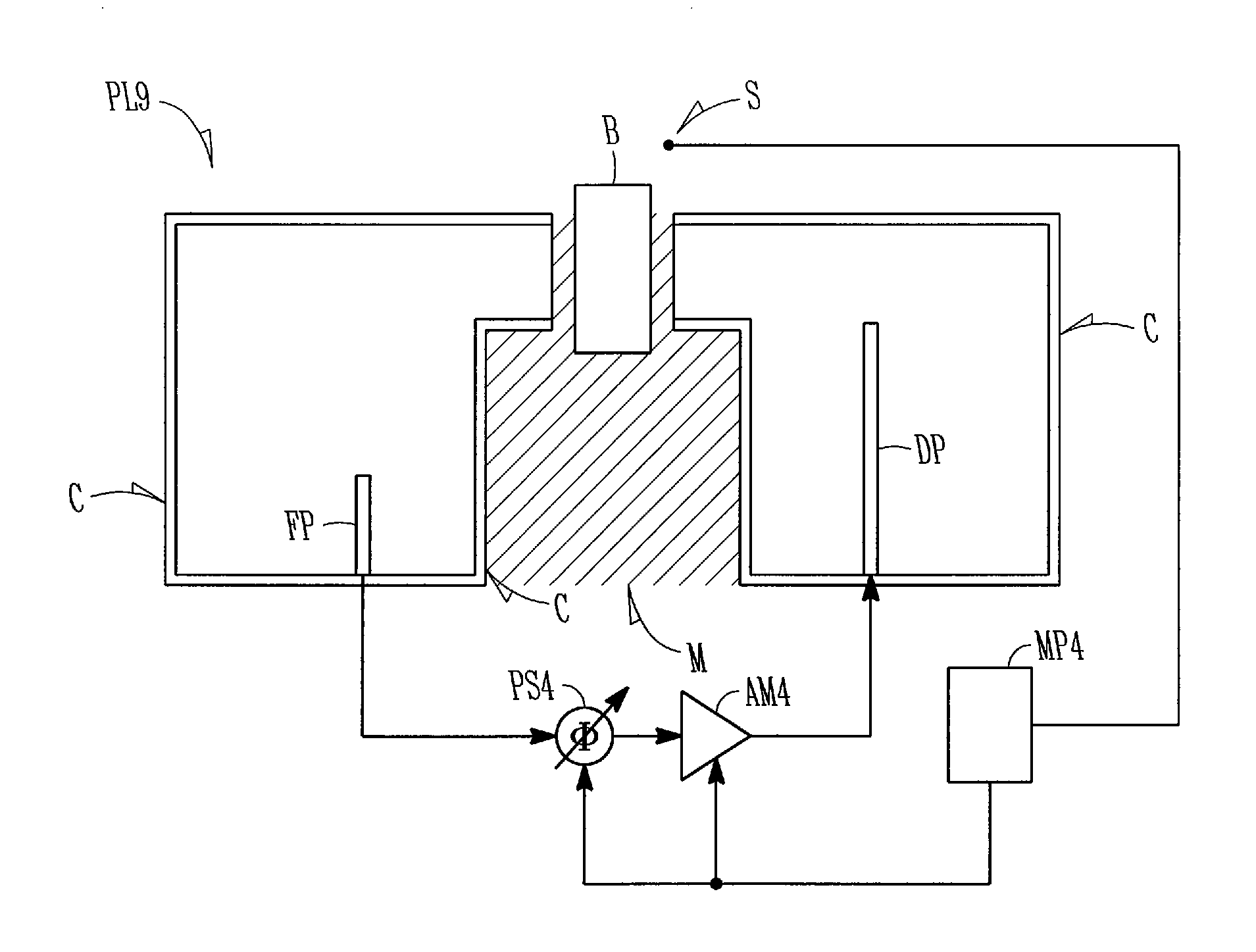

In an example embodiment, an electrodeless plasma lamp is provided which comprises a lamp body comprising a dielectric material having a relative permittivity greater than 2, and a bulb adjacent to the lamp body, the bulb containing a fill that forms a plasma when RF power is coupled to the fill from the lamp body. An RF feed is coupled to the lamp body and a radio frequency (RF) power source for coupling power into the lamp body through the RF feed is provided. A shortest distance between an end of the bulb and a point on the RF feed traverses at least one electrically conductive material of the lamp body.
First Claim
Other Claims data not available
