Ambidextrous cam style charging handle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Dec 8, 2010
filing date -
Jul 10, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

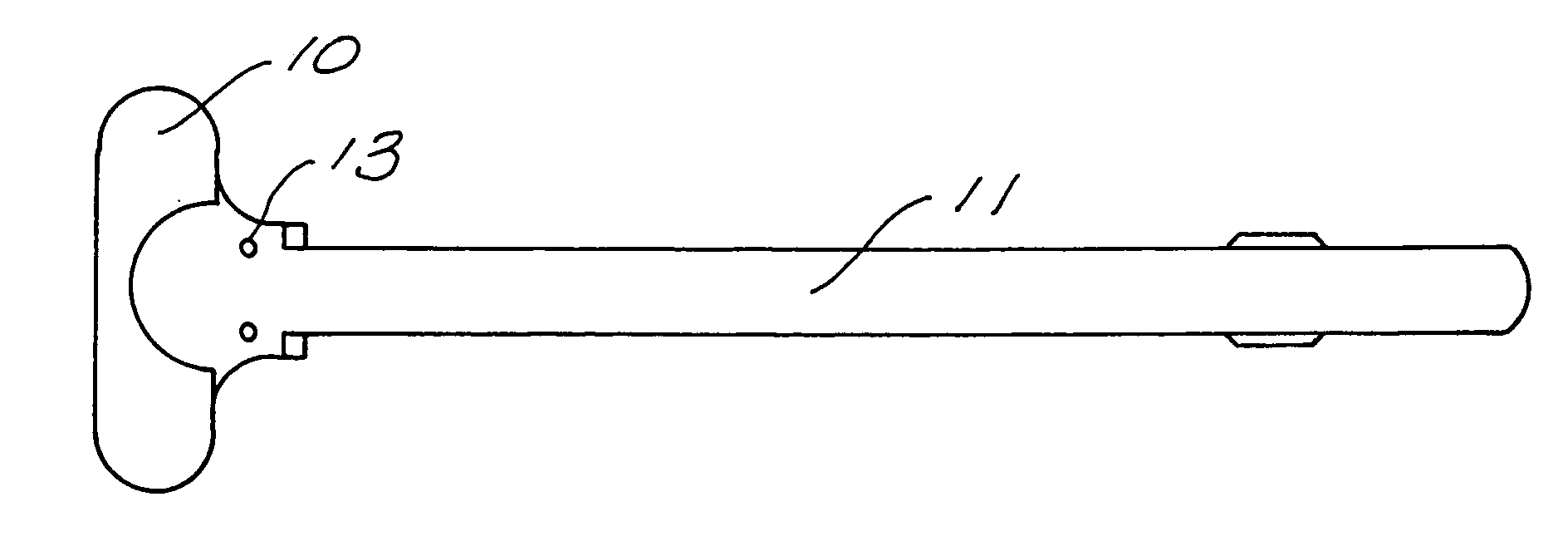

An action mechanism together with a charging handle for a firearm in which the charging handle is configured to be used by either a right handed user or a left handed user. The rod member has one end configured to engage the action mechanism such that a rearward movement of the rod member causes the action to accept a bullet and place the bullet in position to be fired. At the opposing end is a handle which uses two rotationally mounted levers, one lever able to be worked independent of the other. The second lever, when worked, engaging the first lever to move the rod into an unlocked condition.
First Claim
Other Claims data not available
