DEVICE FOR AUTOMATICALLY UNLOCKING AN OPENABLE PANEL OF A MOTOR VEHICLE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 1, 2011
app pub date -
Oct 1, 2009
filing date -
Oct 1, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

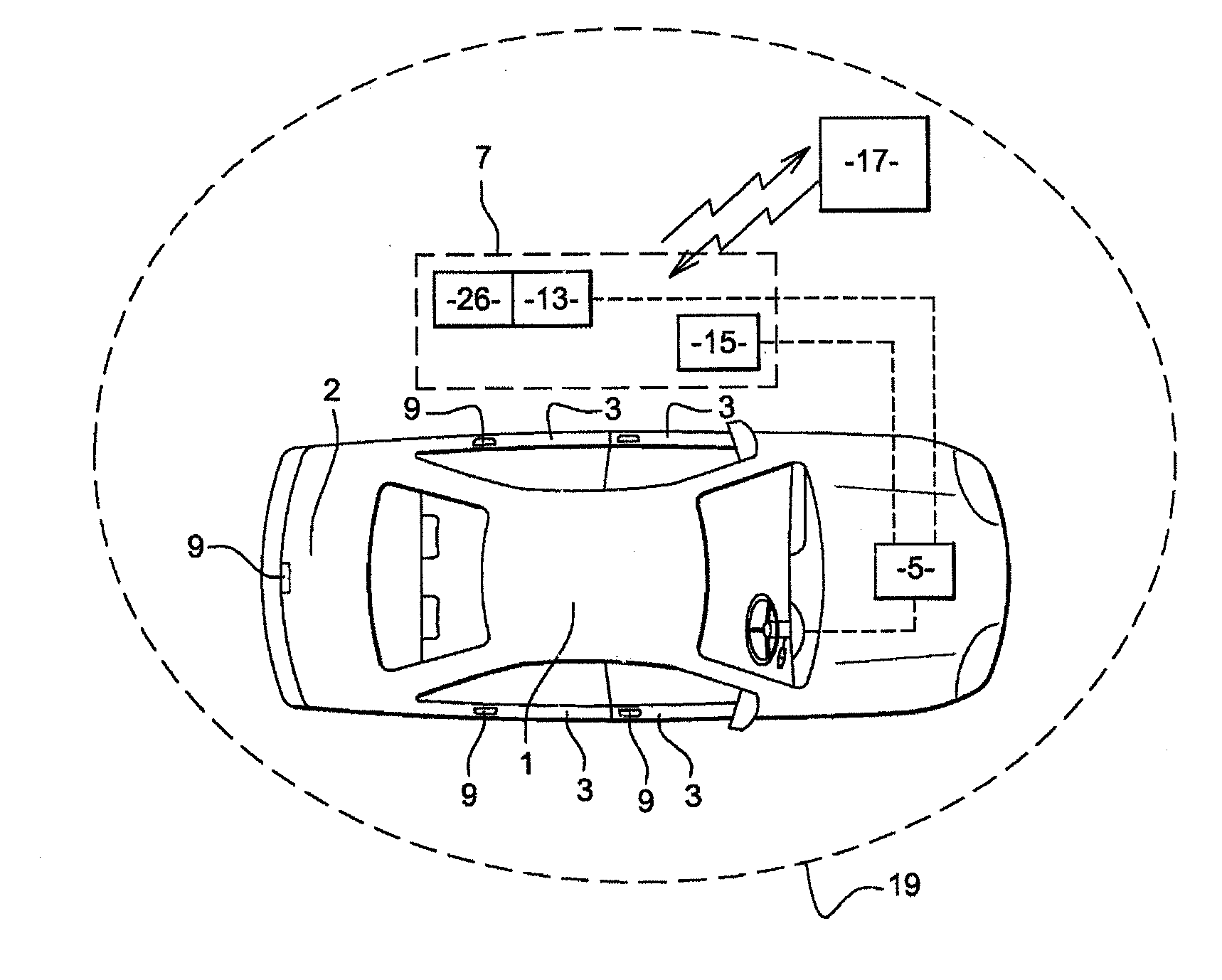

The present invention relates to a device for automatically locking and/or unlocking at least one openable panel (3) of a motor vehicle (1) comprising a remote-opening system (4) comprising a central processing unit (5) designed to be installed inside the vehicle, and a portable identification element (17), said central processing unit (5) being capable of authenticating by radiofrequency the portable identification element (17). Said device further comprises means (13) for the remote optical recognition of a predetermined movement of part of the body for locking and/or unlocking said openable panel or panels in front of which the movement has been executed in the event of positive recognition of the movement and in that the central processing unit comprises activation means (11) for activating said remote optical recognition means (13) when the portable identification element (17) is located within a predefined perimeter (19) around the vehicle (1).
First Claim
Other Claims data not available
