DEEP EUTECTIC SOLVENTS AND APPLICATIONS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 25, 2011
app pub date -
Apr 29, 2011
filing date -
Mar 26, 2008
priority date (Note) -
Abandoned
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

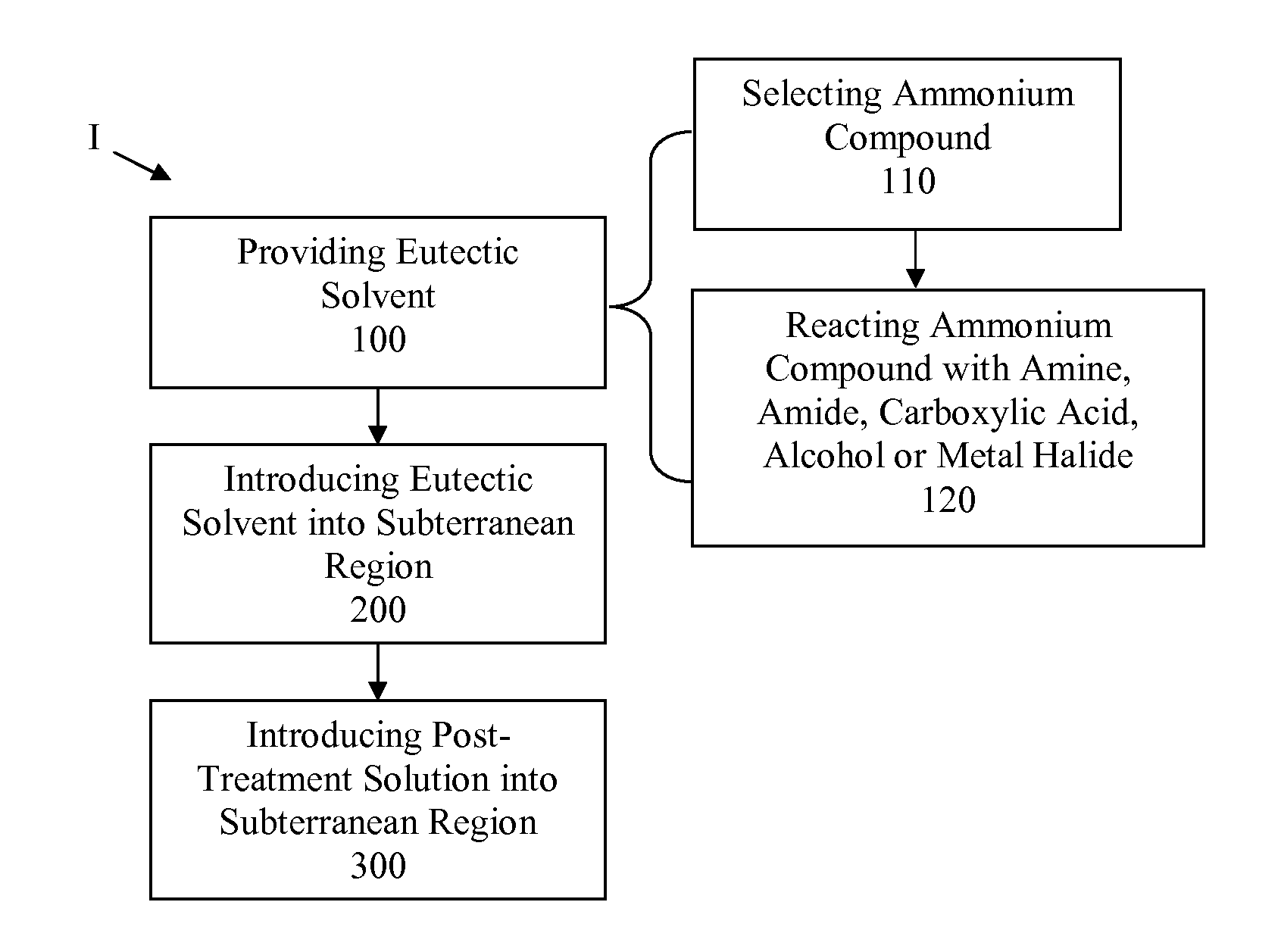

A method of solubilizing/removing cellulose or chemically-modified cellulosic polymers utilized in subterranean drilling operations such as fracturing. The method involves introducing a deep eutectic solvent (DES) into a subterranean region. Deep eutectic solvents useful as cellulose solvents include quaternary ammonium compounds, including choline chloride and chlorcholine chloride, reacted with a compound selected from amides, amines, carboxylic acids alcohols, and metal halides. The DES material can be pumped downhole after fracturing operations to remove cellulosic material used, for example, to thicken fracturing fluid which is left behind in the created fractures, on the face of the formation, along the wellbore, or elsewhere within the subterranean region. The DES can be used alone or in a sequential treatment protocol, whereby the DES is introduced into the subterranean region, followed by post-treatment introduction of water, caustic, acid or anhydride into the subterranean as a flush.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
SHRIEVE CHEMICAL PRODUCTS INC | 1755 WOODSTEAD COURT THE WOODLANDS TX 77380-1448 |
International Classification(s)

- 2011 Application Filing Year
- C09K Class
- 1857 Applications Filed
- 1322 Patents Issued To-Date
- 71.20 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
MILLER, Richard F | Humble, US | 52 | 529 |
# of filed Patents : 52 Total Citations : 529 |
