ENDCAP FOR WHEEL BEARING ASSEMBLY
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 25, 2011
app pub date -
Oct 29, 2009
filing date -
Oct 30, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

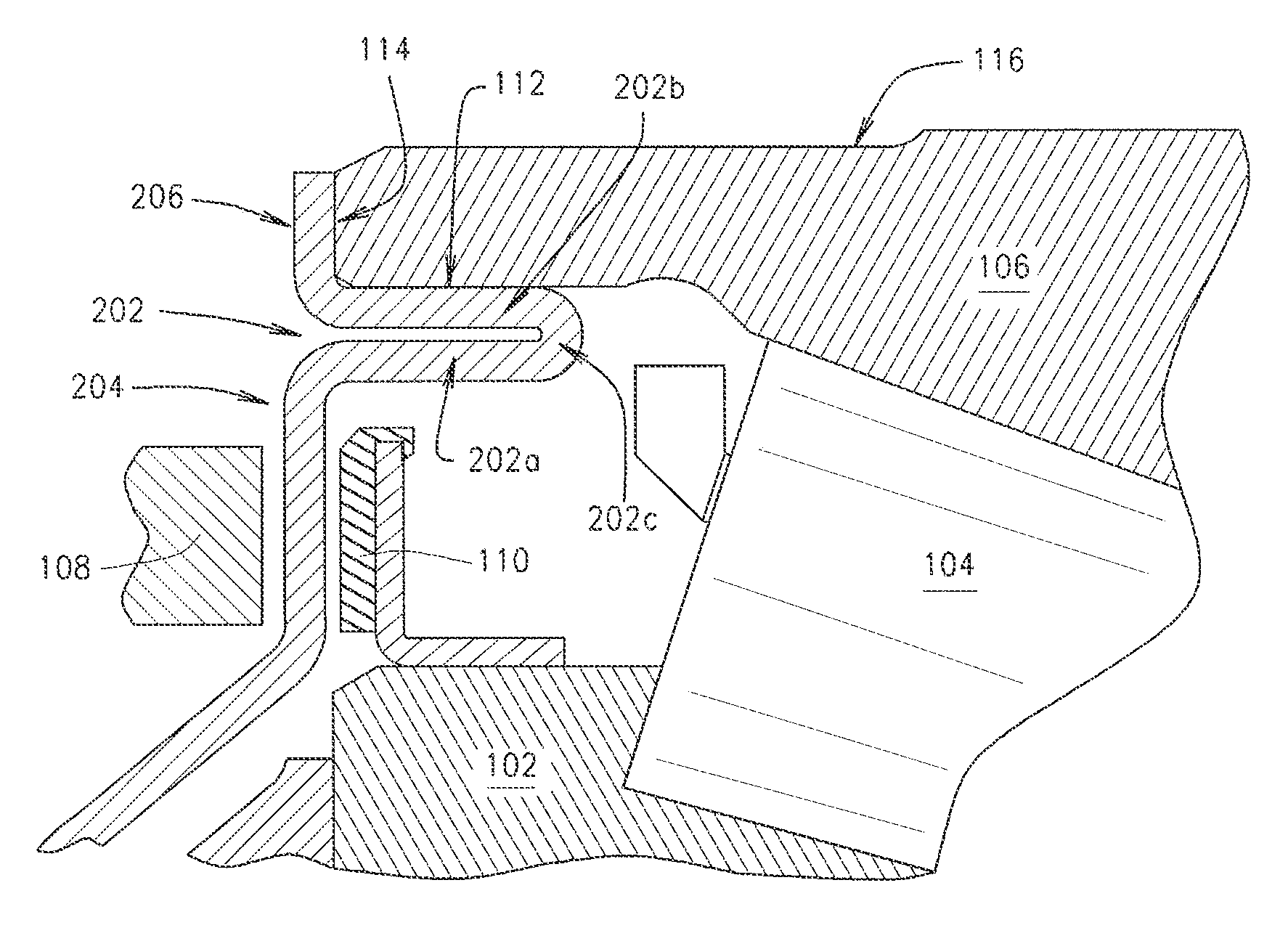

A wheel bearing assembly endcap 200 configured with a pilot structure 202 defined by radially-inner and radially-outer annular portions 202a, 202b joined by an annular bend 202c disposed between a central face 204 of the endcap and an outer peripheral flange 206. The pilot structure 202 projects in an axially outboard direction along the axis X of the wheel bearing assembly 100 for fitment within an inner diameter surface 112 of an outer axial member 106, to facilitate sealing and a spring-biased retention of the endcap 200 within the wheel bearing assembly 100. The outer peripheral flange 206, which is contiguous with the pilot structure 202, seats against an inboard end face 114 of the wheel bearing assembly 100 outer axial member 106 to provide a positive axial stop, and is configured as an additional sealing element to reduce contaminate ingress between the endcap 200 and the interior surfaces of the wheel bearing assembly 100.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| WO | A1 | WO2010059355 | Oct 29, 2009 |
International Classification(s)
- 2009 Application Filing Year
- F16C Class
- 630 Applications Filed
- 382 Patents Issued To-Date
- 60.64 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- F16C Class
- 6.17 % this patent is cited more than
- 14 Age
