EXPLOSIVE PART WITH SELECTABLE INITIATION
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 25, 2011
app pub date -
Aug 18, 2009
filing date -
Sep 9, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

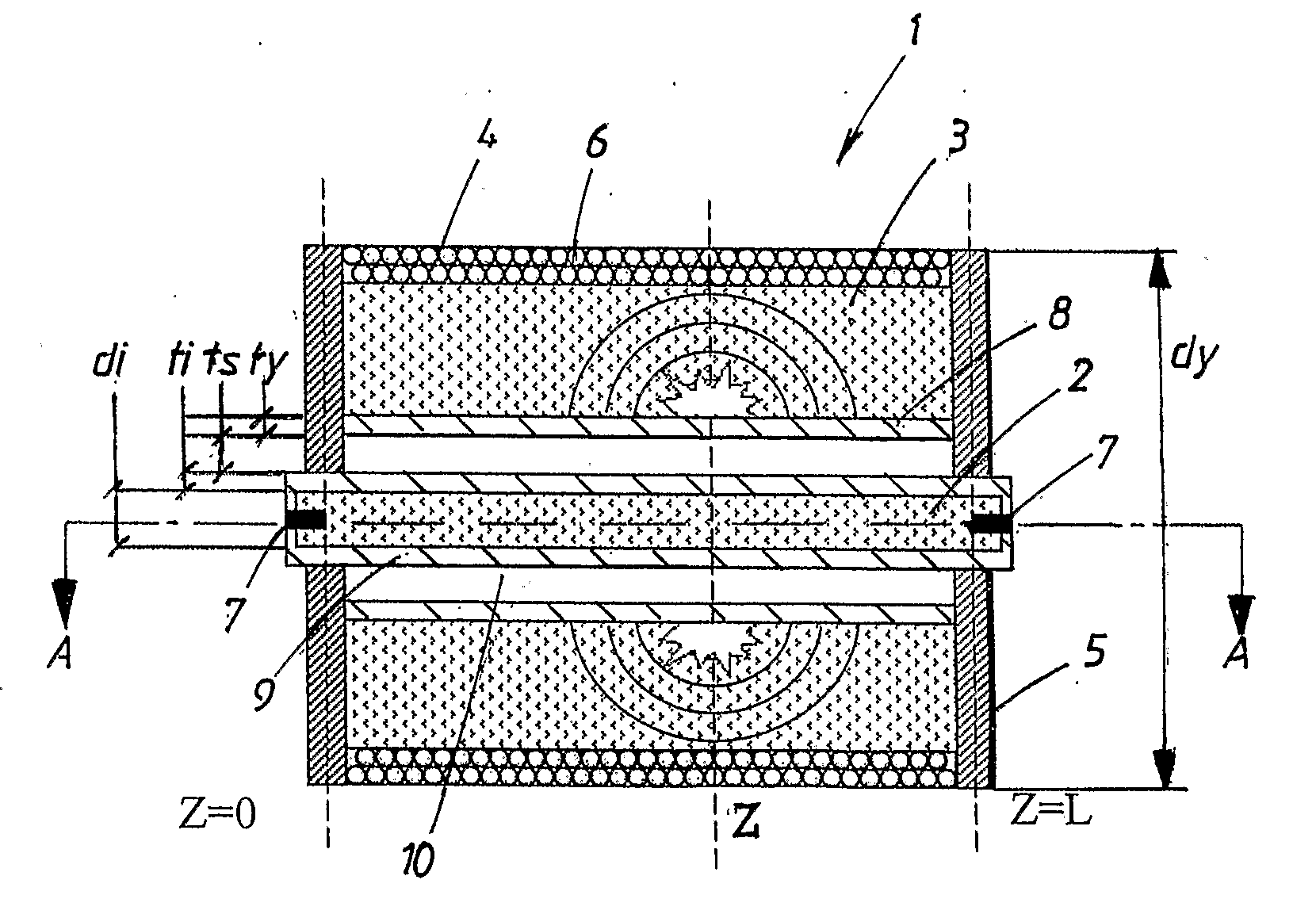

The invention is characterized in that the a explosive part (1) comprises two initiation devices (7) arranged on each end face (5) with connections to an inner explosive charge (2), the two initiation devices (7) being arranged for optional initiation of the inner explosive charge (2), with or without an ignition delay. At, and in that the diameter di of the inner explosive charge (2), the thicknesses ti, ty of the two insulating layers (8, 9) and thickness is of air gap (10) are chosen such that energy from two colliding detonation fronts along the common centre axis A-A is required in order for the initiation to lead to detonation of the outer explosive charge (3). The invention also relates to a method for the above.
First Claim
Other Claims data not available
