Atomic force microscopes and methods of measuring specimens using the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 30, 2013
Grant Date -
Aug 18, 2011
app pub date -
Feb 8, 2011
filing date -
Feb 17, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance

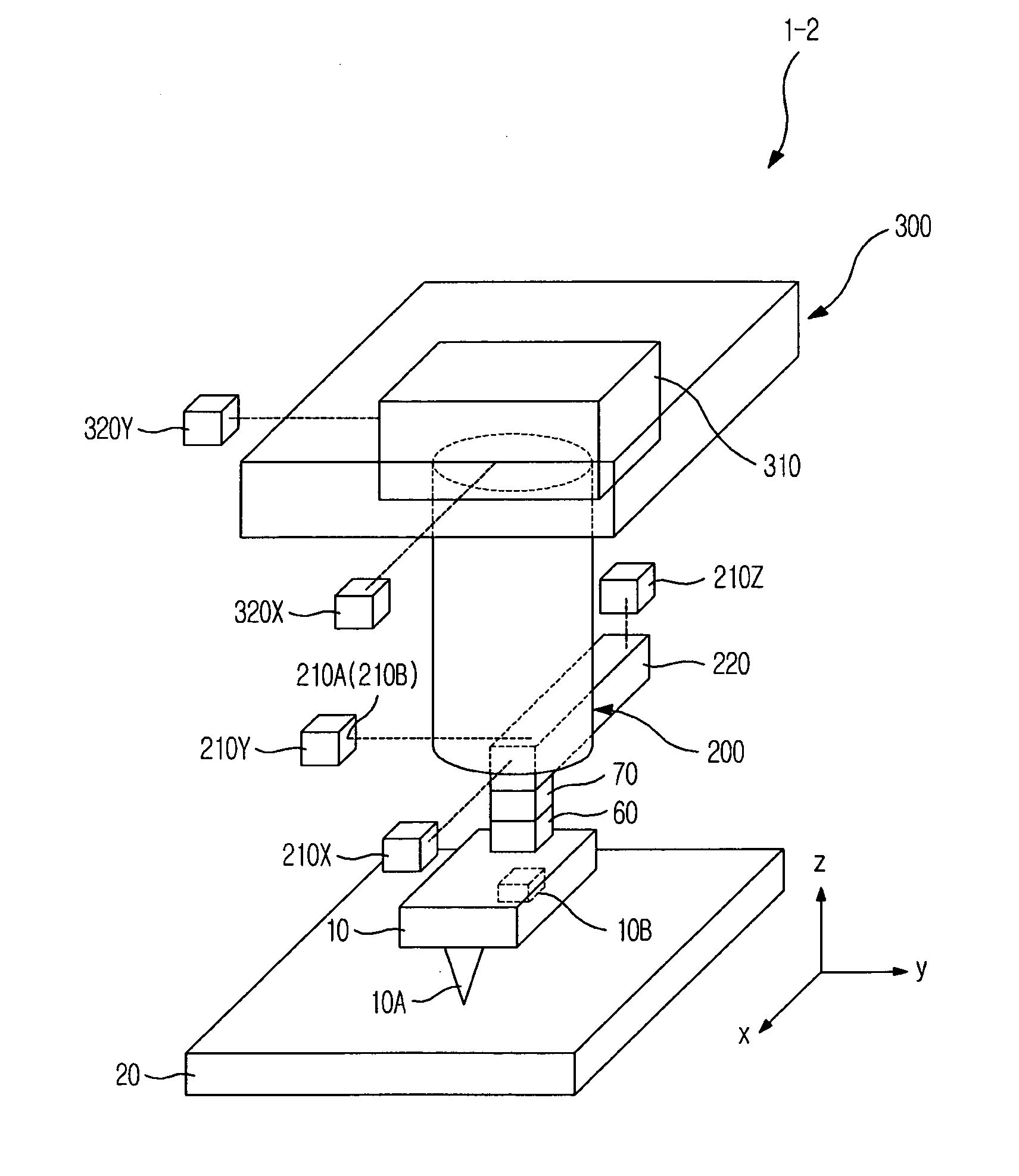

Abstract
Atomic force microscopes and methods of measuring specimens using the same. An atomic force microscope may precisely measure a 3D shape of a specimen using both a short-stroke scanner and a long-stroke scanner. The atomic force microscope may include a stage to transfer a specimen, at least one cantilever which includes a probe such that a driving displacement and a driving frequency are changed by attractive force and repulsive force in relation to atoms of the specimen, at least one short-stroke scanner which includes the cantilever so as to perform short-stroke scanning of the specimen, at least one long-stroke scanner which includes the short-stroke scanner so as to perform long-stroke scanning of the specimen, and at least one coarse approach system for transferring the short-stroke scanner and the long-stroke scanner to the specimen.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- G01Q Class
- 74 Applications Filed
- 56 Patents Issued To-Date
- 75.68 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01Q Class
- 0 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 30, 2025 |
