AXIAL PISTON MULTI CIRCUIT MACHINE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 18, 2011
app pub date -
Oct 28, 2009
filing date -
Oct 29, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

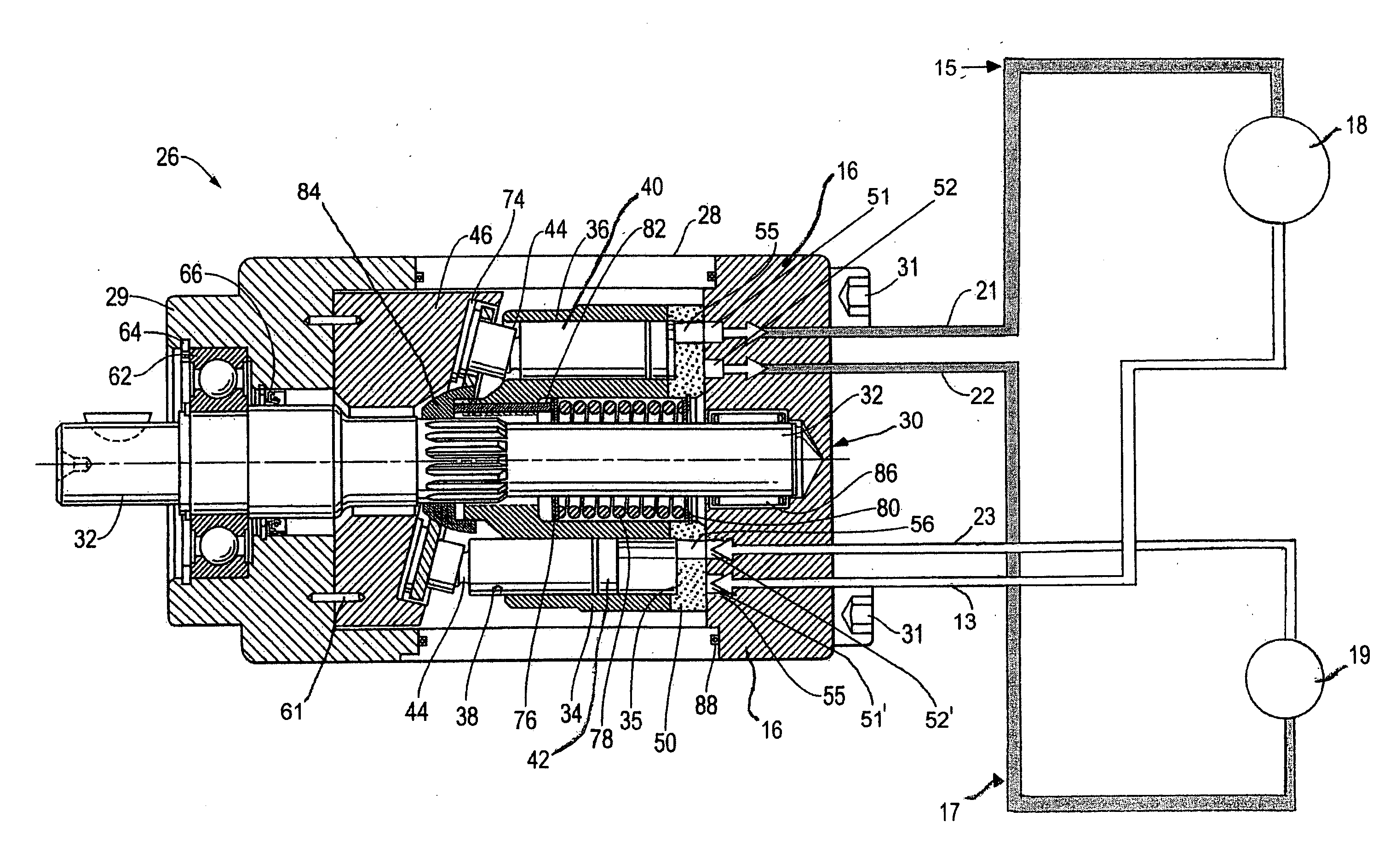

An axial multi circuit machine has a housing and centrally mounted drive shaft A cylinder barrel has a plurality cylinders with a piston placed in each cylinder In one embodiment the drive shaft rotates the cylinder barrel with respect to a stationary wedge and in another embodiment the drive shaft rotates the wedge with respect to the stationary cylinder barrel A cylinder head with a cylinder having at least one port for receiving and discharging a fluid to a first fluid circuit and a second cylinder having a second port for discharging fluid to a second fluid circuit The first and second fluid circuits are independent and can be at different pressures and flow rates Alternatively, the machine may function as a motor and receive fluid by means of one or more of the fluid circuits which in turn imparts a driving force to the drive shaft
First Claim
Other Claims data not available
