Electrical Connection and Support Assembly for a Photovoltaic Cell Having Rear Contacts, A Photovoltaic Module Including Such an Assembly, and a method of Fabricating Such a Module
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 11, 2011
app pub date -
Feb 7, 2011
filing date -
Feb 11, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

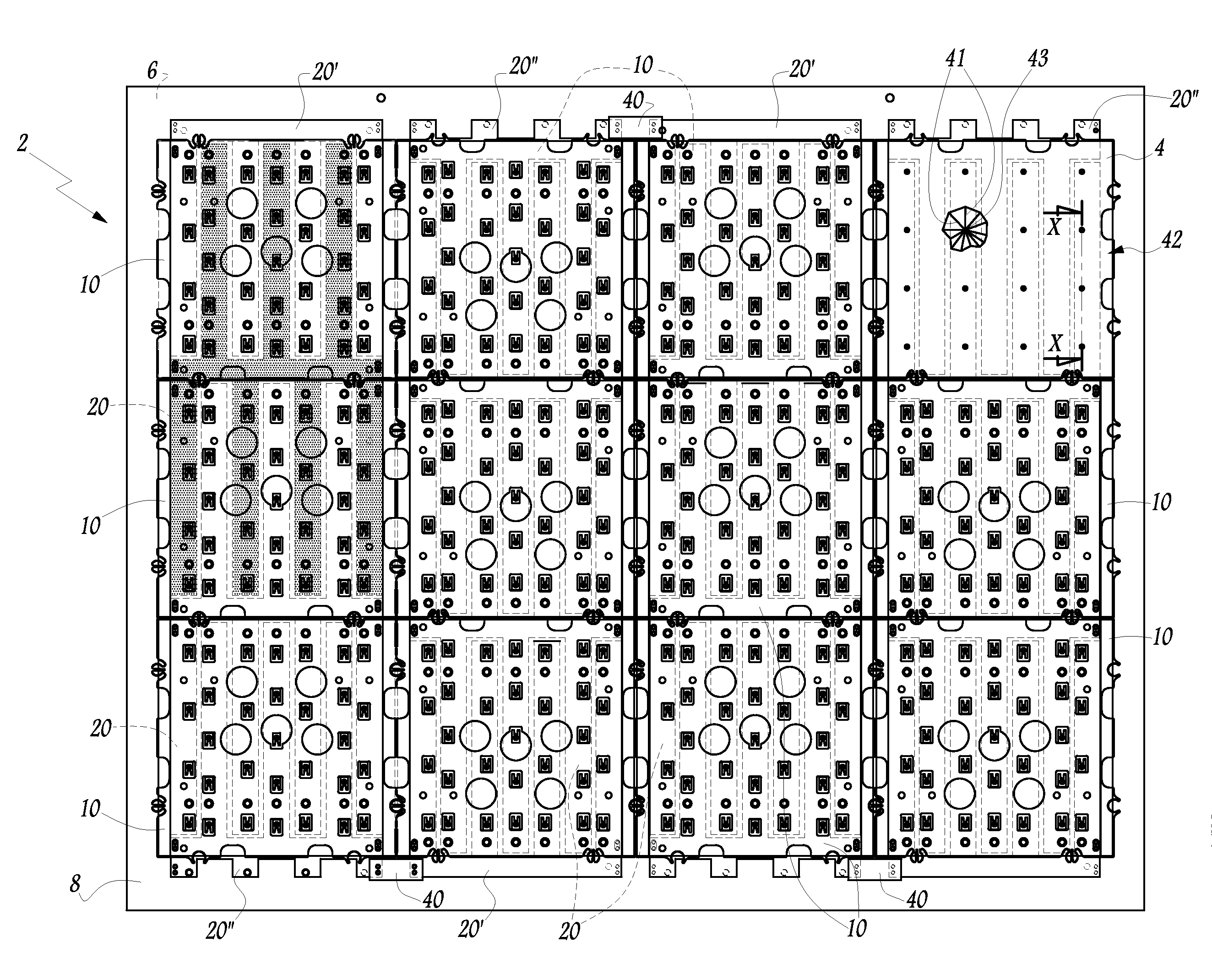

This electrical connection assembly is used for a photovoltaic cell (4) having rear electrical contacts. The assembly comprises at least one spacer-plate (10) of electrically insulating material suitable for having the rear face of the cell bearing against a first side (116) thereof in a position in which the connection terminals (46, 48) of the cell (4) are in register with through orifices (120, 122) in the spacer-plate (10). The assembly also includes at least two ribbons (20) of electrically conductive material arranged on a second side of the spacer-plate (10), opposite from the first side (116), and provided with contact elements (210, 212) suitable for making electrical contact with the connection terminals (46, 48) of the cell (4) through the orifices (120, 122) in the spacer-plate. Electrical contact between the contact elements (210, 212) and the connection terminals (46, 48) is established without soldering, under the effect of a resilient force.
First Claim
Other Claims data not available
