PRINTING SYSTEM HAVING A RAISED IMAGE PRINTING CYLINDER
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 11, 2011
app pub date -
Feb 11, 2010
filing date -
Feb 11, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

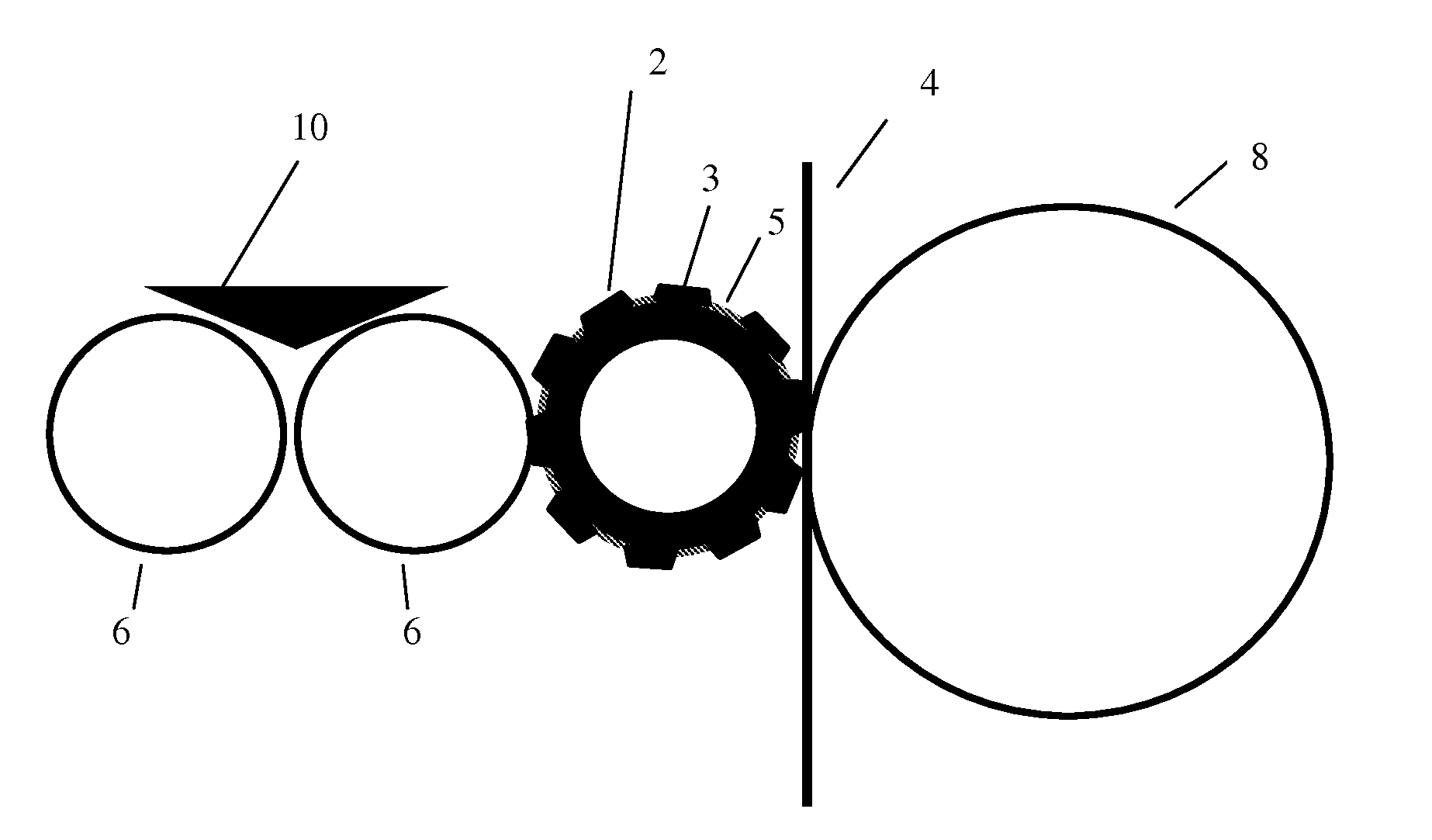

A printing arrangement having a rotatable printing cylinder and raised image and non-raised non-image portions on the circumference of the printing cylinder. The arrangement has an array of smooth rollers for applying an ink onto the image on the printing cylinder and not applying ink onto the non-image portion. A first smooth roller is mounted for rotation near the printing cylinder and a second smooth roller mounted for rotation near the first roller forming an ink gap between the two smooth rollers. Ink is dispersed across the first smooth roller and applied onto the image on the printing cylinder. The arrangement has a rotatable counter pressure cylinder mounted with the printing cylinder such that when a web is passed through a gap between the printing and counter pressure cylinders, and when ink applied to the image portion on the printing cylinder, ink is transferred from the image onto the substrate material.
First Claim
Other Claims data not available
