PADLOCKS WITH ANTI-RAPPING SECURITY FEATURES
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 4, 2011
app pub date -
Jan 28, 2011
filing date -
Feb 1, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

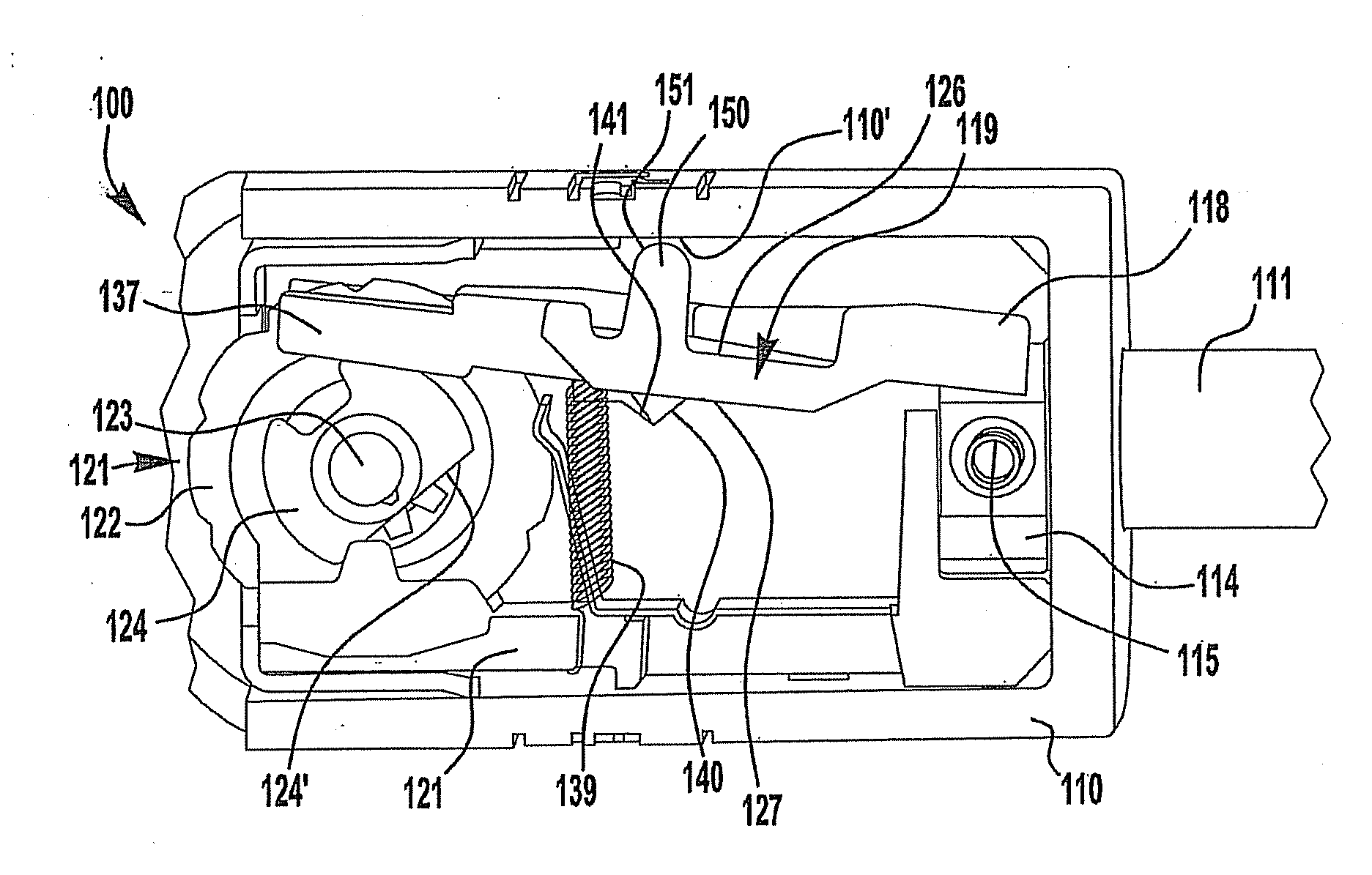

A combination padlock includes a lock housing, a shackle, and a plurality of dials. A blocking member disposed within the lock housing is pivotable about a pivot point on the blocking member between a shackle securing position and a shackle releasing position. Each of the plurality of dials includes an unlocking feature disposed on an outer periphery of the dial. When each of the plurality of dials is rotated to an unlocking orientation, each of the unlocking features aligns with a corresponding dial engaging portion of the blocking member, allowing the blocking member to pivot from the shackle securing position to the shackle releasing position. Engagement of the blocking member with the inner front surface of the lock housing is limited to a location longitudinally aligned with the pivot point to limit lateral movement of the blocking member without limiting pivoting movement of the blocking member.
First Claim
Other Claims data not available
