RECLINABLE STROLLER SEAT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 21, 2011
app pub date -
Jan 19, 2010
filing date -
Jan 19, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

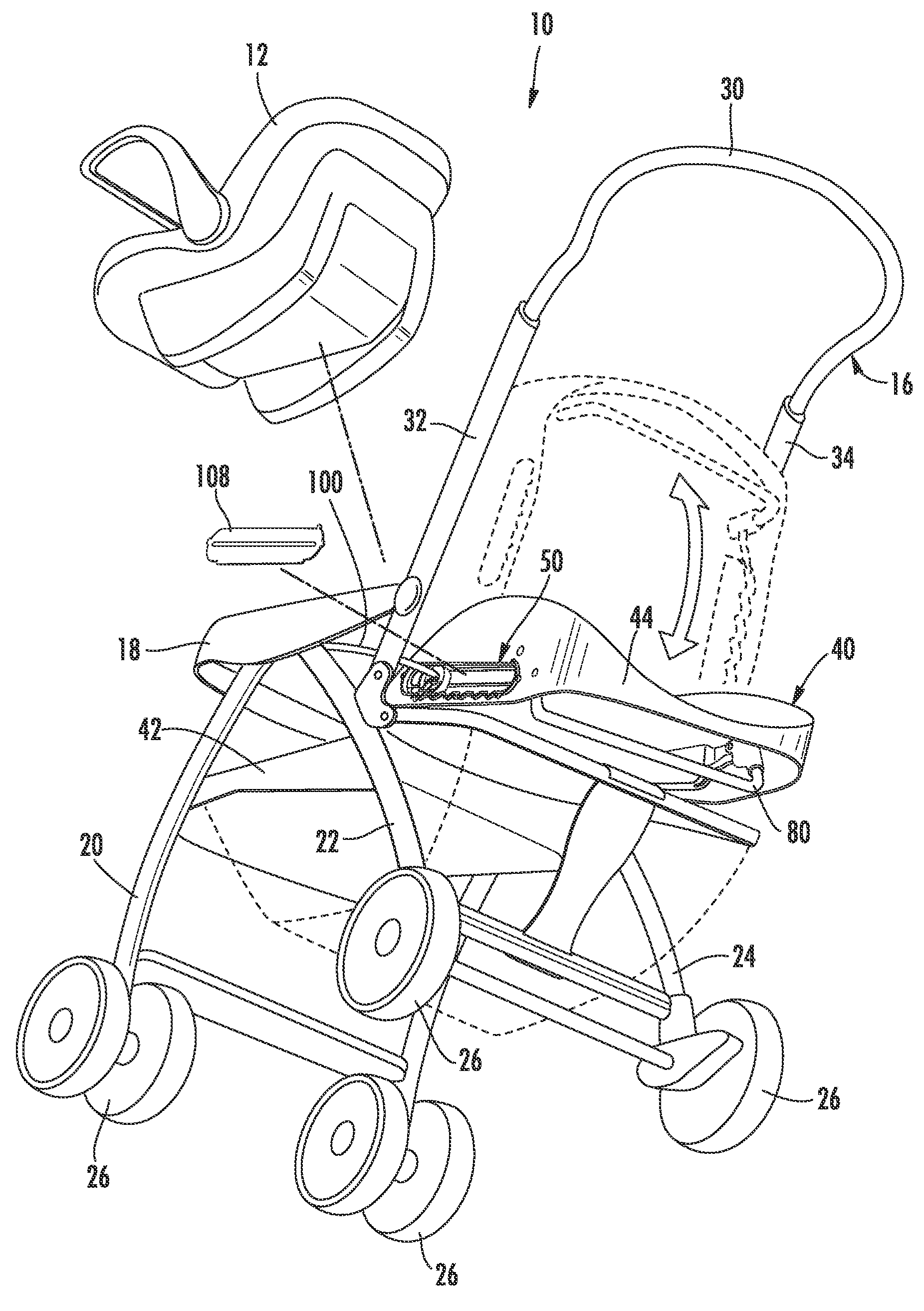

A stroller having a reclinable seat is provided, the reclinable seat includes a base connected to the stroller, a seatback pivotally connected to the stroller, and a seat recline mechanism arranged on the seatback. The seat recline mechanism includes a body defining a cavity having grooves and a release slider arranged within the cavity. The release slider has teeth that correspond to the grooves in the cavity and an end portion connected to an actuator. A spring is associated with the release slider, biasing the teeth of the release slider into engagement with the grooves in the cavity. A pawl is also arranged within the cavity and removably engages at least one of the grooves in the cavity. A recline link is pivotally connected at a first end to the pawl and pivotally connected at a second end to the stroller.
First Claim
Other Claims data not available
