OPTICAL TRANSCEIVER MODULE AND METHOD OF MANUFACTURING THE OPTICAL TRANSCEIVER MODULE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 14, 2011
app pub date -
Jan 4, 2011
filing date -
Jan 8, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

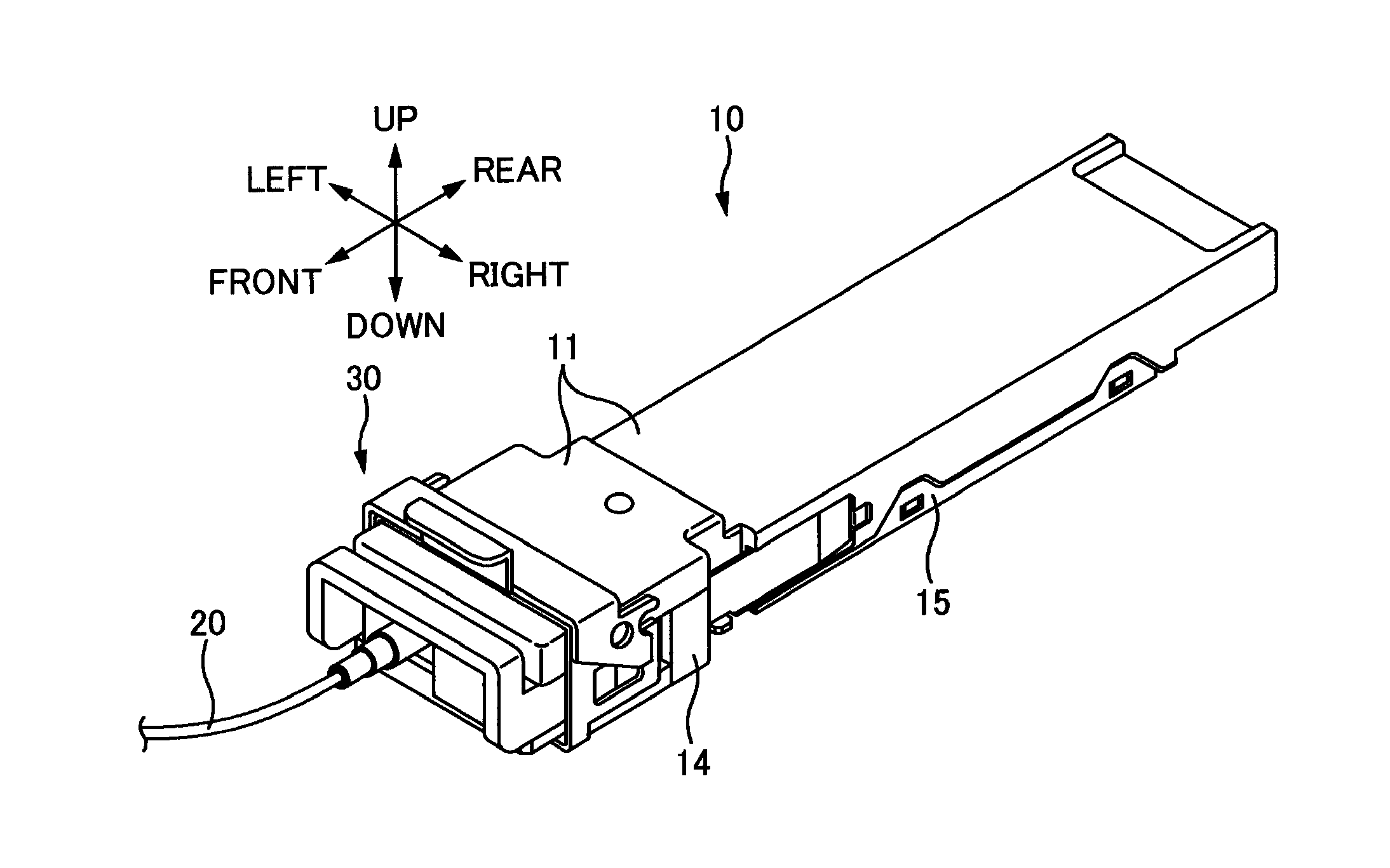

An optical transceiver module that is capable of being inserted into and removed from a cage includes a housing that houses a photoelectric conversion element, the housing having a guiding section formed along a front-rear direction, an operating lever that has an operating section and a lever-side contact section, the operating lever being attached to the housing in a rotatable manner about an axis of rotation; and a slider that has a wedge section that engages with a latching section provided to the cage, and a slider-side contact section that comes into contact with the lever-side contact section, the slider being guided in the front-rear direction by the guiding section, the lever-side contact section being located opposite the operating section with respect to the axis of rotation, and as the operating section is pushed rearward, the lever-side contact section pushes the slider-side contact section forward and the slider moves forward to a position where the wedge section is unlatched from the latching section.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- B23P Class
- 10.34 % this patent is cited more than
- 14 Age
