Refiner steam separation system for reduction of dryer emissions
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 22, 2012
Grant Date -
Jul 7, 2011
app pub date -
Mar 15, 2011
filing date -
May 21, 2003
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

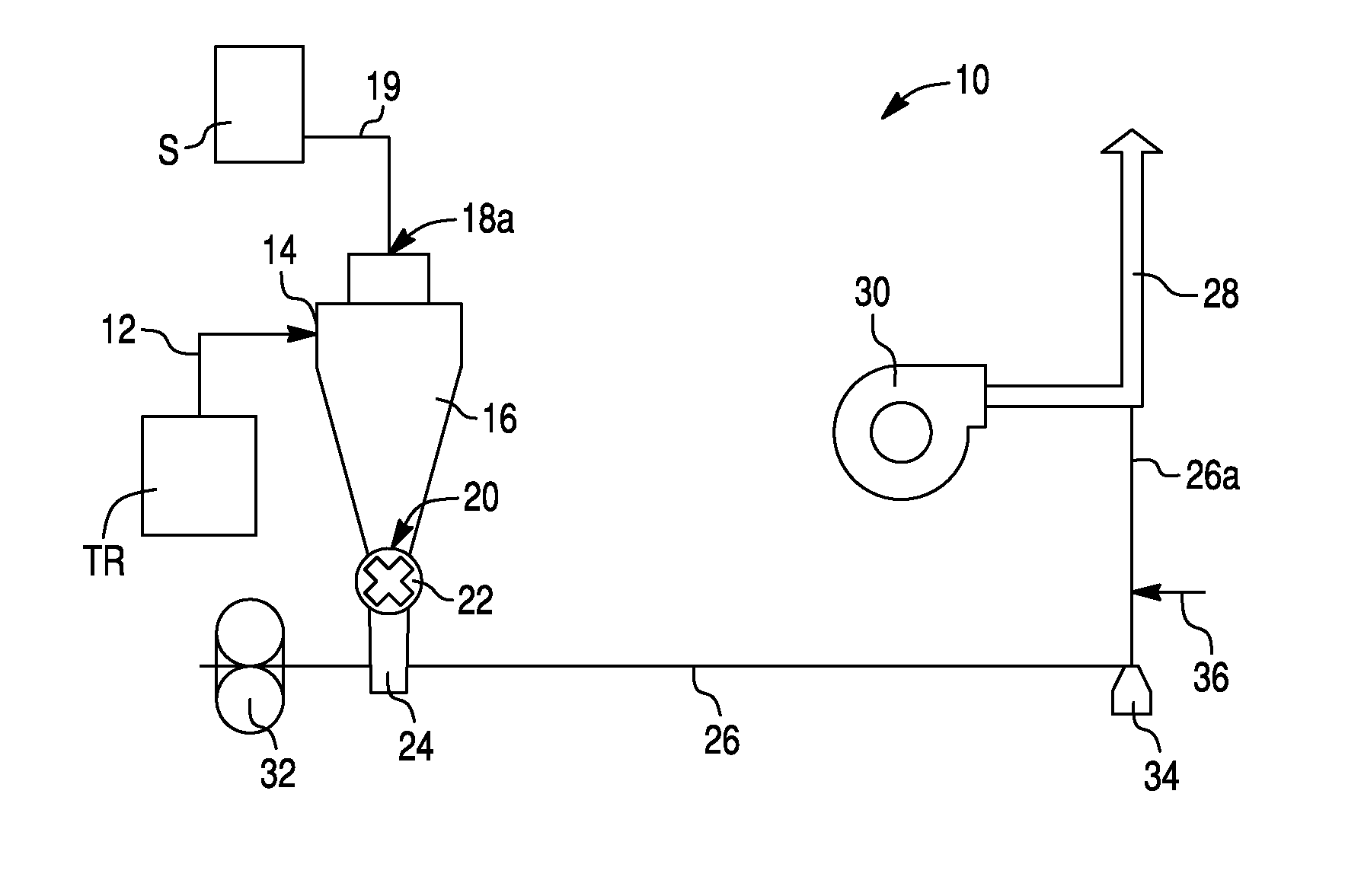

A refiner steam separation system according to the present invention includes a blowline for transporting a mixture of fiber material from a refiner to an inlet of a steam separator. Waste steam is discharged from the separator through a waste steam outlet. Cleaned fiber material is discharged from the separator through an exit, which prevents a substantial portion of the waste steam from passing through the exit. A relay pipe communicates with the exit and a dryer duct, and transports cleaned fiber material therebetween. A resin input communicates with the relay pipe, and supplies resin therein. The resin is mixed with the cleaned fiber material prior to the cleaned fiber material being dried in the dryer duct. The present invention is also directed to a method of reducing VOC emissions generated during refining cellulosic fibrous material.
First Claim
Other Claims data not available
