SUPPORT DEVICE FOR SUPPORTING SOLAR ENERGY RECOVERY MODULES, A SOLAR ENERGY RECOVERY UNIT AND A METHOD OF MOUNTING SOLAR ENERGY RECOVERY MODULES
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
May 27, 2009
filing date -
May 27, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

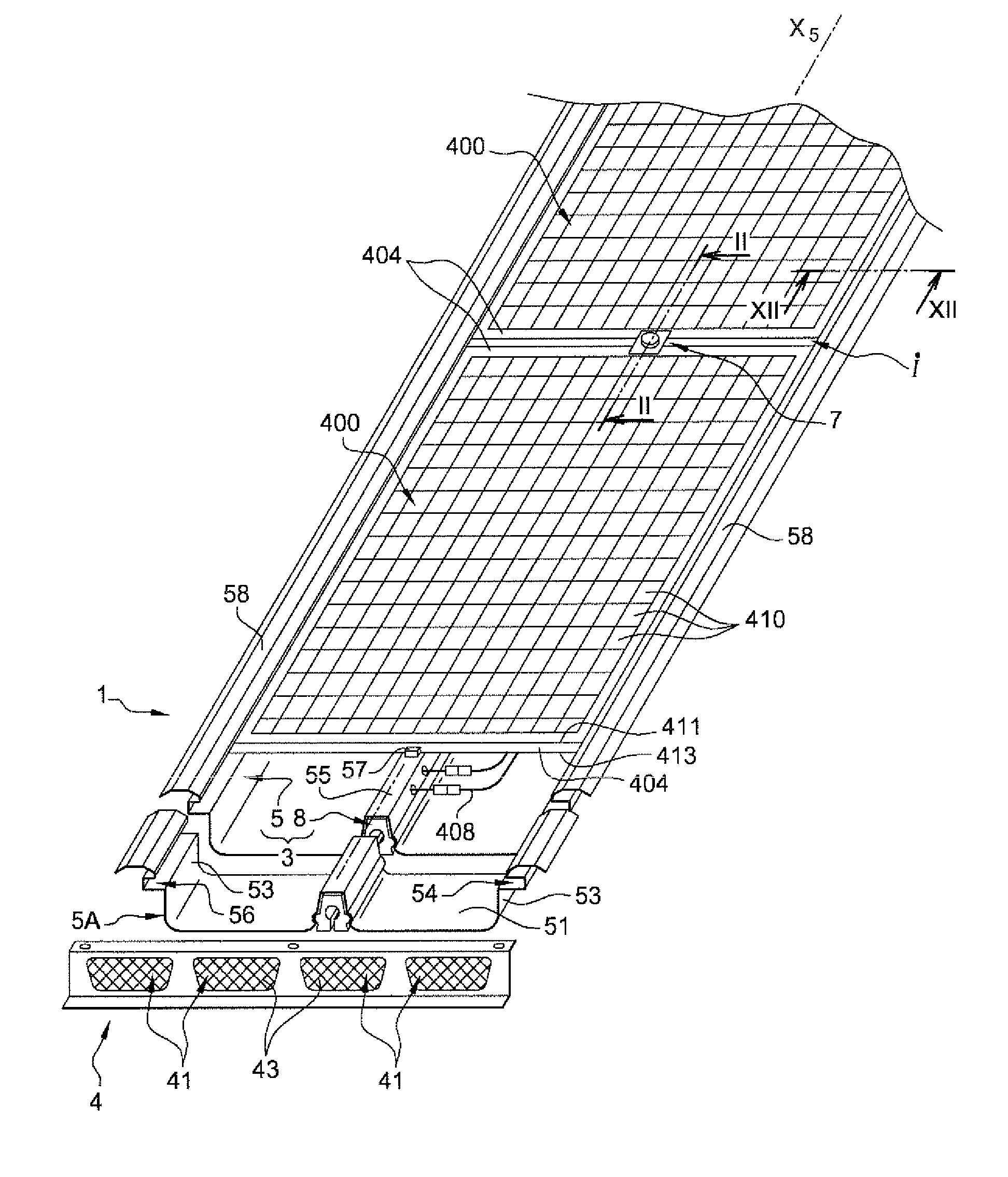

The invention relates to a mounting device (3) for at least one module (400) for recovering power from solar radiation that includes a first (54) and second (56) groove arranged in a stationary manner opposite one another. Each groove (54, 56) is capable of receiving a module edge (402A, 402B) while an opposite module edge (402B, 402A) is received in the other groove. In the configuration for maximum sinking of an edge (402A, 402B) of the module (400) into a groove (54, 56) from among the two grooves, the opposite module edge (402B, 402A) is capable of being extracted from the other edge, and the device contains a means (9) for maintaining the module in a position wherein the two opposite module edges (402A, 402 B) are received in the first (54) and second (56) groove, respectively. The grooves (54, 56) are formed in a section (5) making it possible to completely hold up each module (400).
First Claim
Other Claims data not available
