AWNING AND SCREEN ROOM
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 30, 2011
app pub date -
Dec 31, 2009
filing date -
Dec 31, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

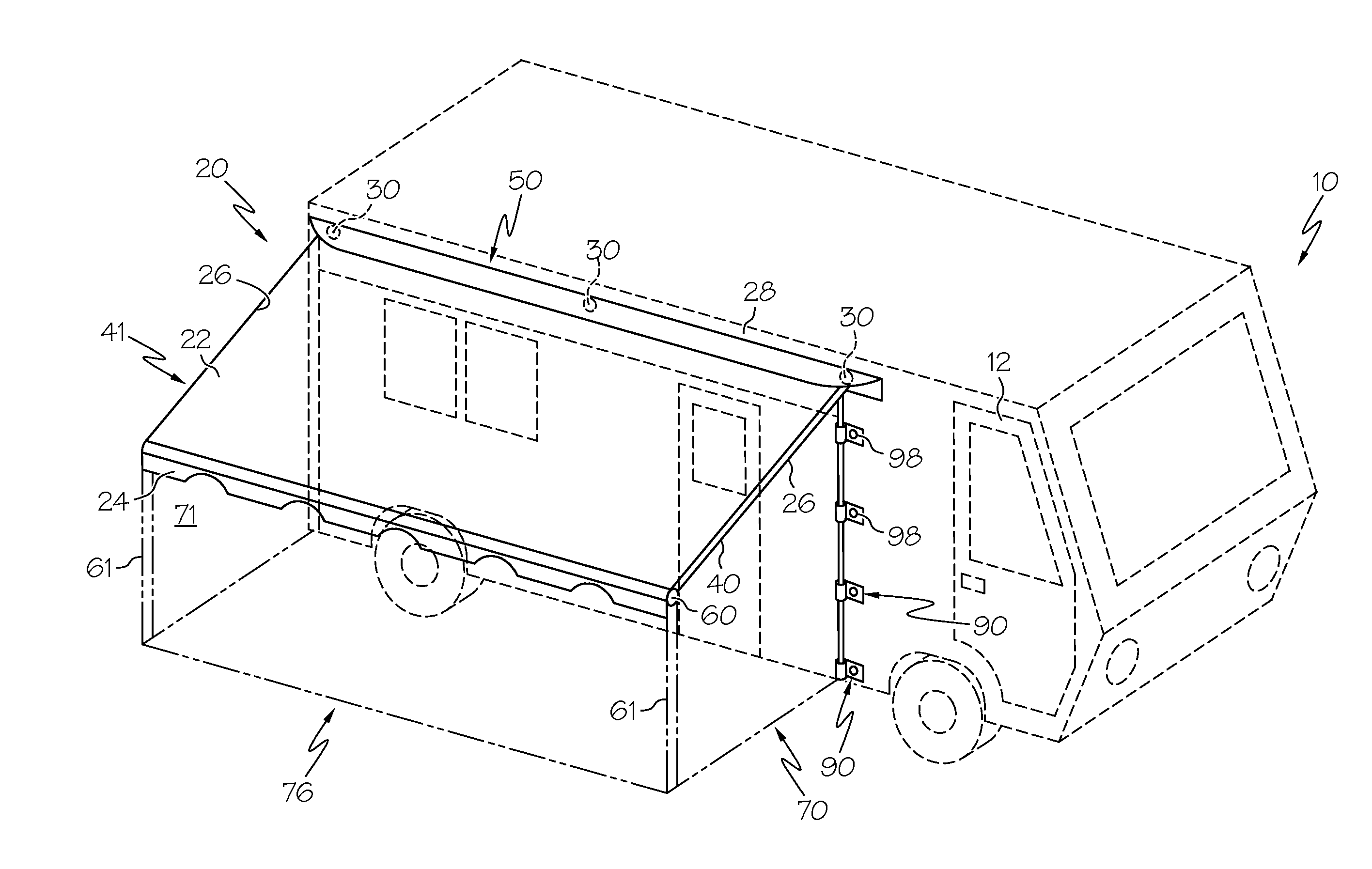

An apparatus and a method are provided for an assembly use with a wall where the assembly is selectively adjusted between a stored position, an awning position, and a screen room position. The assembly includes a bag configured to be removably attached to the wall, a canopy configured to be deployed from the bag, at least one base assembly attached to one of the bag or the wall, a plurality of poles removably attached to the at least one base assembly for supporting the canopy, and at least one sidewall removably engaging an edge of the canopy where the at least one sidewall is deployed in the screen room position. The bag is configured to receive at least one of the canopy, the plurality of poles, and the at least one sidewall, when the assembly is in the stored position.
First Claim
Other Claims data not available
