Juicer Structure
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 30, 2011
app pub date -
Dec 24, 2009
filing date -
Dec 24, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

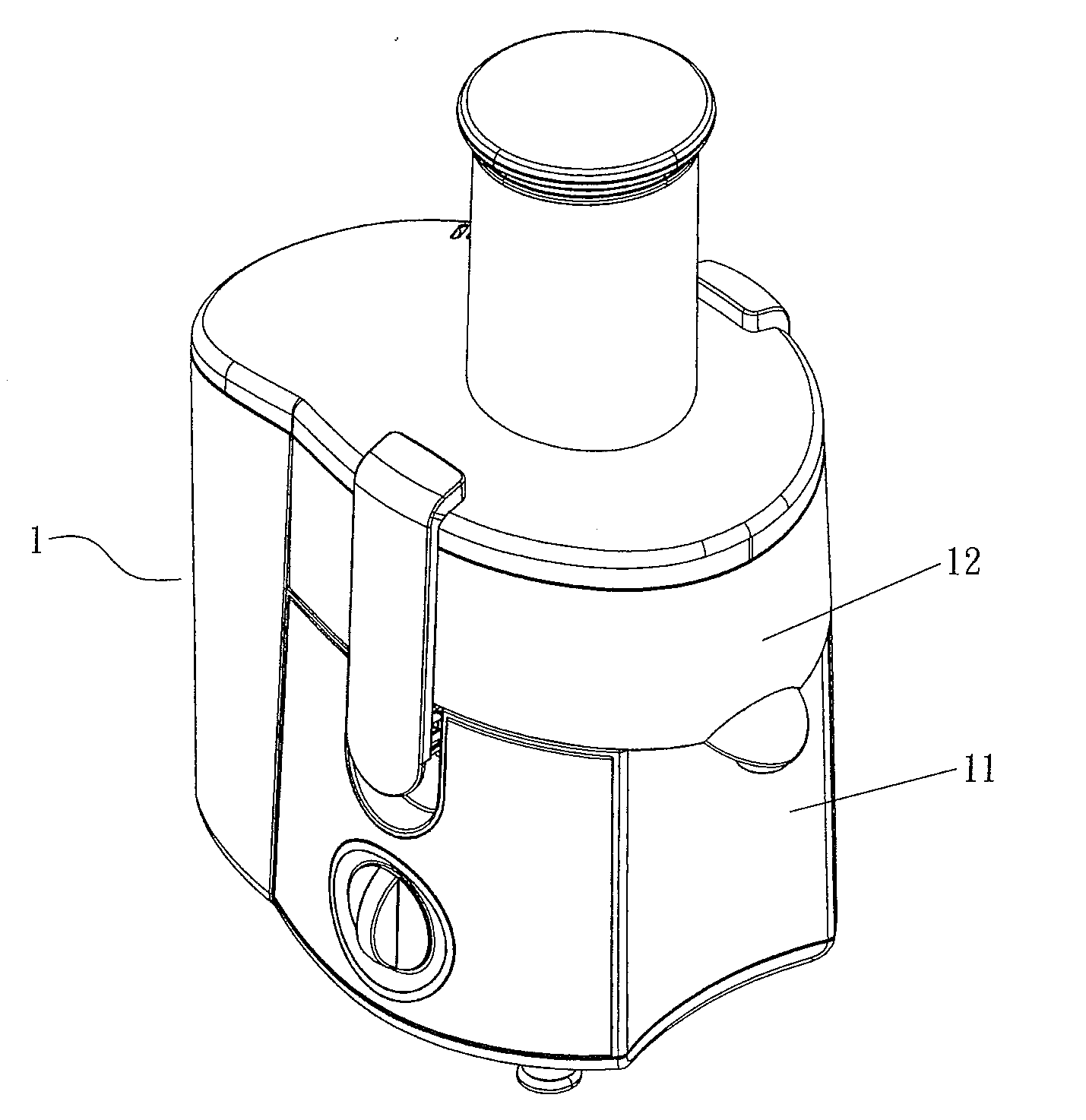

A juicer structure is disclosed, which features a clutch fixed at the terminal of a driving unit to be connected with a blade turntable, where the connected media is made of plural tiers of joining surfaces. A radial rod is set up in the joining surface corresponding to each bead hole. A bead hole allows protrusion of curved side at one end of a rod. And each curved side of the rod is lodged in the corresponding embedding hole, which establishes a firm coupling between the blade turntable and the clutch. The clutch actually is a multiple-tier design, and joins the blade turntable in an axial coupling with the support by the rod, which substantially boosts the stability of the joining with the blade turntable.
First Claim
Other Claims data not available
