Movable touchpad with high sensitivity
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 28, 2012
Grant Date -
Jun 16, 2011
app pub date -
Dec 16, 2009
filing date -
Dec 16, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

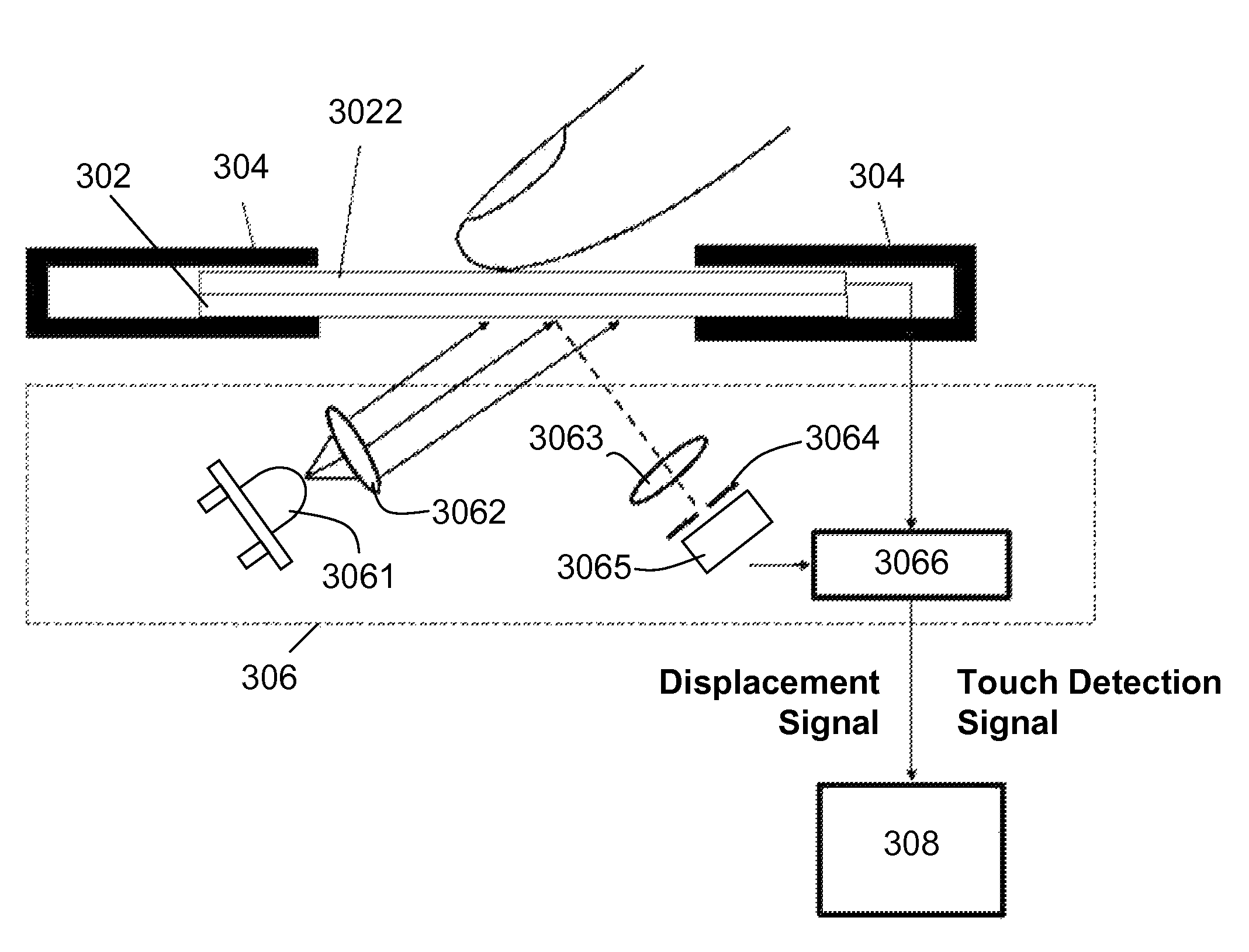

A highly sensitive movable touchpad is disclosed in the present invention. It is used for laptop computers and has a slidable template for users to move so that a cursor can be controlled by the touchpad. A resistive or capacitive detecting surface can be applied for detecting users' click, double click, drag, or scroll motion on any point of the surface. Additionally, there is an optical displacement sensor provided under the slidable template for detecting surface information on the back surface of the slidable template. A sequence of images of surface movement are processed by an image processing unit. Then, relative movement information is calculated and sent to an operating system in the computer. The operating system controls the cursor with the relative movement information. The present invention uses edge detectors for dynamically controlling the cursor and calibrating location of the cursor so that positioning of the touchpad is synchronous with the cursor.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G09G Class
- 1.74 % this patent is cited more than
- 13 Age
