Method For Controlling The Passenger Compartment Temperature Of An Electrically Operated Vehicle And An Air-Conditioning System For The Electrically Operated Vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 16, 2011
app pub date -
Sep 27, 2010
filing date -
Sep 28, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

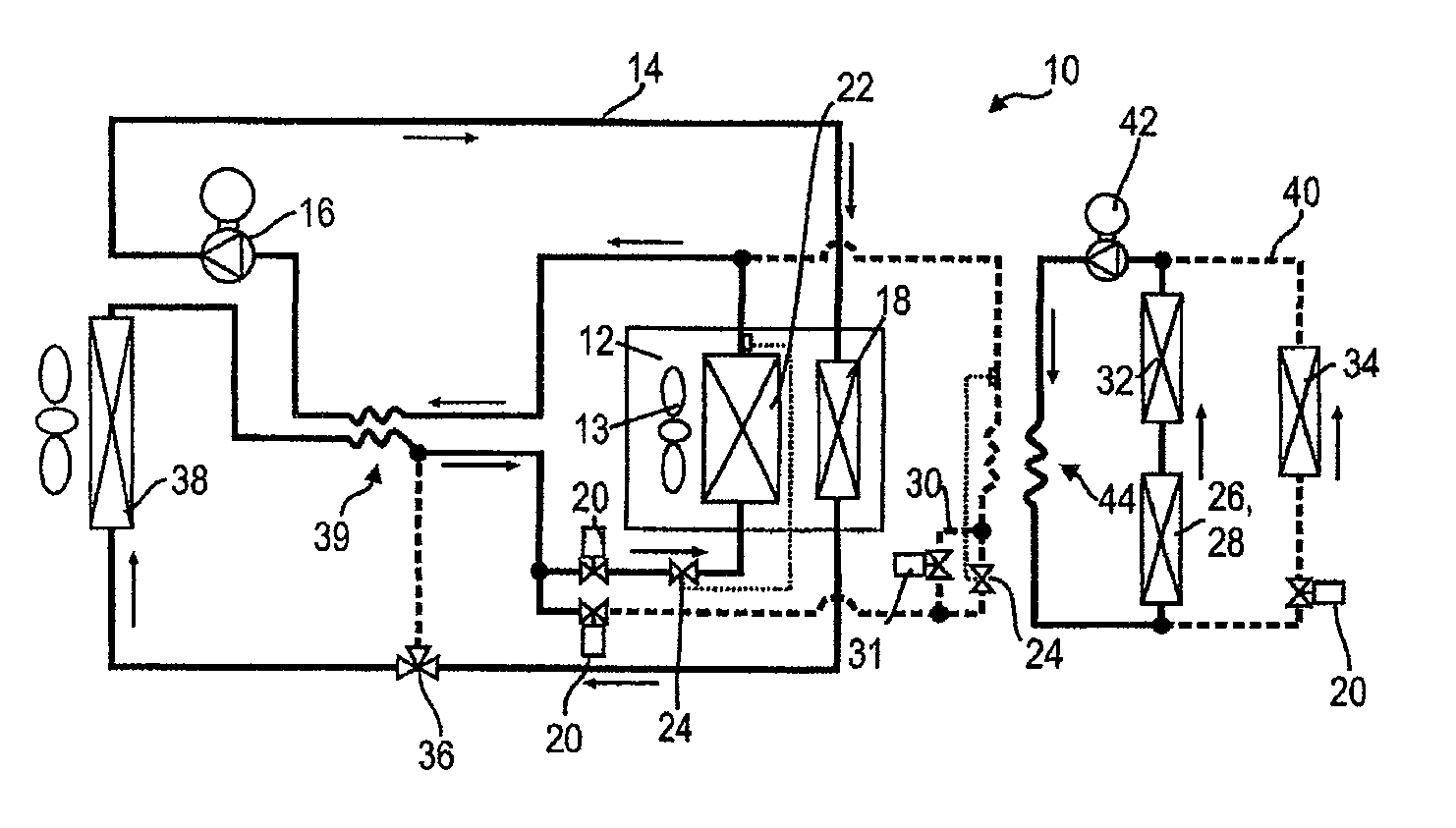

A method for controlling the passenger compartment temperature of an electrically operated vehicle which has a battery (26), comprises the following steps: providing an air-conditioning system (10) with a coolant circuit (14), thermal coupling the coolant circuit (14) to the battery (26) in such a way that the battery (26) forms a heat accumulator of the coolant circuit (14), and optional cooling or heating of the battery (26) while the battery (26) is coupled to an electric charging station for charging the battery (26). The corresponding operating air-conditioning system (10) provides for the vehicle battery (26) to be thermally coupled directly or indirectly to the coolant circuit (14) in such a way that the coolant circuit (14) optionally cools or heats the battery (26), and heat from the battery (26) can optionally be fed into the coolant circuit (14).
First Claim
Other Claims data not available
