PHOTOLUMINESCENT OPTICAL SIGHTS AND DEVICES AND METHODS THEREFROM
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 16, 2011
app pub date -
Jun 10, 2009
filing date -
Jun 10, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

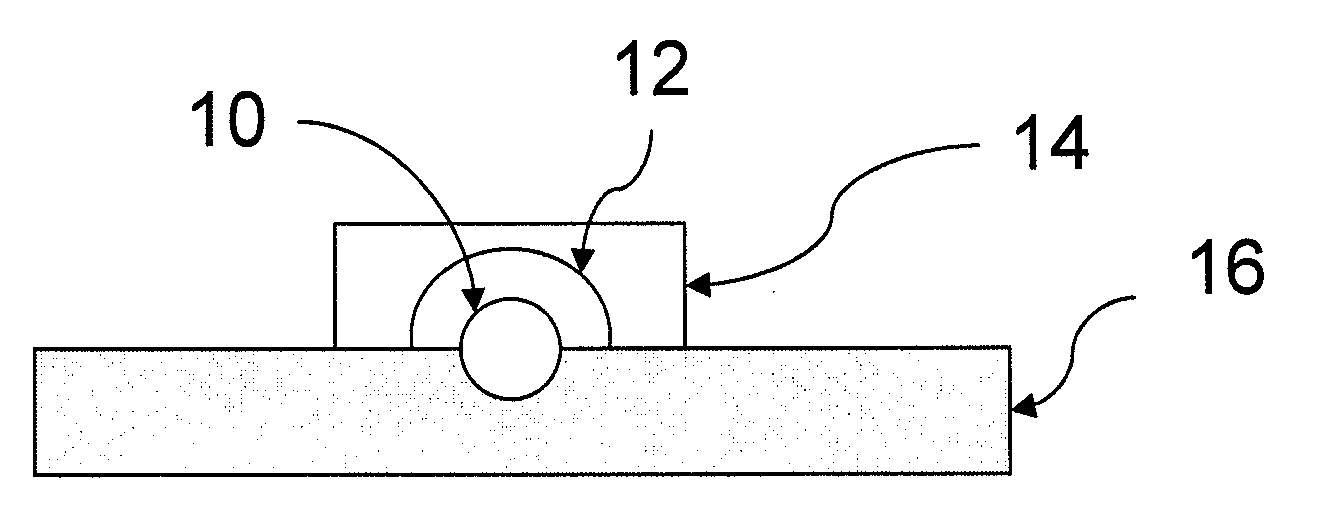

The present invention provides for photoluminescent optical fibers that are used to illuminate sighting reticles. The fibers are activated by electromagnetic radiation and emit electromagnetic radiation of various wavelengths at high intensity and for long periods of time. The emission from the photoluminescent fiber can only be seen coming from one terminal end of the fiber, which is designed to be positioned inside the sighting device to illuminate a reticle. The photoluminescent fiber contains a base optical fiber which is covered at least in part by a photoluminescent composition which itself is fully covered by a second composition that allows the activating electromagnetic radiation to pass through to activate the photoluminescent layer while preventing the emissive electromagnetic radiation of the photoluminescent layer from passing back through.
First Claim
Other Claims data not available
