Weatherseal Having Flexible Projection
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 9, 2011
app pub date -
Dec 3, 2010
filing date -
Dec 3, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

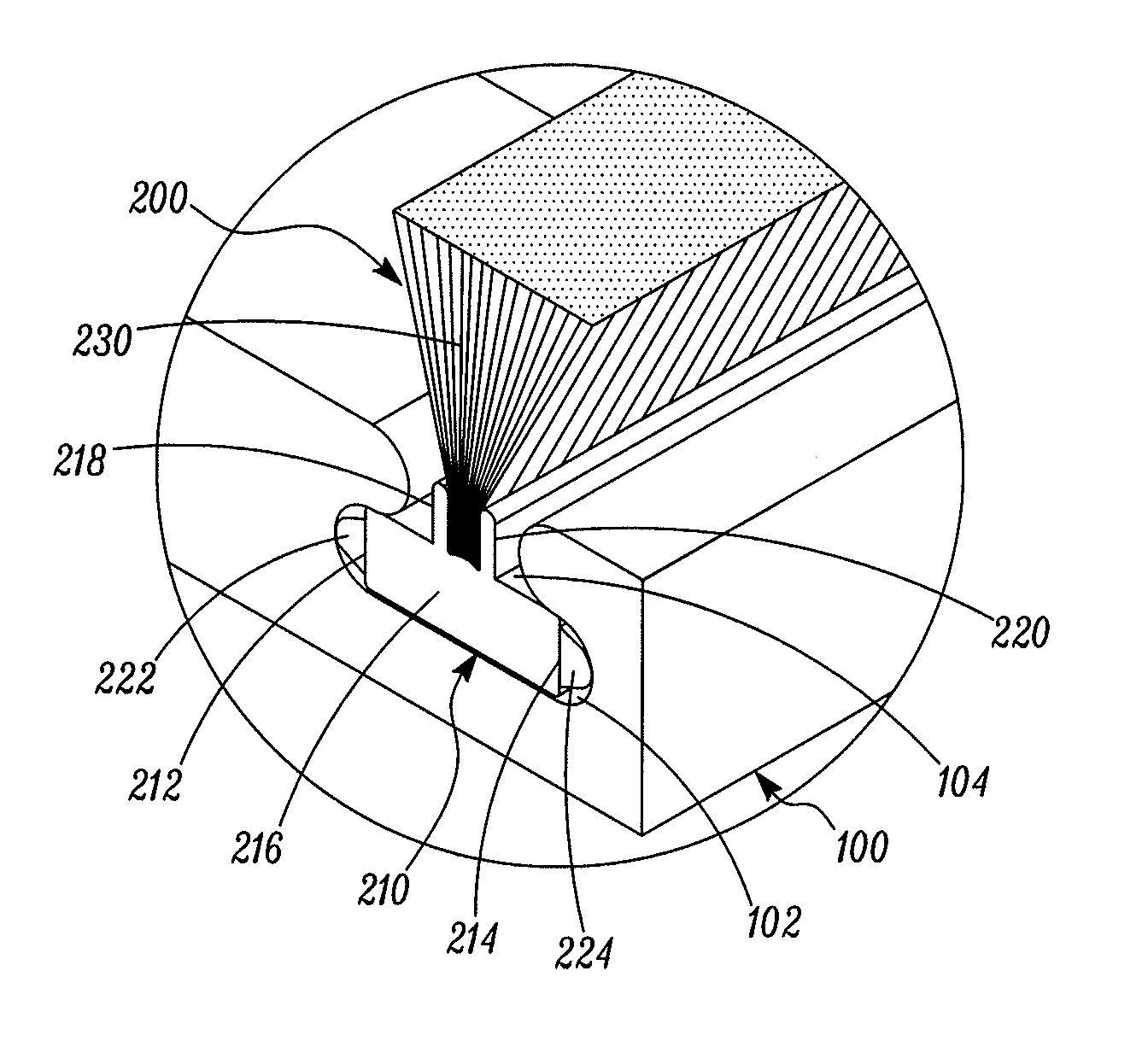

A weatherseal includes a T-shaped base having a first edge, a second opposing edge, and an intermediate portion between the first edge and the second opposing edge. A substantially continuous projection is secured to and projects from at least one of the first edge and the second opposing edge. A sealing element extends from the intermediate portion. Methods for manufacturing the weatherseal include extruding a substantially continuous projection onto at least one of the first edge and the second opposing edge. The weatherseal may be inserted into a frame member defining a substantially T-shaped slot. Methods for inserting the weatherseal include inserting the first edge into the T-shaped slot at an angle through a throat opening, and forcing the second opposing edge into the T-shaped slot through the throat opening.
First Claim
Other Claims data not available
