EASY CHANGE FILTER ASSEMBLY FOR REVERSE OSMOSIS MEMBRANE WATER PURIFICATION SYSTEM
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 26, 2011
app pub date -
Nov 23, 2010
filing date -
Nov 25, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

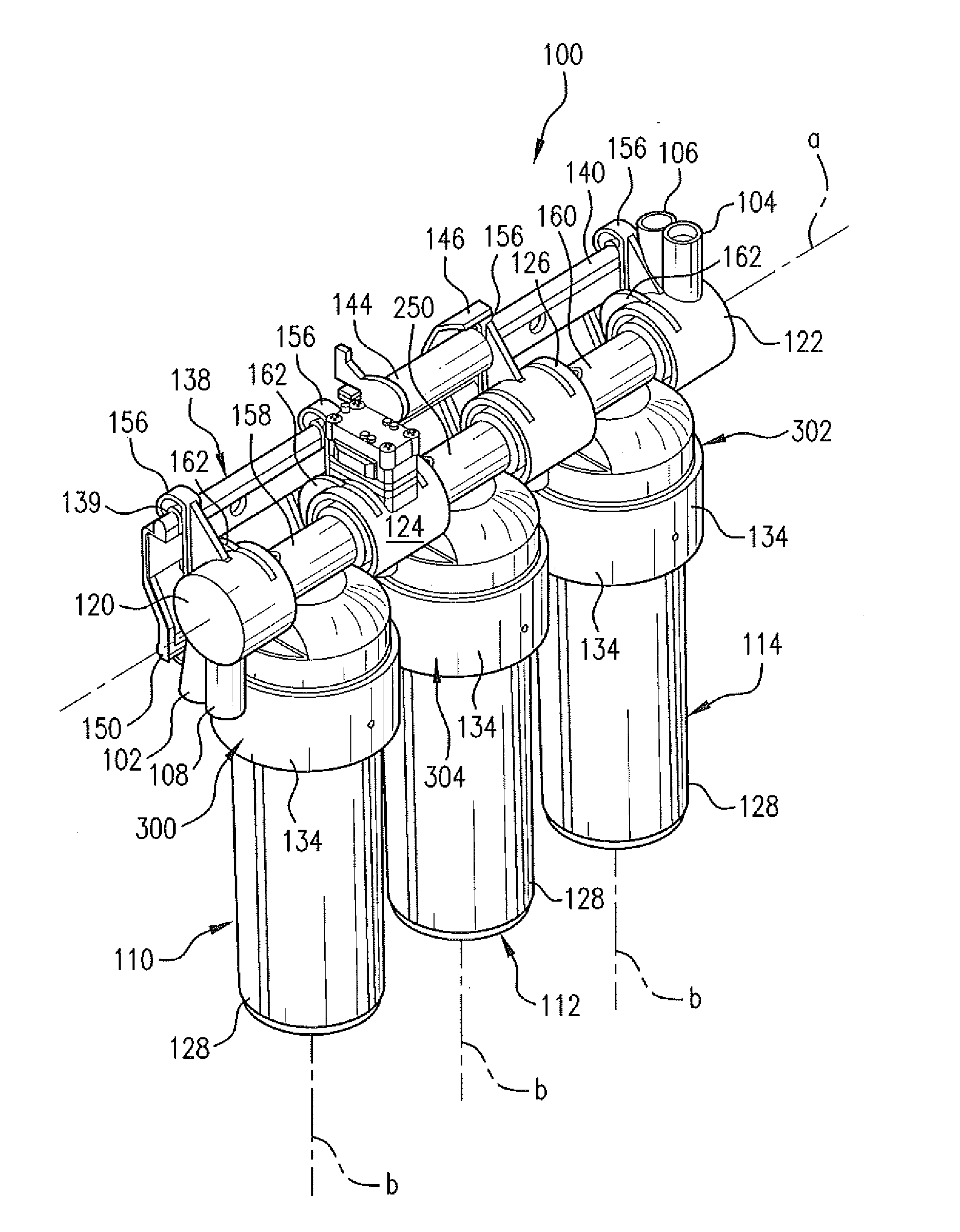

A filter head including a lid extending along a central axis. The lid includes a filter bowl receptacle positioned coaxially about the central axis, a central receptacle positioned coaxially within the filter bowl receptacle, and an intermediate receptacle positioned coaxially between the central receptacle and the filter bowl receptacle. A conduit portion connects to the lid and extends along another axis that is normal to the central axis of the lid. The conduit portion includes a first pathway extending between the first end and the filter bowl receptacle, a second pathway extending between the first end and the central receptacle, a third pathway extending between the second end and the central receptacle, and a fourth pathway extending between the second end and the intermediate receptacle. Couplings allow the filter head to be pivoted about the central axis of the conduit portion.
First Claim
Other Claims data not available
