SILICON INKS FOR THIN FILM SOLAR CELL FORMATION, CORRESPONDING METHODS AND SOLAR CELL STRUCTURES
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 26, 2011
app pub date -
Sep 21, 2010
filing date -
Sep 21, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

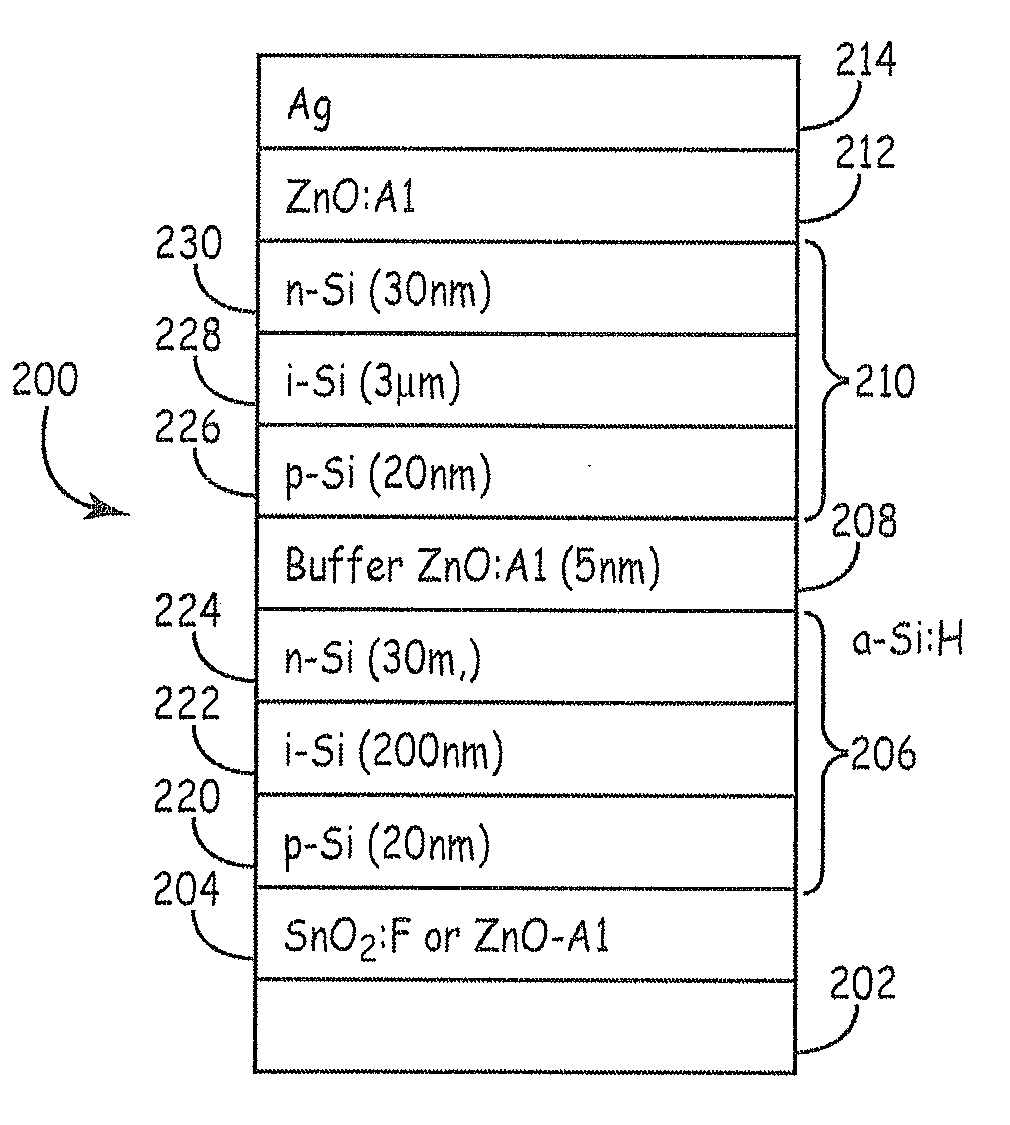

High quality silicon inks are used to form polycrystalline layers within thin film solar cells having a p-n junction. The particles deposited with the inks can be sintered to form the silicon film, which can be intrinsic films or doped films. The silicon inks can have a z-average secondary particle size of no more than about 250 nm as determined by dynamic light scattering on an ink sample diluted to 0.4 weight percent if initially having a greater concentration. In some embodiments, an intrinsic layer can be a composite of an amorphous silicon portion and a crystalline silicon portion.
