Electric Water Pump
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 19, 2011
app pub date -
Jul 30, 2010
filing date -
Nov 19, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

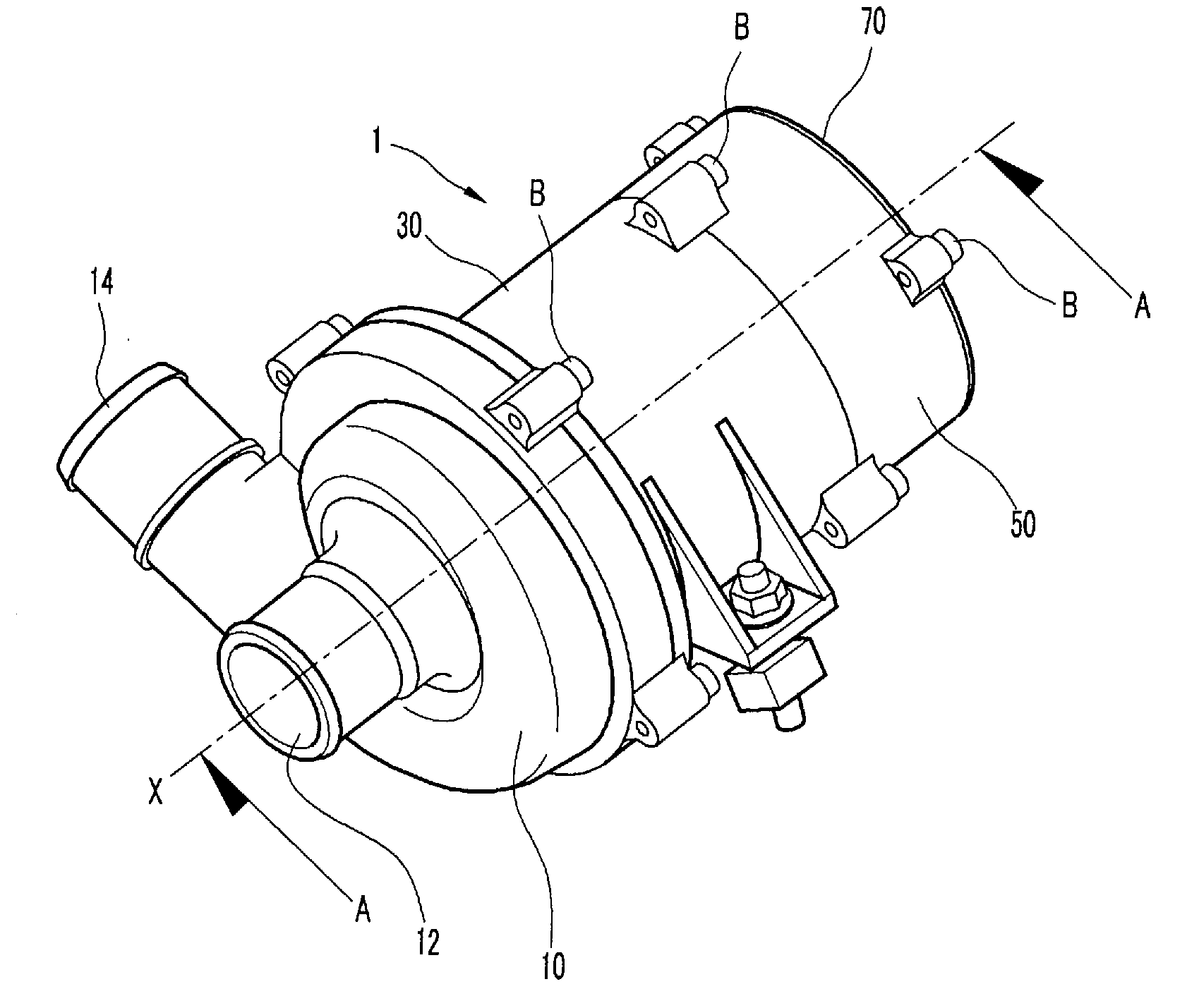

An electric water pump may include a stator generating a magnetic field, a rotor rotated by the magnetic field, a pump cover, a body having a volute chamber with the pump chamber, a stator chamber and a rotor chamber, the stator being mounted in the stator chamber and the rotor being mounted in the rotor chamber, a shaft fixed to the rotor, an impeller fixed to the shaft in the volute chamber, a driver case mounted at a rear end of the body and having a rear surface opened backward and formed of a driver chamber therein, and a driver mounted in the driver chamber and applying a control signal to the stator, wherein the case surface is provided with an insert portion protruded forward from an external circumference thereof and inserted in a rear end portion of the body, and a fixing groove in which the insert portion is inserted.
First Claim
Other Claims data not available
