Modular axle guard for compactor wheel
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 30, 2011
Grant Date -
May 19, 2011
app pub date -
Nov 17, 2009
filing date -
Nov 17, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

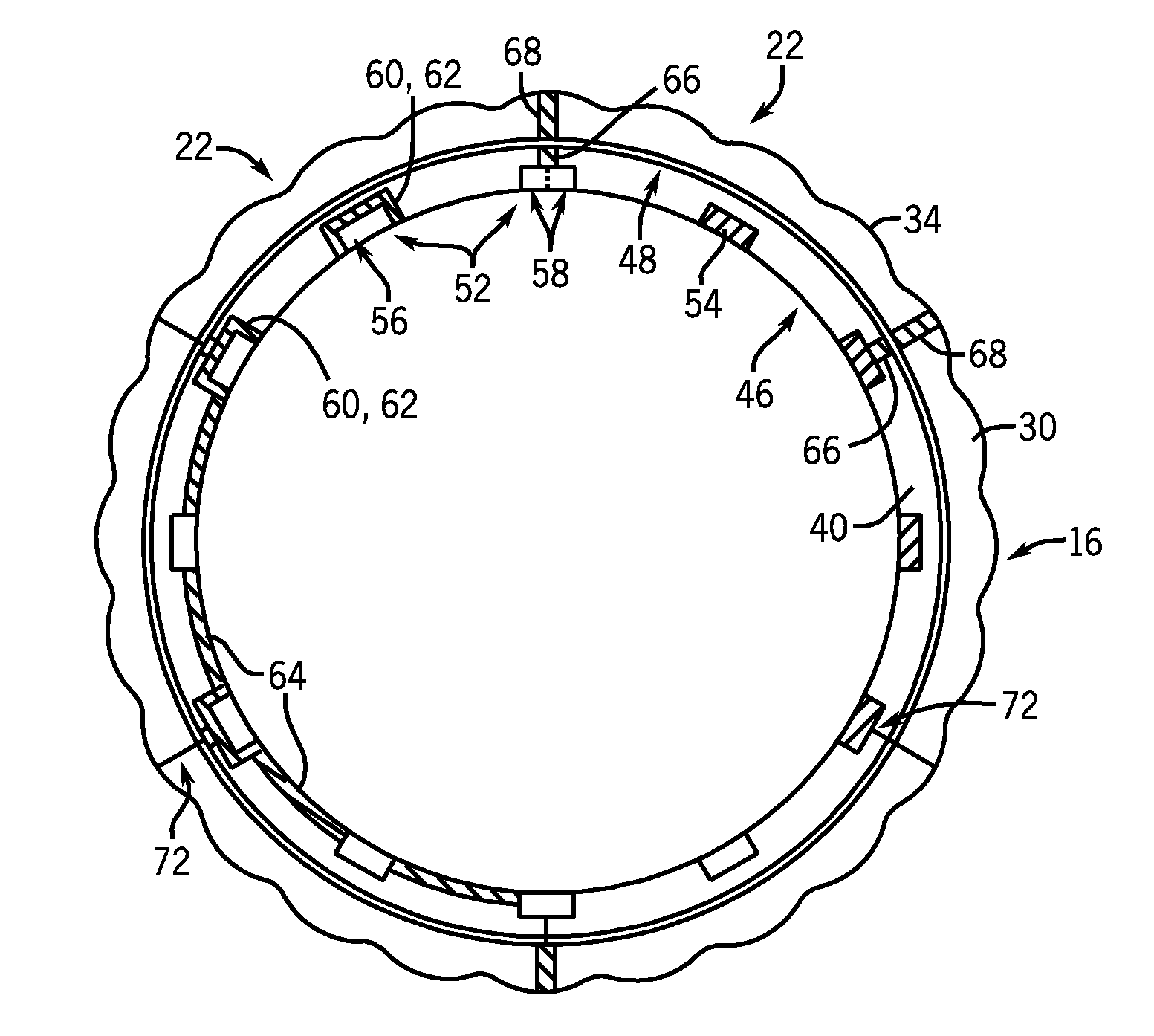

A compactor wheel is disclosed that includes a hub mountable to an axle of a compaction machine and a rim mounted around an outer circumference of the hub, with the rim having a wrapper and inner and outer circumferential edges. The compactor wheel also includes a modular axle guard positioned near the inner circumferential edge and extending outward from the wrapper, the modular axle guard having a plurality of guard modules arranged about an outer circumference of the rim. Each of the guard modules includes a pair of wedge segments affixed to the wrapper and positioned on the wrapper in a spaced apart relationship and a guard segment positioned on the wrapper and seated between the pair of wedge segments. The guard segment includes a portion that extends radially outward from the wrapper and beyond the pair of wedge segments.
First Claim
Other Claims data not available
