Parallel Condensing Unit Control System And Method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jan 18, 2011
filing date -
Dec 9, 2005
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

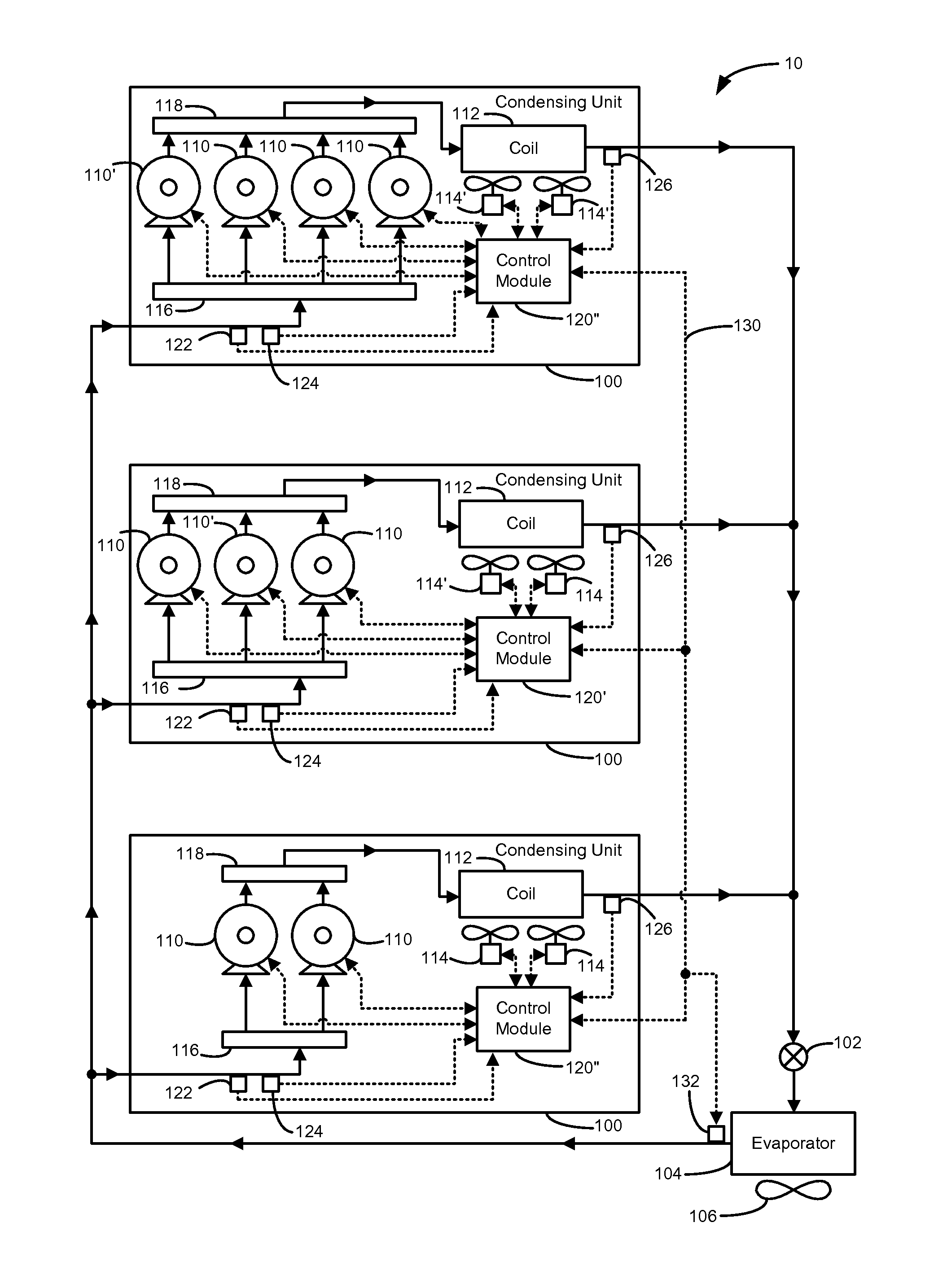

A system comprises a condenser for a refrigeration system and a control module. The condenser has a plurality of variable speed condenser fans. The control module controls the plurality of variable speed condenser fans. The control module increases condenser fan operation by activating a deactivated variable speed condenser fan at a first fan speed when at least one variable speed condenser fan of the plurality is deactivated and by increasing a fan speed of an activated variable speed condenser fan to a second fan speed when each variable speed condenser fan of the plurality is activated and operating at the first fan speed. The second fan speed is faster than the first fan speed.
First Claim
Other Claims data not available
