METHOD FOR DRAWING BELLMOUTH BY USING 3-DIMENSIONAL MEASUREMENT OF BELLMOUTH MODEL
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 5, 2011
app pub date -
Aug 21, 2008
filing date -
Aug 21, 2007
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

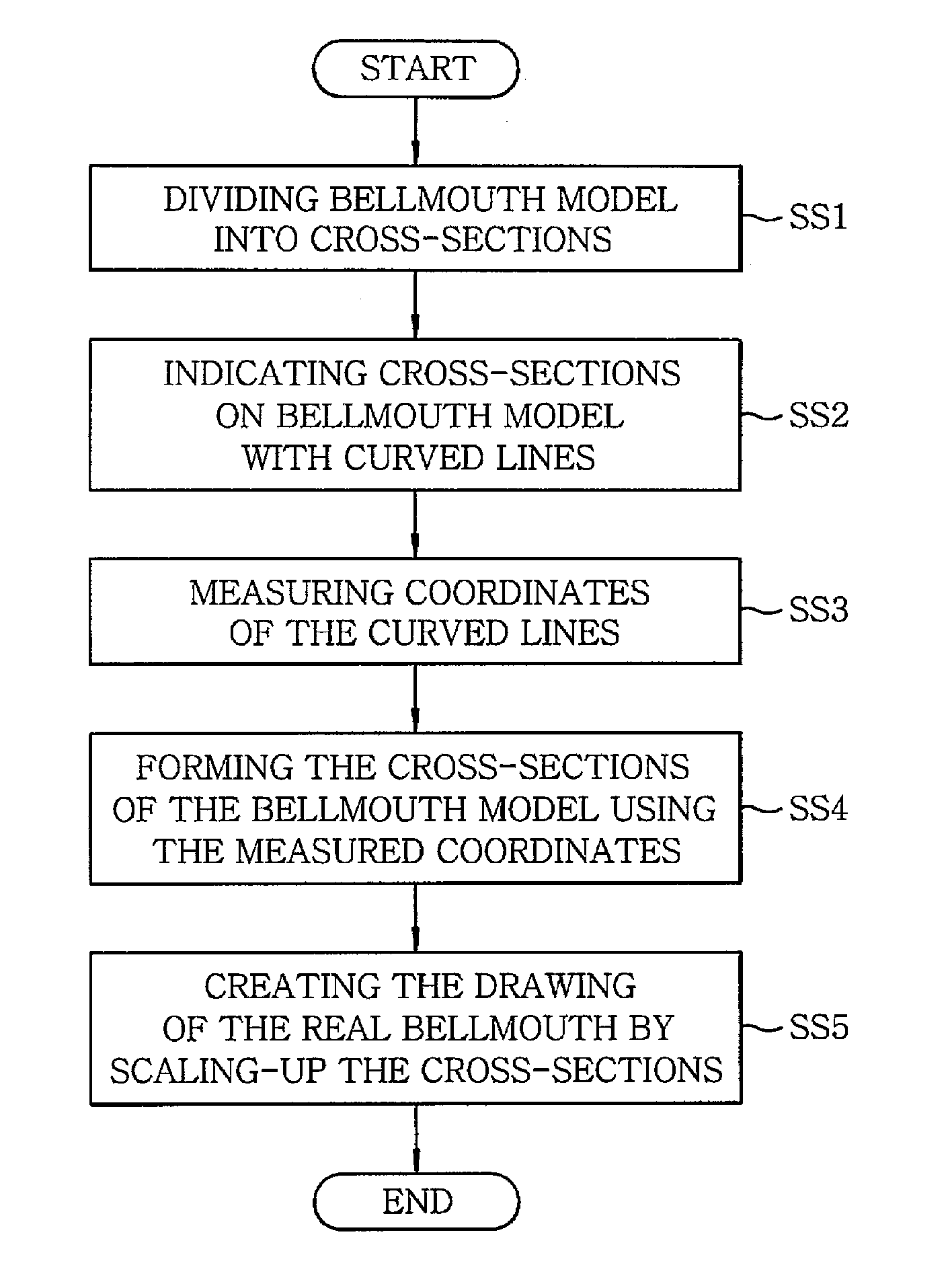

A bellmouth drawing method includes dividing a scaled-down bellmouth model from the real bellmouth into a plurality of cross-sections, indicating the cross-sections on a scaled-down bellmouth model with curved lines, measuring coordinates of the curved lines, forming cross-sections of the bellmouth model with the measured coordinates, and creating the drawing of the real bellmouth by scaling-up the cross-sectional views.
