Food processing tool
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 22, 2012
Grant Date -
Apr 28, 2011
app pub date -
Oct 27, 2009
filing date -
Oct 27, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

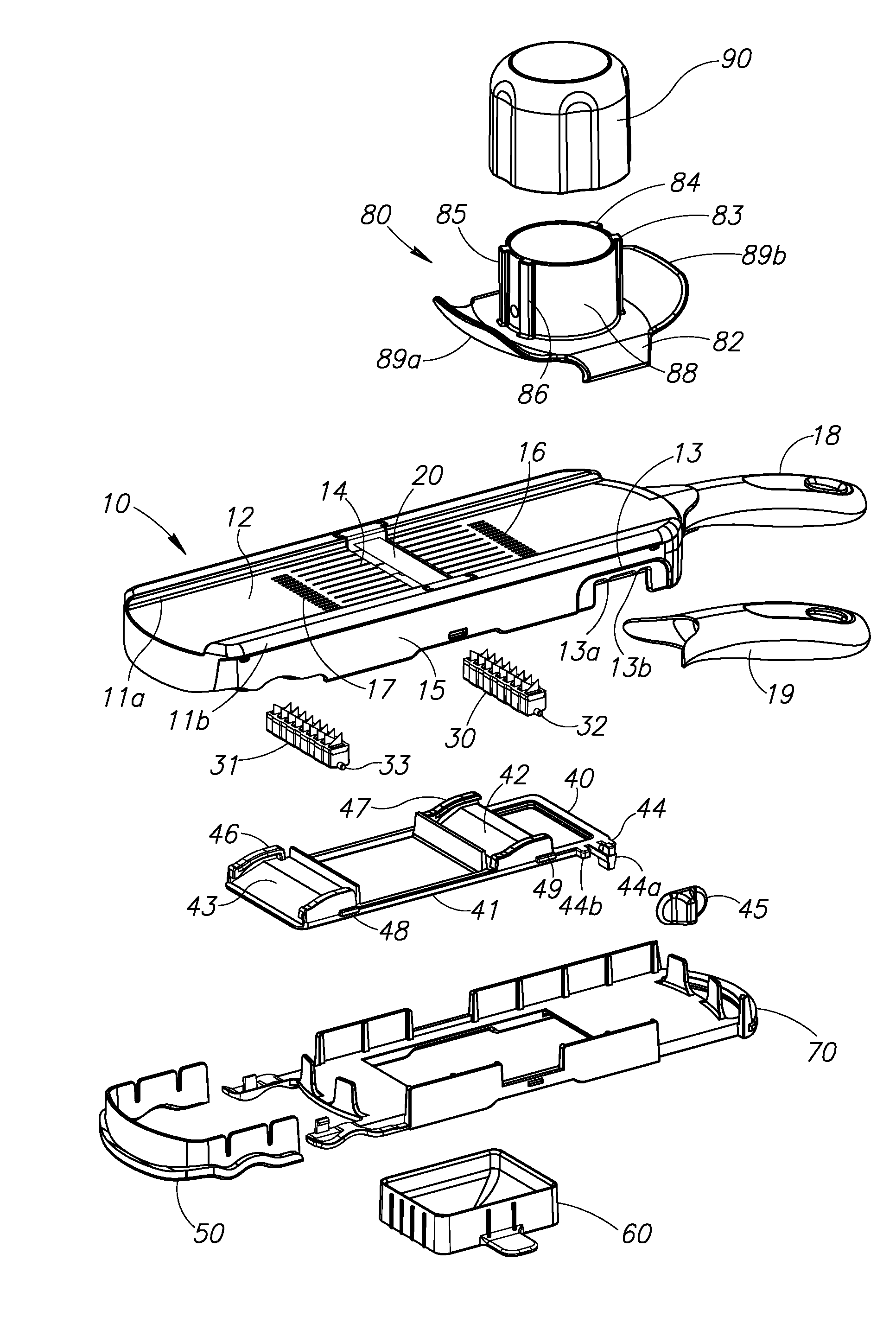

A food processing tool particularly suited for processing garlic and the like generally includes a main body having a tray configured to allow garlic to be passed back and forth across the tray for processing as desired. The main body optionally includes a pair of opposing guides positioned on opposing lateral sides of the tray and a plurality of ribs provided along either a portion or the entirety of the tray to reduce friction and improve the sliding ability of the garlic along the ribs and therefore the tray. A main slicing blade and one or more pluralities of blades are provided to slice, mince, or julienne cut the garlic. A pusher and cap is configured to selectively allow or restrict rotational movement of the cap and garlic for different orientations when cutting.
First Claim
Other Claims data not available
