METHOD AND DEVICE FOR MOUNTING FORMS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Apr 14, 2011
app pub date -
Mar 4, 2009
filing date -
Mar 4, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

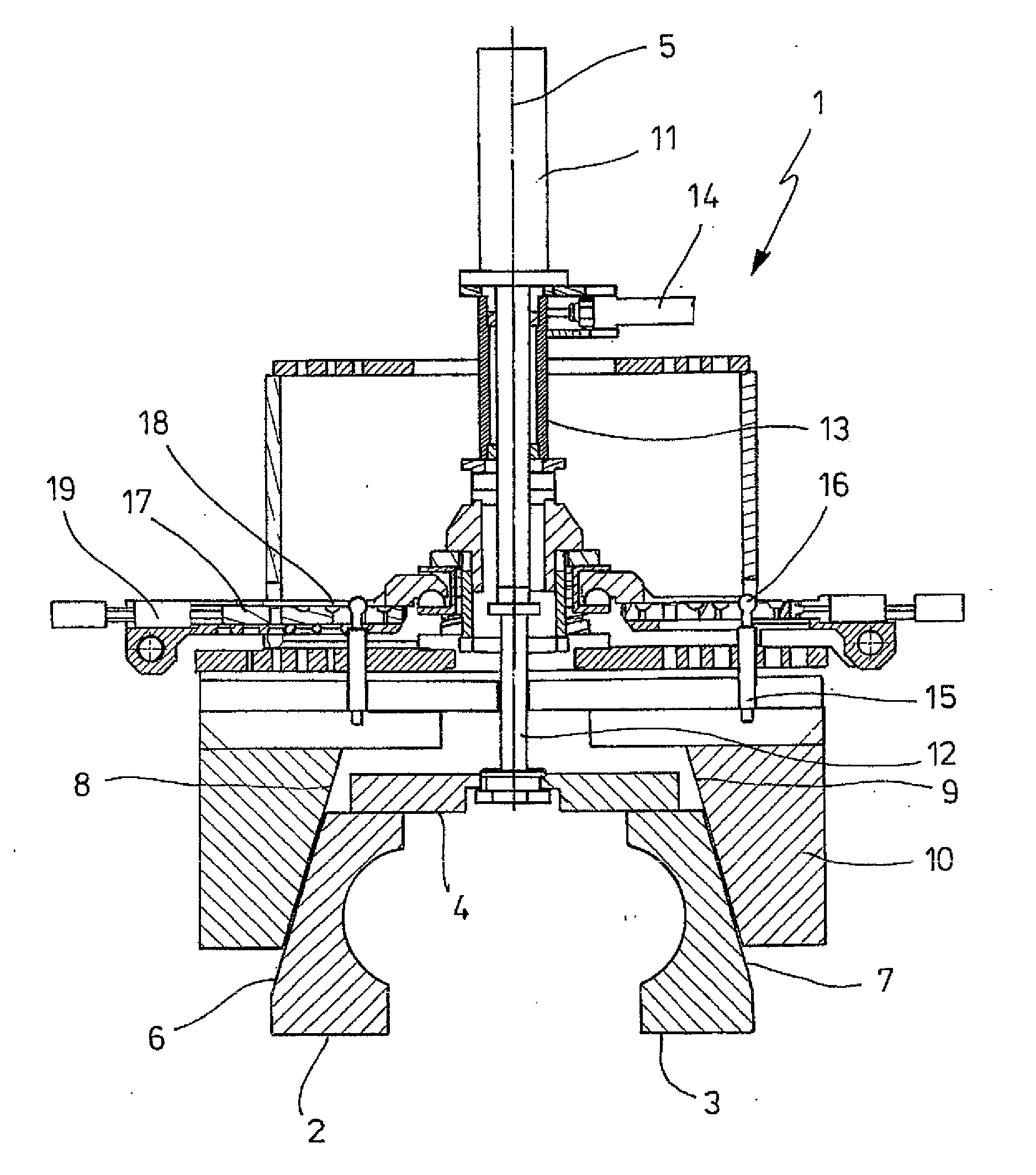

The method and the device are used for mounting forms of a heating process of tires that are produced from an elastomeric material. Form segments of the form are held detachably by a support device. Mounting pins of a guiding element supporting the form segments, said pins being provided with a mounting profile, are guided through an insertion recess of a fixation element disposed in the region of the support device. Thereafter, a locking element of the fixation element is positioned transversely to the longitudinal direction of the mounting pin and thereby locked by the mounting profile with respect to the fixation element. Before carrying out the transversal positioning of the locking element, a tensioning element, which adjusts the fixation element in a longitudinal direction of the mounting pin, is displaced against a spring force. Thereafter, the tensioning element is reset by the spring force in order to hold the mounting profile of the mounting pin in the region of the fixation element by positive fit.
First Claim
Other Claims data not available
