DUAL CHAMBER PASSIVE COOLING SYSTEM FOR LED LAMP
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Apr 14, 2011
app pub date -
Oct 7, 2010
filing date -
Oct 9, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

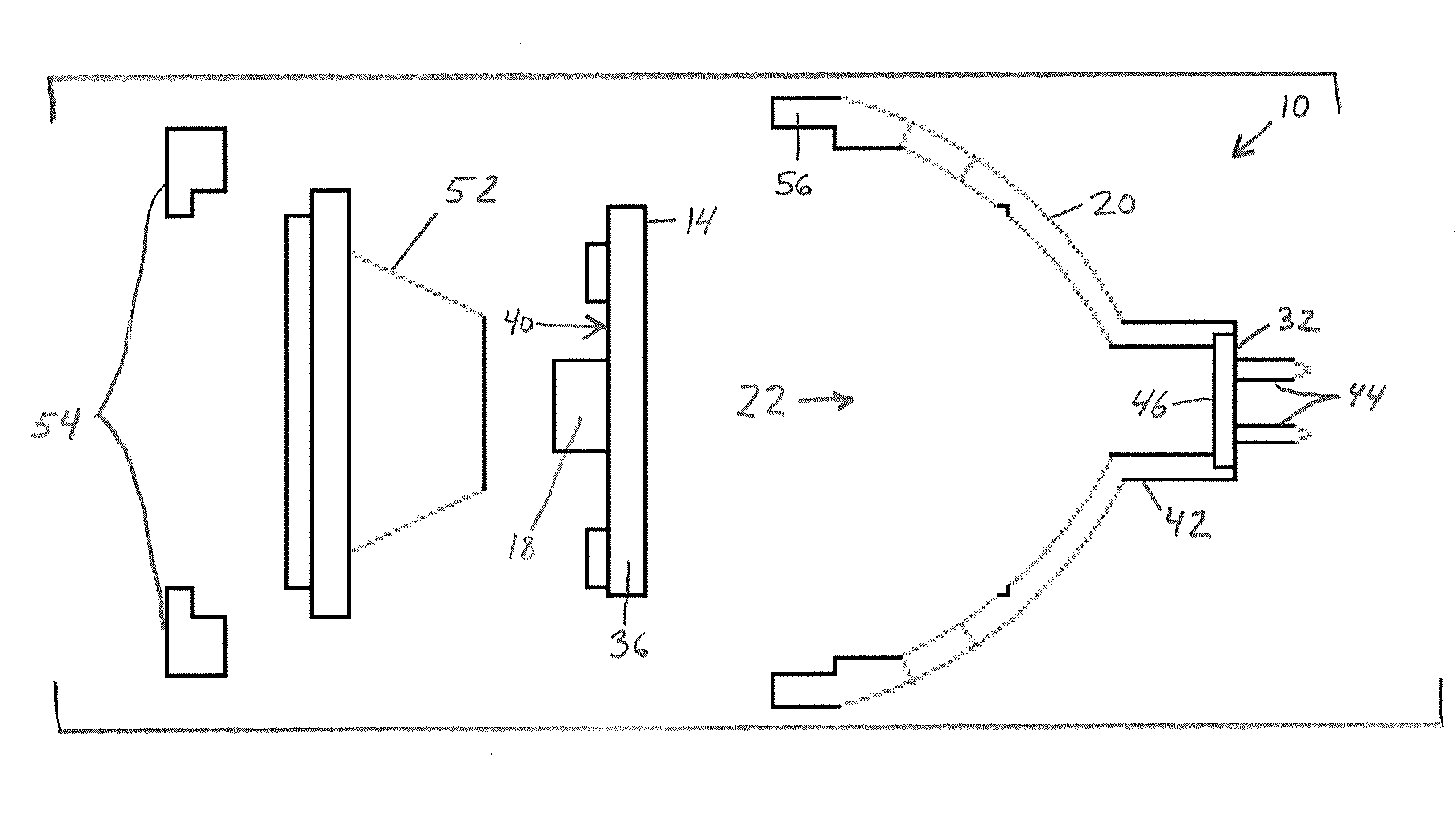

The present invention is embodied an a dual-chamber passive cooling system for a light-emitting diode (LED) lamp and in a lighting fixture comprising such a system. The system comprises a printed circuit board (PCB) having a hole formed therein and extending through the PCB, and a shell defining a recess configured to receive the PCB. An LED may be positioned on one side of the PCB. The PCB is a thermally conductive PCB, such as a metal-core or graphite-core PCB, and is positioned within the recess so that it divides the recess into a first chamber defining a first volume and a second chamber defining a second volume that is less than the first volume. The shell has a first opening formed therein proximate the first chamber and a second opening formed therein proximate the second chamber, so that air can flow into and out of the chambers, cooling the LED and PCB through convection.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F21V Class
- 3.79 % this patent is cited more than
- 14 Age
