Vending machine monitoring system and its monitoring method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 24, 2011
app pub date -
Sep 21, 2009
filing date -
Sep 21, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

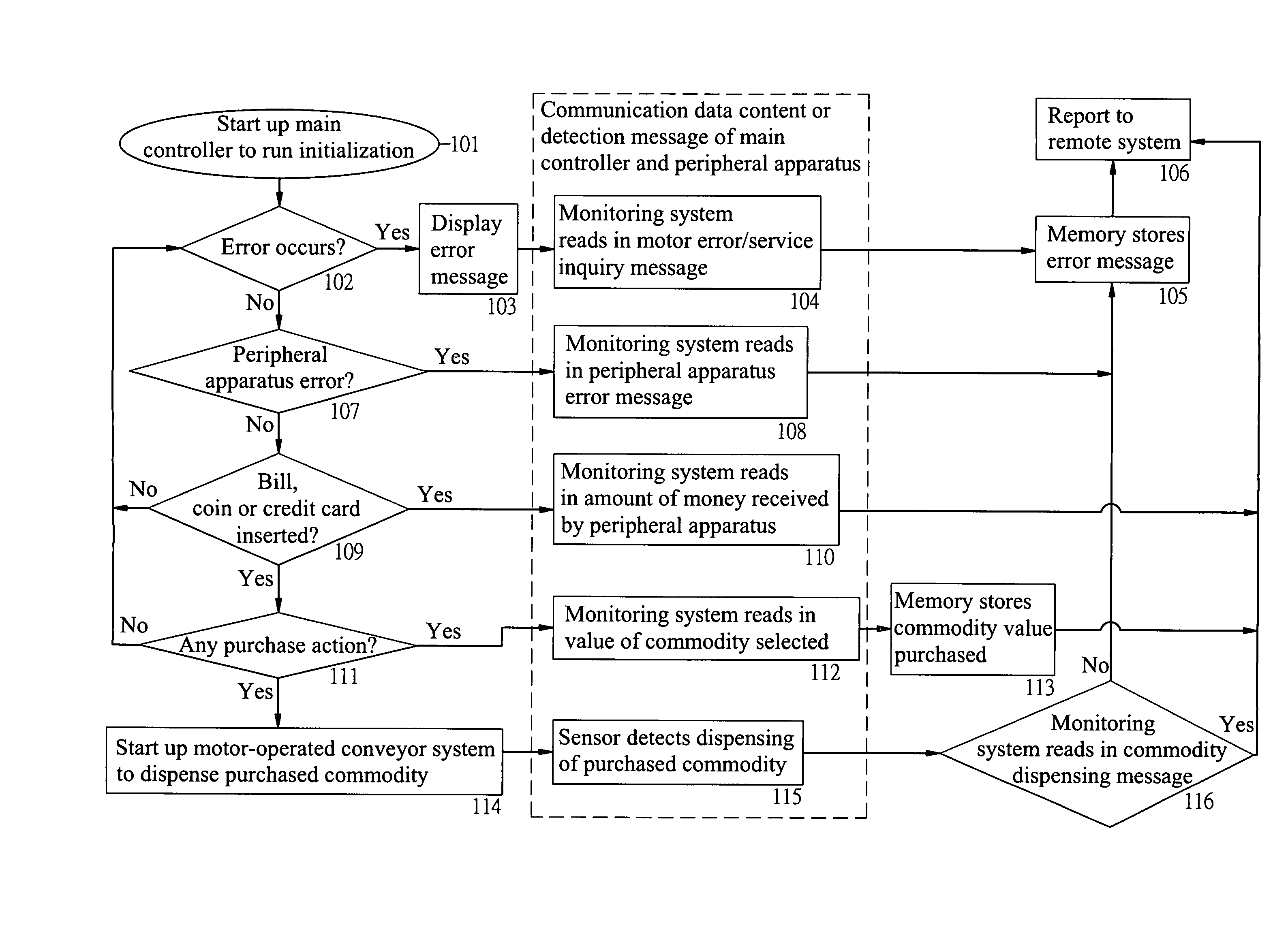

A vending machine monitoring method used in a vending machine monitoring system, which includes an automatic vending machine and a monitoring system that is attached to the automatic vending machine and uses a microprocessor to read in data signals transmitted between the main controller and peripheral apparatus (card-slide unit, bill acceptor, license recognition unit and coin slot unit) of the automatic vending machine through a connection interface, to process fetched data signals into waveform signals, to indicate any error message through an indicator light module, and to report processed waveform signals to an external remote system through a transmission module for display and further analysis and check of income.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- G06F Class
- 1.63 % this patent is cited more than
- 14 Age
