Synthetic Gas Recycle Apparatus and Methods

Number of patents in Portfolio can not be more than 2000

United States of America Patent

APP PUB NO 20110071229A1
SERIAL NO

12563800

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

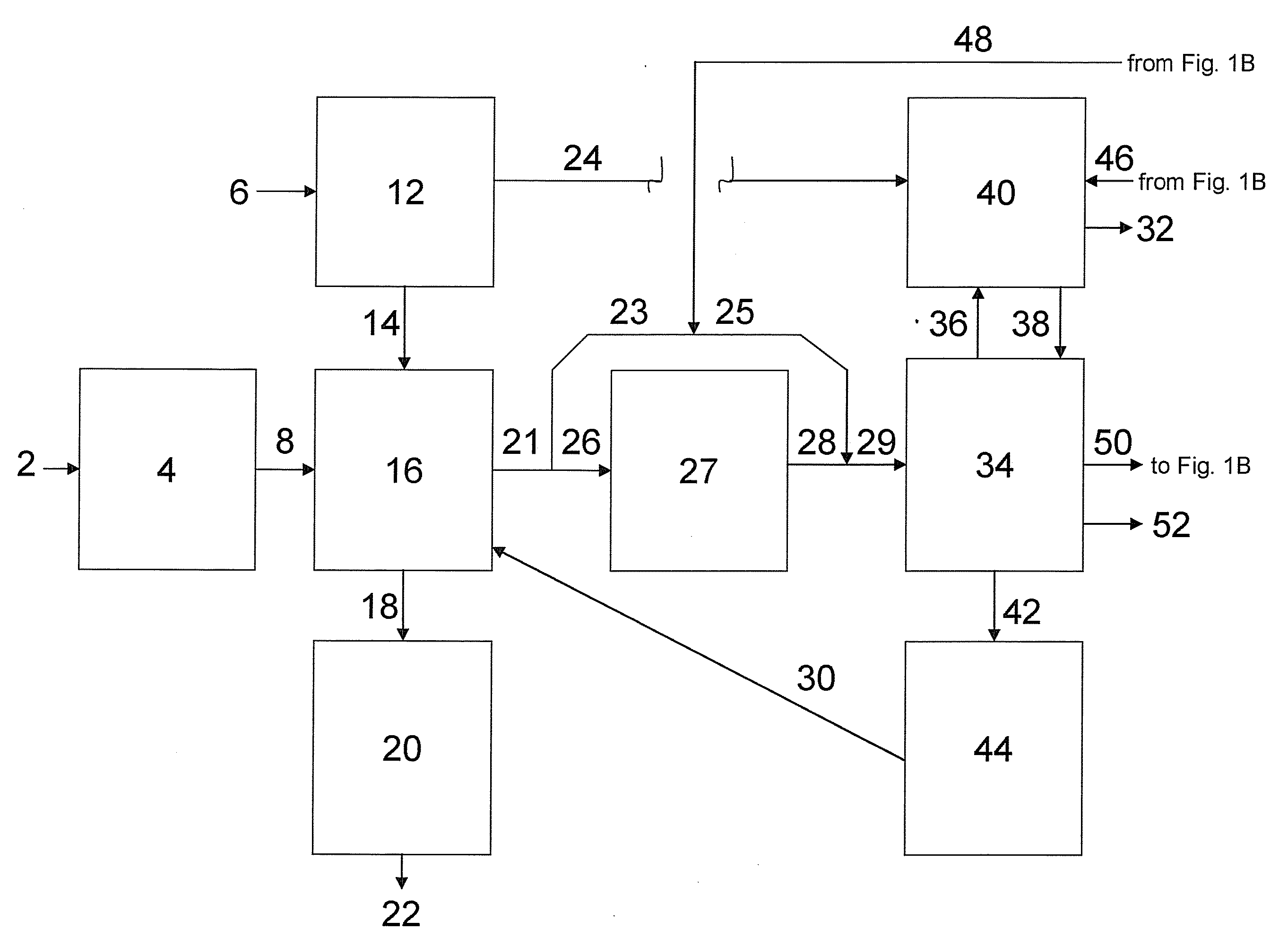

Processes and apparatuses for synthesizing a hydrocarbon by reacting a carbon-containing feedstock with an oxygen-containing gas stream having a greater molar ratio of oxygen than the feedstock to produce a first synthetic gas comprising carbon monoxide and hydrogen, reacting the first synthetic gas in a shift reaction zone to produce a shifted synthetic gas, optionally but preferably blending a recycled synthetic gas with the shifted synthetic gas to produce a second synthetic gas, reacting the second synthetic gas with a catalyst in a synthesis reaction zone to produce hydrocarbon(s) and a purge gas, passing the purge gas through a separation zone to produce a hydrogen-containing permeate stream having an increased hydrogen molar ratio compared to the purge gas and a methane-containing non-permeate stream having an increased methane molar ratio compared to the purge gas, and reacting the methane-containing non-permeate stream in a reformation zone to produce the recycled synthetic gas.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
SYNTHESIS ENERGY SYSTEMS INCTHREE RIVERWAY SUITE 300 HOUSTON TX 77056

International Classification(s)

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Liou, Gwo-Jang Abraham Sugar Land, US 2 10
Robertson, Mark K Broomfield, US 15 175
