High altitude combustion system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 24, 2012
Grant Date -
Mar 10, 2011
app pub date -
Sep 9, 2009
filing date -
Sep 9, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

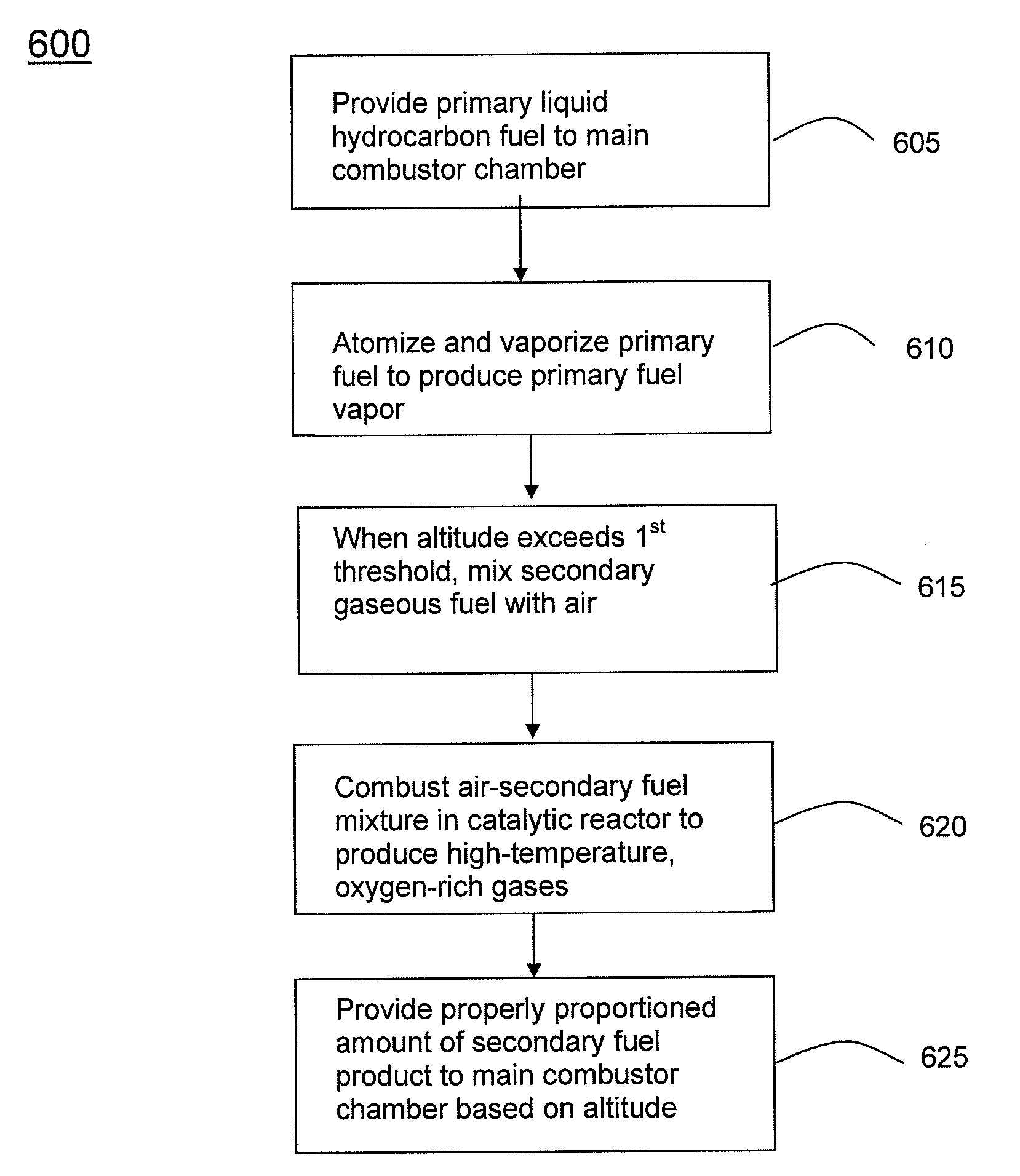

A combustion system for performing stable combustion and flame stabilization at high altitudes is described. A primary liquid hydrocarbon fuel is atomized and vaporized within the main combustor chamber to produce a primary fuel vapor. When the combustion system operates at a high altitude, a secondary gaseous fuel is fed into the inlet air port such that the secondary fuel mixes with air, thereby enabling the mixture of the air and the secondary fuel to combust in a catalytic reactor to produce high temperature, oxygen-rich gases that flow into the main combustor chamber. Proper proportional amounts of the two fuels are determined as a function of altitude.
First Claim
Other Claims data not available
