Non-Pyrotechnic Explosive Device Simulator System
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 3, 2011
app pub date -
Feb 8, 2010
filing date -
Aug 28, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

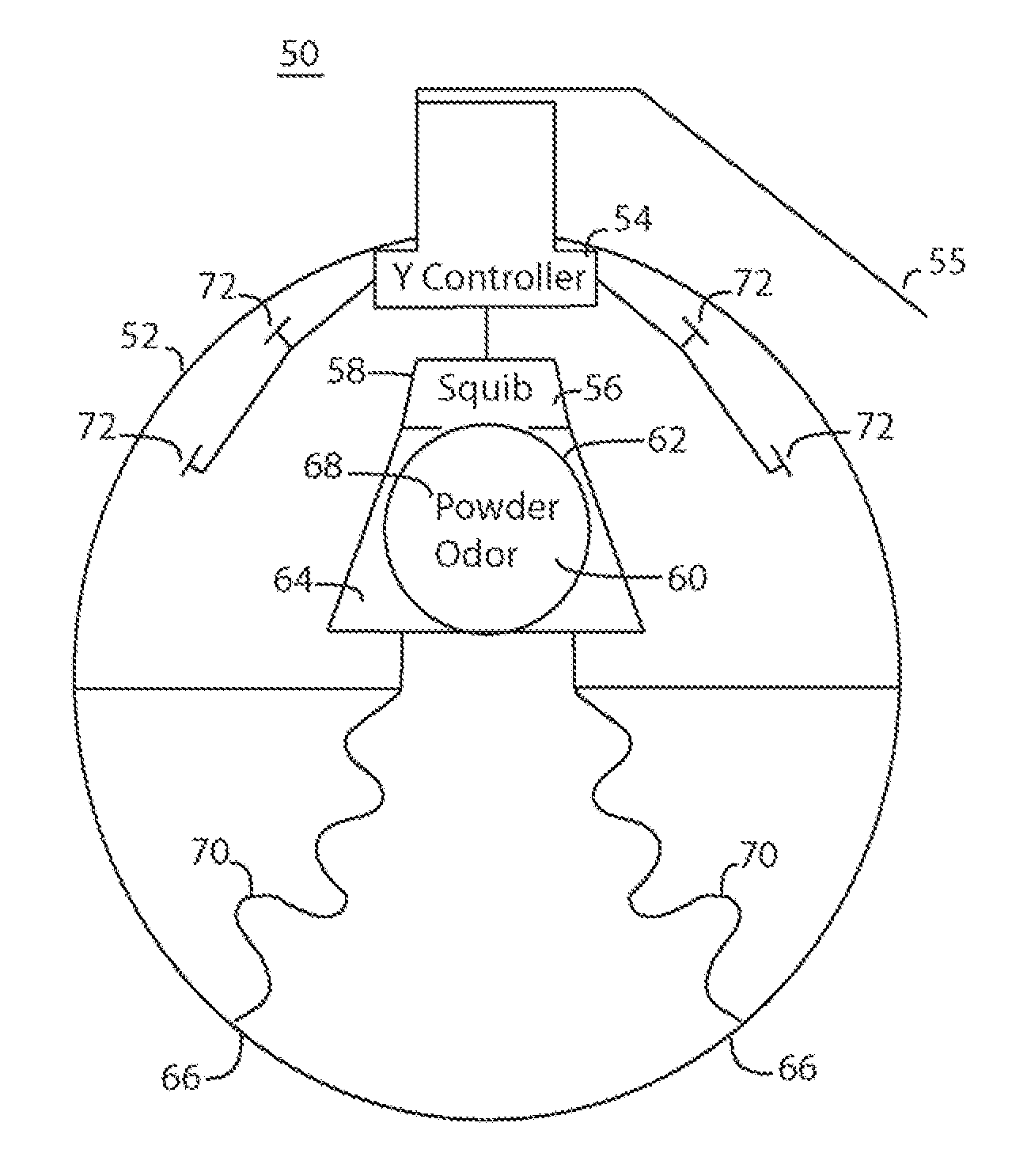

An explosive device simulator system has a housing in the shape of an explosive device. The simulator includes a sound producing system inside the housing. A light producing system inside the housing receives an actuation signal from a trigger system. The trigger system may include a microcontroller, which can be used to include a delay between a trigger event and the actuation signal. The simulator may include a smoke producing system that includes a powder that is dispersed by a gas generator. The powder exits the housing through a number of vents. A cordite odor substance may be included in the powder to provide a realistic smell of an exploded device. A light producing system provides the flash of a real explosive device and is connected to the microcontroller.
First Claim
Other Claims data not available
