Recoil starter
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 31, 2013
Grant Date -
Mar 3, 2011
app pub date -
Aug 25, 2010
filing date -
Aug 29, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

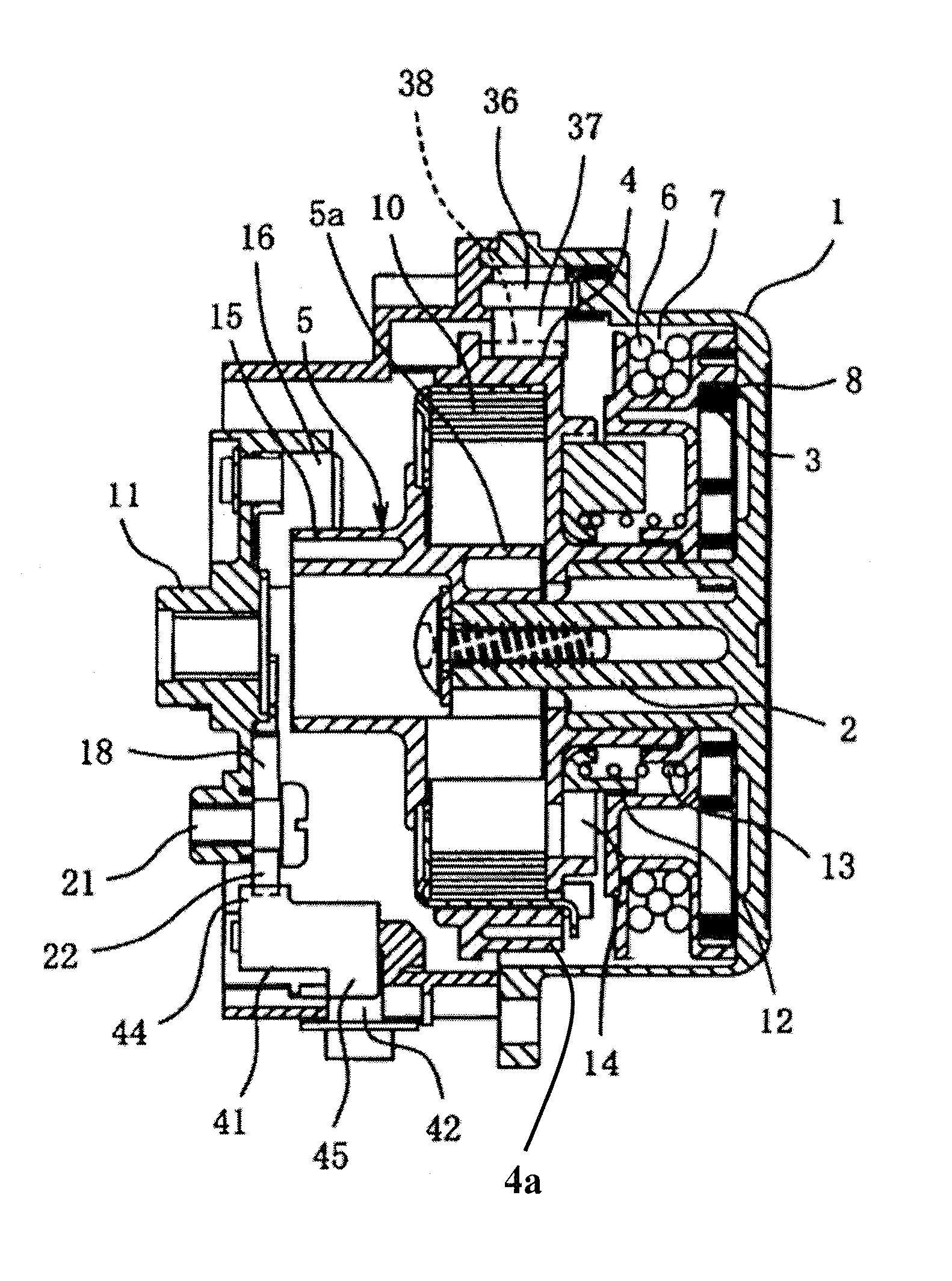

One of the embodiments provides a starter including: a starter case; a rotational torque applying unit; a torque-accumulation spring; a rotating member; a driving pulley; and a rotation regulating mechanism including: a regulating ratchet provided on the driving pulley or the rotating member at a position shifted from a rotation center thereof; and a pressing unit provided on the starter case and urged by a given resilient pressing force to be engaged with the regulating ratchet, wherein, when the rotational torque accumulated in the torque-accumulation spring exceeds the given resilient pressing force, the driving pulley or the rotating member urges back the pressing unit via the regulating ratchet so that the regulating ratchet is disengaged from the pressing unit, to thereby release the rotational torque.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- F02N Class
- 186 Applications Filed
- 136 Patents Issued To-Date
- 73.12 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F02N Class
- 4.17 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 30, 2025 |
